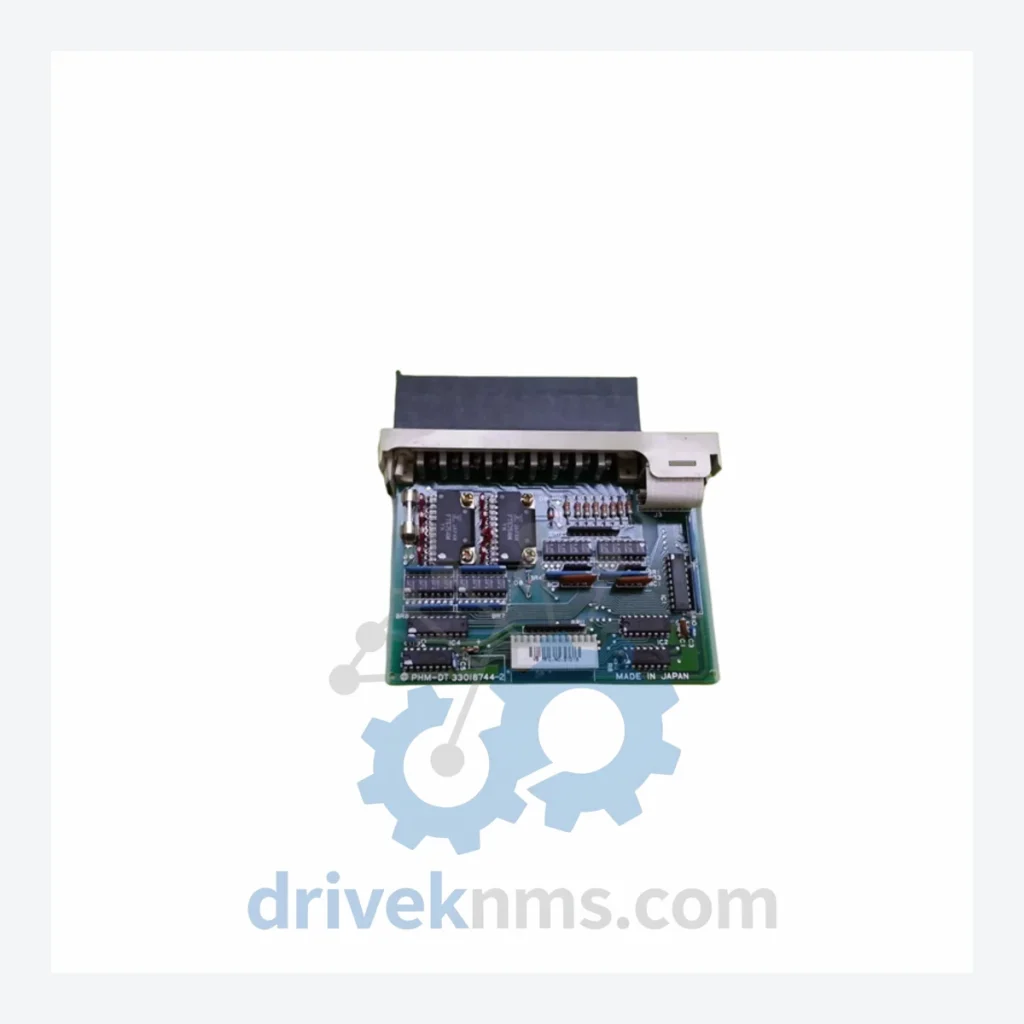

Hitachi PHM-DT Modules: PHM-DT 33018744-2

Technical Dossier

Product Details And Specifications

Hitachi PHM-DT Series: Comprehensive Module Range and Technical Overview

The Hitachi PHM-DT series represents a core family of PCB-based control and I/O modules deployed across heavy industrial installations worldwide, including petrochemical complexes, nuclear power auxiliary systems, steel rolling mills, and offshore refinery platforms. These modules form the backbone of Hitachi's distributed control architecture, providing deterministic signal processing, high-noise-immunity backplane communication, and long-cycle operational stability demanded by continuous-process industries. Installed base density is particularly high across East Asian and Southeast Asian industrial zones, where Hitachi DCS infrastructure has been the platform of choice for multi-decade plant lifecycles. The PHM-DT designation covers a range of printed circuit board assemblies engineered for slot-based rack mounting within Hitachi control cabinets, with each module performing a discrete functional role within the overall control loop.

The Evolution of PHM-DT Architecture

The PHM-DT series was developed as part of Hitachi's modular DCS expansion strategy during the late 1980s and through the 1990s, targeting process industries requiring high channel density and deterministic scan times. Early-generation PHM-DT boards used through-hole component construction with discrete logic ICs, making field-level component repair feasible. Mid-generation revisions introduced surface-mount technology (SMT) layouts, increasing functional density per board while reducing physical footprint. Later revisions incorporated ASIC-based bus controllers to improve backplane throughput and reduce inter-module latency.

Compatibility across PHM-DT generations is constrained by backplane bus revision levels. Modules from different hardware generations may share the same rack slot form factor but require matching firmware revisions in the host controller to operate correctly. Plants that have undergone partial modernization frequently encounter mixed-generation compatibility issues, particularly when replacing failed boards with new-old-stock (NOS) units sourced from the secondary market. The PHM-DT series as a whole has entered the mature-to-declining phase of its product lifecycle. Hitachi has transitioned current DCS offerings to successor platforms, and PHM-DT modules are no longer manufactured under standard production runs. Long-term maintenance of PHM-DT-equipped plants now depends entirely on secondary market sourcing, refurbished unit availability, and specialist repair services.

PHM-DT Full Catalog & Functionalities (SKU List)

The following SKUs represent verified models within the Hitachi PHM-DT series, organized by functional category. Each entry reflects a discrete board assembly with a defined role within the Hitachi DCS rack architecture.

Controller & Processor Modules

• PHM-DT 33018744-2: Main PCB card assembly for rack-mounted DCS control node
• PHM-DT 33018744-1: Earlier revision of primary control PCB, predecessor to -2 variant
• PHM-DT 33018745-1: Secondary processor board for redundant CPU configuration
• PHM-DT 33018746-1: System controller PCB with integrated watchdog timer circuit
• PHM-DT 33018747-2: Enhanced controller board with expanded onboard RAM allocation

Analog I/O Modules

• PHM-DT 33018750-1: 8-channel analog input module, 4–20 mA signal range
• PHM-DT 33018751-1: 16-channel analog input PCB with differential input configuration
• PHM-DT 33018752-2: 8-channel analog output module, 0–10 V and 4–20 mA selectable
• PHM-DT 33018753-1: High-resolution analog input board, 16-bit ADC per channel
• PHM-DT 33018754-1: Analog output expansion PCB for multi-loop control applications

Digital I/O Modules

• PHM-DT 33018760-1: 32-channel digital input module, 24 VDC logic level
• PHM-DT 33018761-2: 32-channel digital output PCB, relay-isolated output configuration
• PHM-DT 33018762-1: 16-channel DI/DO mixed module for compact panel installations
• PHM-DT 33018763-1: High-speed digital input board for pulse counting and encoder feedback

Communication & Power Modules

• PHM-DT 33018770-1: Backplane communication adapter PCB, RS-485 bus interface
• PHM-DT 33018771-1: Network interface module for Hitachi proprietary fieldbus protocol
• PHM-DT 33018780-1: Rack power distribution board, 24 VDC regulated output
• PHM-DT 33018781-2: Redundant power supply PCB with automatic switchover logic

Sourcing Hard-to-Find & Obsolete PHM-DT Parts

DriveKNMS maintains an active procurement network specifically structured to support end-of-life Hitachi DCS platforms including the PHM-DT series. As Hitachi has discontinued standard production of these modules, plant operators and maintenance engineers face two primary sourcing challenges: locating physically intact units and verifying functional integrity before installation in live control systems.

DriveKNMS addresses both challenges through a combination of global secondary market access and in-house technical evaluation. Stock is sourced from decommissioned plant equipment, authorized surplus channels, and long-term storage inventories maintained by industrial distributors in Japan, Europe, and North America. Each unit is catalogued by part number, hardware revision, and physical condition grade before entering the DriveKNMS inventory. For PHM-DT modules that are confirmed obsolete with no available replacement stock, DriveKNMS offers board-level repair assessment as an alternative to full replacement, extending the operational life of installed units without requiring system-level reconfiguration.

Customers operating PHM-DT-equipped systems are advised to establish a strategic spare parts buffer covering critical controller and I/O modules. DriveKNMS can assist in developing a recommended spare parts list (RSL) based on installed module types and historical failure rate data for the PHM-DT series.

Quality Control for the PHM-DT Range

PHM-DT modules present specific quality verification challenges due to their backplane-dependent communication architecture and multi-layer PCB construction. Standard visual inspection and basic continuity testing are insufficient to confirm functional integrity for these boards. DriveKNMS applies a structured evaluation protocol to all PHM-DT units processed through its facility.

Each board undergoes visual inspection under magnification for solder joint integrity, capacitor condition, corrosion on edge connectors, and physical damage to SMT components. Boards passing visual inspection proceed to powered functional testing using Hitachi-compatible rack test fixtures that replicate the backplane bus environment. Communication handshake verification confirms that the module correctly initializes and responds to controller polling sequences. Analog I/O modules are tested against calibrated signal sources and loads to verify channel accuracy within published tolerance bands. Digital I/O modules are tested for correct switching logic, isolation resistance, and output drive capability. Modules that pass all test stages are issued a DriveKNMS functional verification record and are eligible for warranty coverage on outgoing shipments.
