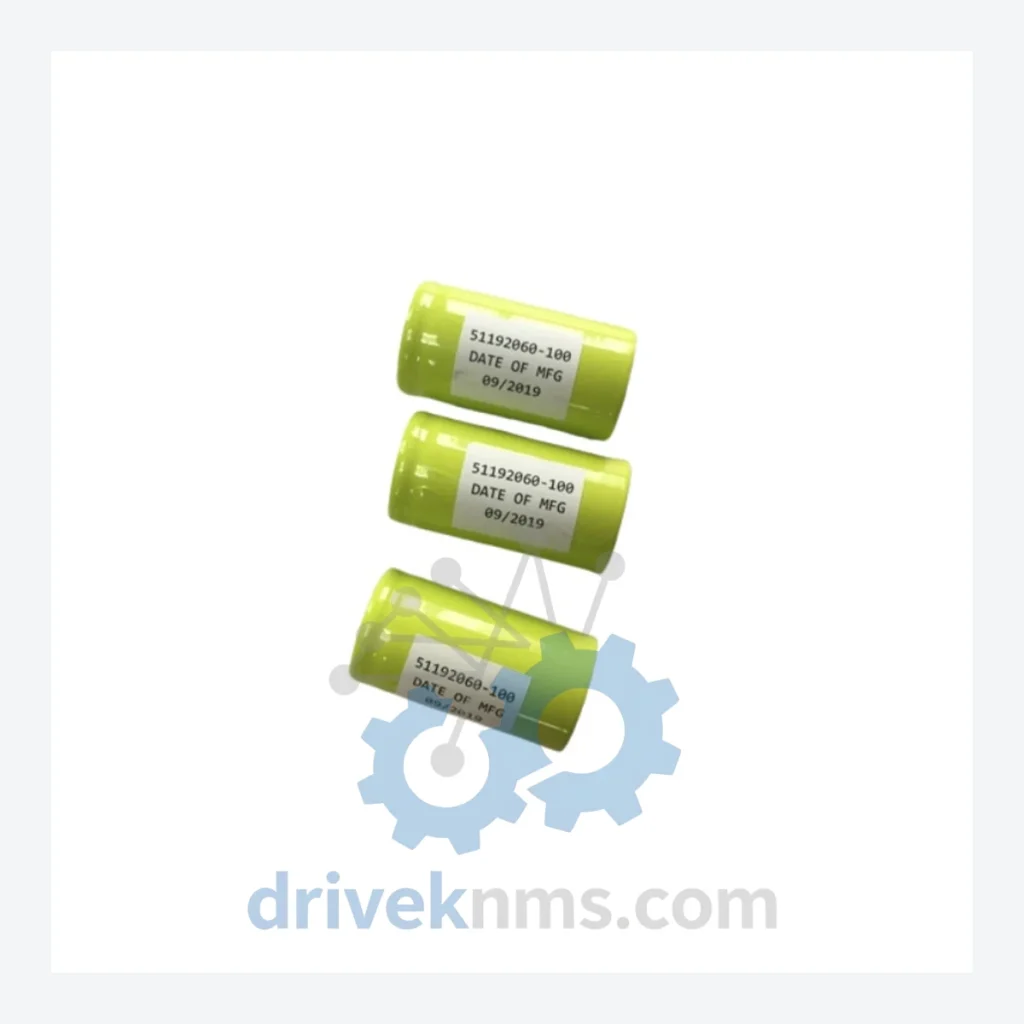

Honeywell 51192060-100 Storage Battery

Technical Dossier

Product Details And Specifications

Honeywell FSC Series Technical Notes

The Honeywell Fail Safe Controller (FSC) series is a dedicated safety instrumented system (SIS) platform deployed across global heavy industry — including petrochemical refineries, nuclear power stations, offshore platforms, and large-scale chemical processing facilities. Certified to IEC 61508 SIL 2/3, the FSC architecture provides redundant, fault-tolerant control with deterministic scan cycles. The 51192060-100 is the internal storage battery module responsible for maintaining SRAM data retention and real-time clock continuity during power interruptions, making it a critical lifecycle consumable for any FSC installation.

The Evolution of FSC Architecture

Honeywell introduced the FSC platform in the early 1990s as a standalone SIL-certified safety controller, distinct from the process control TDC 3000 / TPS (Total Plant Solution) environment. Early FSC hardware (FSC 100 series) used proprietary backplane communication with parallel I/O buses. The mid-generation FSC 200 series introduced redundant CPU configurations and expanded the I/O module count per rack. The current FSC 300 series supports Ethernet-based engineering workstation connectivity and integrates with Honeywell's Safety Manager SC (SMSC) migration path.

Compatibility across generations is constrained by backplane revision and firmware version. Modules from the FSC 100 series are generally not hot-swappable into FSC 200 racks without backplane adapter kits. Battery modules such as the 51192060-100 are generation-specific and must be matched to the correct CPU board revision. As the FSC platform has entered its mature/end-of-life phase, Honeywell no longer manufactures new FSC hardware; long-term maintenance support is now the primary procurement driver for this series.

FSC Series Full Catalog & Functionalities (SKU List)

CPU & Controller Modules

• 51196656-100: FSC Central Processing Unit, primary CPU module for FSC 200/300 racks
• 51196656-175: FSC CPU module, enhanced firmware revision for SIL 3 applications
• 51309288-175: FSC High-Integrity CPU, dual-redundant processing with self-diagnostics
• 51304453-150: FSC Processor Module, compatible with 14-slot main rack configurations

Digital Input (DI) Modules

• 51196653-100: 24 VDC Digital Input module, 16-channel, field-side isolated
• 51196653-175: 24 VDC Digital Input module, enhanced diagnostics revision
• 51309276-175: 120 VAC Digital Input module, 8-channel, surge-protected
• 51304441-150: High-density DI module, 32-channel, 24 VDC, for expanded I/O racks

Digital Output (DO) Modules

• 51196654-100: 24 VDC Digital Output module, 8-channel, relay-driven
• 51309277-175: 120 VAC Digital Output module, 8-channel, solid-state
• 51304442-150: High-density DO module, 16-channel, 24 VDC

Analog Input (AI) Modules

• 51196655-100: Analog Input module, 8-channel, 4–20 mA, 12-bit resolution
• 51309278-175: Analog Input module, 8-channel, HART-enabled, 16-bit resolution

Power Supply & Battery Modules

• 51192060-100: Storage Battery module — SRAM data retention and RTC backup for FSC CPU racks
• 51196652-100: FSC Power Supply module, 24 VDC input, rack-mounted
• 51309275-175: Redundant Power Supply module, dual-feed, auto-switchover

Communication & Network Modules

• 51304447-150: FSC Communication Interface module, RS-485 / Modbus RTU
• 51309284-175: FSC Ethernet Communication module, 10/100 Mbps, IEC 61784 compliant
