Honeywell 51305419-100 Industrial Computer Cable

Technical Dossier

Product Details And Specifications

Honeywell TDC3000 / Experion Series: Comprehensive Module Range and Technical Overview

The Honeywell TDC3000 (Total Distributed Control) platform and its successor Experion PKS (Process Knowledge System) represent one of the most widely deployed distributed control architectures in global heavy industry. Installed across petrochemical complexes, nuclear power facilities, LNG terminals, and continuous-process refineries, this platform has accumulated decades of field hours in environments where unplanned downtime carries costs measured in millions of dollars per hour. The cable and interconnect layer — including the 51305419-100 — is a foundational component of this architecture. These cables carry critical backplane communication, I/O marshalling, and controller-to-field device signals. Their failure or unavailability is not a minor inconvenience; it is a production-stopping event.

DriveKNMS maintains dedicated inventory of Honeywell TDC3000 and Experion PKS cables, modules, and accessories to support facilities that cannot — or choose not to — migrate to newer platforms on a vendor-driven timeline.

📩 Looking for a specific TDC3000 / Experion model? Send your list to: sale@driveknms.com | WhatsApp: +86 18359293191

The Evolution of TDC3000 / Experion PKS Architecture

The TDC3000 platform was introduced by Honeywell in the early 1980s as a successor to the TDC2000, establishing a hierarchical, network-based control architecture at a time when most competitors still relied on point-to-point pneumatic or analog wiring. Its Local Control Network (LCN) and Universal Control Network (UCN) became industry reference designs.

Key architectural generations:

• TDC3000 Classic (1983–1995): LCN-based, AM/HM/NIM modules, coaxial backplane cabling. Many sites still operate this generation.
• TDC3000 with HPM (1990s): High-Performance Process Manager introduced, UCN expanded, FTA (Field Termination Assembly) cabling standardized.
• Experion PKS R100–R200 (2000s): Ethernet-based supervisory layer introduced, C200/C300 controllers added, backward compatibility with TDC3000 I/O maintained via FIM and ENIM modules.
• Experion PKS R400–R520 (2010s–present): Virtualization support, HART pass-through, Series C I/O. Legacy TDC3000 hardware remains supported via migration kits but is no longer manufactured.

The cable assembly 51305419-100 belongs to the interconnect layer that spans multiple generations of this architecture. Its physical and electrical specifications were designed for long-term field stability, not planned obsolescence — which is precisely why sourcing genuine replacements matters when a cable fails after 15–25 years of service.

TDC3000 / Experion PKS Full Catalog & Functionalities (SKU List)

The following SKUs represent commonly referenced components across the TDC3000 and Experion PKS platform. All are available for inquiry through DriveKNMS.

Controllers & Processors

• 51304485-100: High-Performance Process Manager (HPM) main controller module
• 51304485-150: HPM controller, enhanced memory variant
• 51401288-100: C200 Process Controller, Experion PKS generation
• 51401288-200: C200E Enhanced Process Controller with expanded I/O capacity
• 51304516-100: Application Module (AM) for TDC3000 LCN supervisory layer

I/O Modules – Analog & Digital

• 51304754-150: Analog Input module, 16-channel, 4–20 mA, HART-capable
• 51304754-200: Analog Input module, 32-channel high-density variant
• 51304362-100: Analog Output module, 8-channel, 4–20 mA
• 51308385-175: Digital Input module, 32-channel, 24 VDC
• 51308385-200: Digital Output module, 32-channel, relay-isolated
• 51309276-150: Thermocouple Input module, 16-channel, multi-type

Communication & Network Modules

• 51304441-100: Network Interface Module (NIM), LCN coax interface
• 51401196-100: Ethernet Network Interface Module (ENIM), Experion PKS
• 51304362-200: UCN Interface module for field device network bridging
• 51190493-100: FIM4 – Fieldbus Interface Module, FOUNDATION Fieldbus H1

Cables & Interconnects

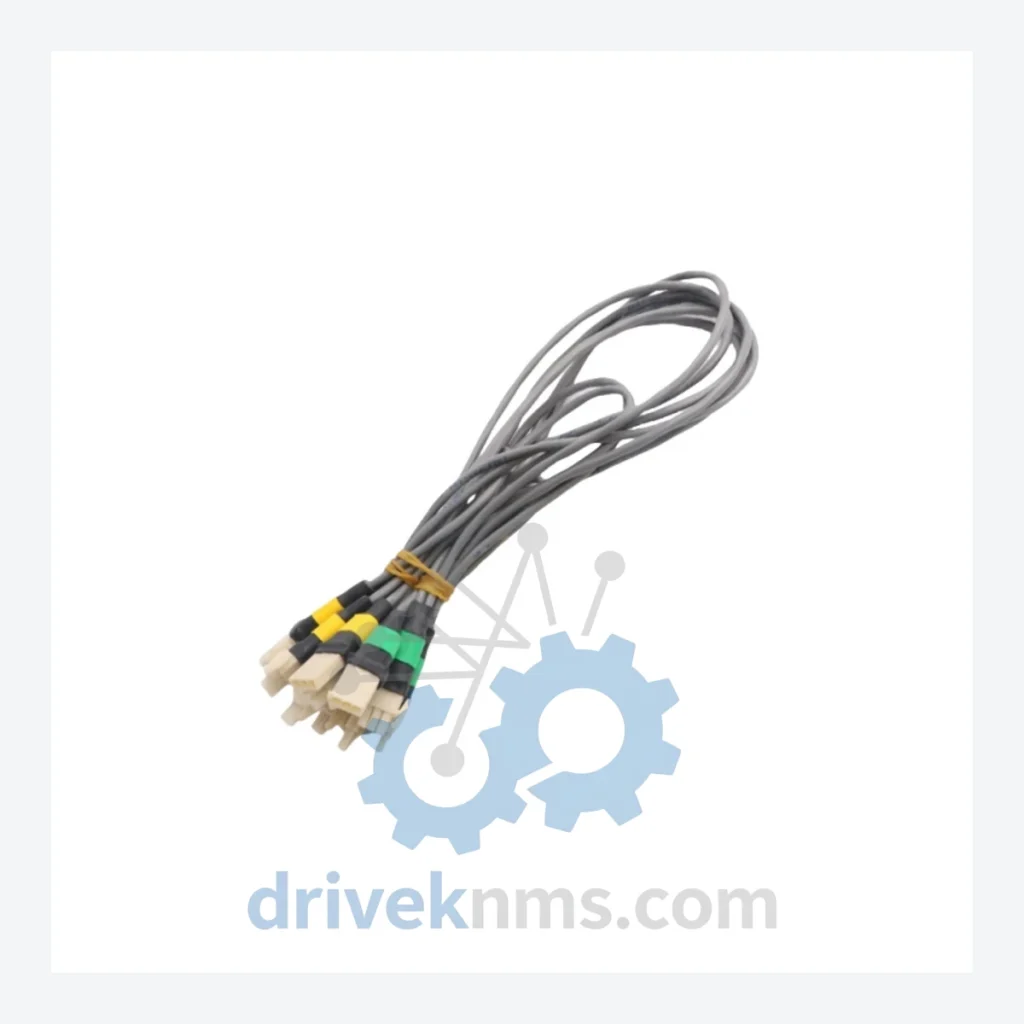

• 51305419-100: Industrial Computer Cable, controller-to-backplane or marshalling interconnect, TDC3000/Experion compatible
• 51201420-010: LCN coaxial cable assembly, 1-meter, node-to-node
• 51201420-025: LCN coaxial cable assembly, 2.5-meter variant

Power Supplies

• 51304362-150: HPM power supply module, 24 VDC output, redundancy-capable
• 51401491-100: Experion C-series power supply, DIN-rail mount

Sourcing Hard-to-Find & Obsolete TDC3000 / Experion Parts

Honeywell formally discontinued manufacturing of TDC3000 Classic hardware in the mid-2000s. Experion PKS components from R100–R300 generations are progressively reaching end-of-sale status. For plant operators, this creates a structural sourcing problem: the control system cannot be replaced on short notice without a multi-year migration project costing $2M–$15M depending on plant scale, yet individual failed components — cables, I/O modules, power supplies — are no longer available through standard distribution channels.

DriveKNMS addresses this gap through three sourcing channels:

• New old stock (NOS): Genuine Honeywell components sourced from decommissioned plants, OEM overstock, and authorized liquidation. Sealed packaging where available.
• Professionally refurbished: Components that have passed our 5-stage QA process (detailed below), functionally equivalent to new for field deployment.
• Cross-reference and substitution advisory: Where a direct replacement is unavailable, our engineering team identifies compatible alternatives within the Honeywell ecosystem or approved third-party equivalents.

For the 51305419-100 cable specifically, procurement lead times through standard channels can exceed 16–24 weeks when available at all. DriveKNMS maintains buffer stock to support emergency and planned maintenance requirements.

Quality Control for the TDC3000 / Experion Range

Cable and interconnect assemblies in DCS environments carry signals where integrity directly affects process safety. Our QA protocol for this product category includes:

1. Visual and mechanical inspection: Connector pin condition, jacket integrity, strain relief, and labeling verification against Honeywell part number documentation.
2. Continuity and isolation testing: Full pin-to-pin continuity map verified against Honeywell wiring schematics. Isolation resistance between conductors measured at 500 VDC.
3. Shield integrity verification: Drain wire and foil/braid shield continuity confirmed end-to-end. Critical for LCN and UCN noise immunity.
4. Connector seating test: Mating cycle performed with reference connector to confirm positive lock and extraction force within specification.
5. Documentation and traceability: Each unit issued a test record with technician ID, date, and pass/fail data. Available to customer on request.

Modules with active backplane communication (NIM, ENIM, FIM) undergo additional firmware version verification and loopback communication testing on a Honeywell-compatible test bench before shipment.

📩 Contact Information

For availability inquiries, bulk orders, or emergency procurement of Honeywell TDC3000 and Experion PKS components:

• Email: sale@driveknms.com
• WhatsApp: +86 18359293191
• Web: driveknms.com

© 2026 DriveKNMS. All trademarks belong to their respective owners. Specifications are for reference only and subject to change without notice. Verify all parameters against official documentation before installation.
