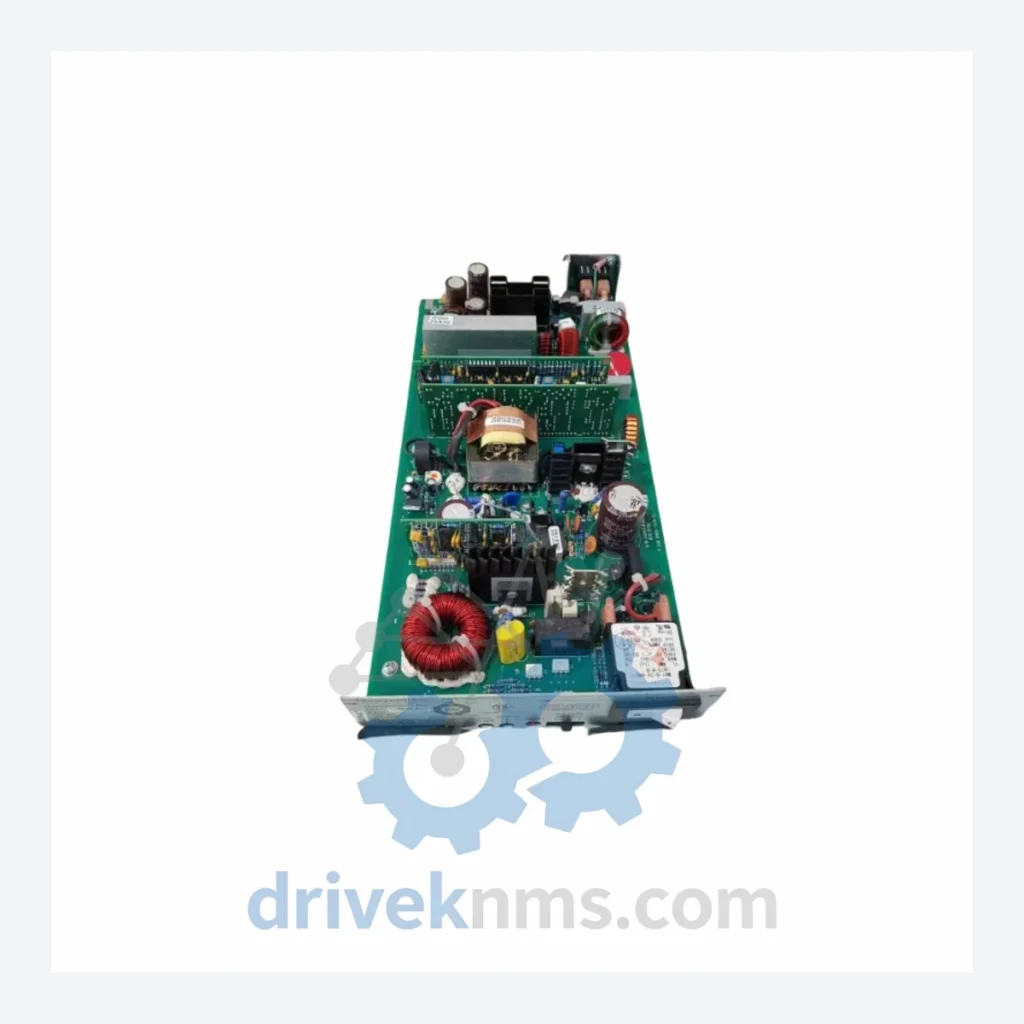

Honeywell FSC Series Modules - 51305489-500

Technical Dossier

Product Details And Specifications

Honeywell FSC Series: Comprehensive Module Range and Technical Overview

The Honeywell FSC (Fail Safe Controller) series is a dedicated safety instrumented system (SIS) platform deployed across high-hazard continuous process industries including petroleum refining, petrochemical complexes, LNG terminals, nuclear auxiliary systems, and offshore production facilities. Certified to IEC 61508 SIL 2/3, the FSC architecture provides hardware fault tolerance through redundant CPU configurations and a deterministic safety bus. Its installed base spans several hundred thousand I/O points globally, making it one of the most widely maintained legacy SIS platforms in the field. Long-term asset owners continue to operate FSC-based safety loops well beyond the platform’s commercial end-of-life, driving sustained demand for certified spare modules.

📩 Looking for a specific FSC model? Send your parts list to: sale@driveknms.com

The Evolution of FSC Architecture

The FSC platform was introduced by Fail-Safe Controls Ltd. and subsequently acquired and developed by Honeywell Process Solutions. Early FSC hardware (pre-2000) used a single-bus backplane with discrete I/O modules rated for SIL 2 applications. The mid-generation FSC introduced dual-redundant CPU modules (e.g., 51305890-175 / 51305890-275 pairs) and expanded the analog I/O range to support HART-enabled field devices. The later FSC release aligned with IEC 61511 sector-specific requirements and introduced enhanced diagnostics via the Safety Manager migration path. Compatibility between early and late FSC generations is constrained at the backplane and firmware level: modules from different hardware revisions are not interchangeable without engineering validation. Organizations migrating from FSC to Honeywell Safety Manager (SM) must account for I/O marshalling changes and logic re-validation under IEC 61511 MOC procedures.

FSC Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly stocked FSC series components. Each entry reflects the module’s primary functional role within the FSC safety loop architecture.

51305489-500: FSC Digital Output module, 24 VDC, 16-channel, SIL 2 rated, field-side isolated
51305489-100: FSC Digital Output module, 24 VDC, 8-channel, standard density variant
51305489-200: FSC Digital Output module, 48 VDC, 16-channel, high-voltage field variant
51305890-175: FSC Central Processing Unit, primary CPU module, redundant pair primary
51305890-275: FSC Central Processing Unit, secondary CPU module, redundant pair secondary
51304453-100: FSC Digital Input module, 24 VDC, 16-channel, SIL 2, dry contact compatible
51304453-200: FSC Digital Input module, 48 VDC, 16-channel, high-voltage input variant
51304453-300: FSC Digital Input module, 24 VDC, 32-channel, high-density configuration
51304441-100: FSC Analog Input module, 4–20 mA, 8-channel, HART pass-through capable
51304441-200: FSC Analog Input module, 4–20 mA, 16-channel, expanded density
51304441-300: FSC Analog Input module, 1–5 VDC, 8-channel, voltage input variant
51304443-100: FSC Analog Output module, 4–20 mA, 4-channel, SIL 2 loop-powered
51304443-200: FSC Analog Output module, 4–20 mA, 8-channel, expanded output density
51305072-100: FSC Power Supply module, 24 VDC input, redundant-capable, chassis-mount
51305072-200: FSC Power Supply module, 120/240 VAC input, universal voltage variant
51304362-100: FSC Communication Interface module, Modbus RTU, RS-485 port
51304362-200: FSC Communication Interface module, Ethernet TCP/IP, 10/100 Mbps
51305556-100: FSC Termination Assembly, field wiring interface for DI/DO modules
51305556-200: FSC Termination Assembly, marshalled cabinet variant, extended cable reach

Sourcing Hard-to-Find & Obsolete FSC Parts

Honeywell formally transitioned FSC customers toward the Safety Manager SC platform beginning in the mid-2010s. As of 2026, the FSC series is in end-of-life status with no new production runs. OEM repair and replacement support has been discontinued for the majority of FSC module families. DriveKNMS maintains a dedicated inventory of tested FSC spare modules sourced from decommissioned plant assets, controlled warehouse stock, and verified third-party channels. For operators running FSC-based SIS loops under extended lifecycle agreements, DriveKNMS provides module-level replacement without requiring full system migration. All supplied modules are accompanied by functional test records and, where applicable, revision-level documentation to support site MOC (Management of Change) processes. Customers requiring long-term supply agreements for FSC spares are invited to submit their BOM for a structured quotation.

Quality Control for the FSC Range

FSC modules present specific test challenges due to their safety-rated backplane communication protocol and hardware-enforced diagnostic coverage requirements. DriveKNMS applies a dedicated FSC test procedure that includes: powered backplane insertion test to verify bus arbitration and module self-diagnostics; channel-level functional verification for all I/O types using calibrated signal sources; output load testing for DO modules including inrush current simulation; CPU module firmware version identification and cross-reference against known-compatible revisions; and 48-hour burn-in under thermal cycling conditions for CPU and power supply modules. Modules that fail any stage of this protocol are quarantined and not released for sale. Test records are retained and available upon request for quality audit purposes.
