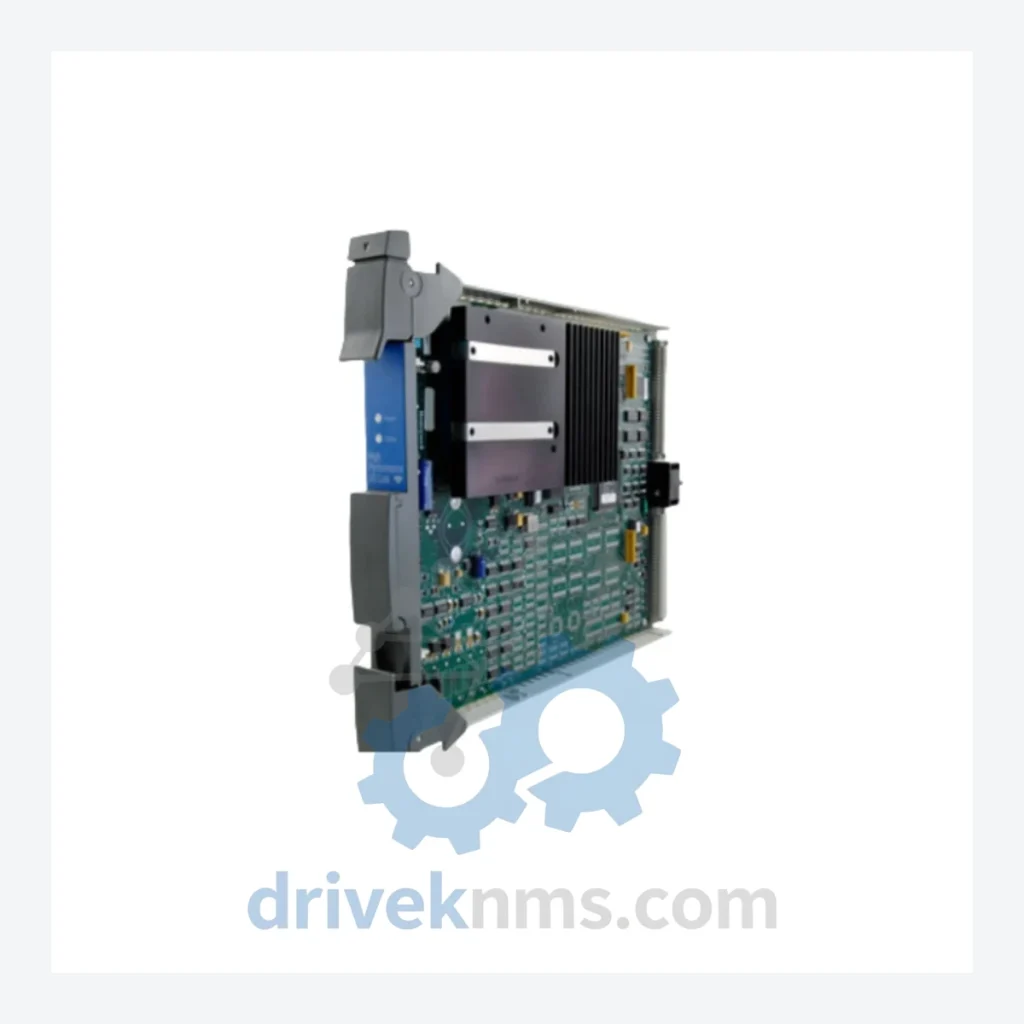

Honeywell 51307190-150 / 51403988-150 Communication Controller – Obsolete TDC 3000 / TPS Spare Part

Technical Dossier

Product Details And Specifications

Honeywell 51307190-150 / 51403988-150 Communication Controller – Obsolete TDC 3000 / TPS Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters such as backplane voltage, communication bus specifications, and slot compatibility are system-dependent and verified against the customer's HPM configuration at the time of order. No parameters are published here that cannot be independently confirmed.

Solving the Discontinued Hardware Crisis

The Honeywell TDC 3000 platform was the backbone of refinery, petrochemical, and power generation control infrastructure built between the 1980s and early 2000s. Tens of thousands of these systems remain in active service globally — not because operators are unaware of their age, but because the economics of replacement are prohibitive. A single HPM node can manage hundreds of I/O points across critical process loops. The Communication Controller module (51307190-150 / 51403988-150) is the data highway interface between the HPM and the plant-wide control network. Without it, the entire HPM node loses supervisory communication — alarms, setpoints, historian data, and operator visibility all go dark.

Replacement hardware from Honeywell's current portfolio is not backward-compatible at the module level. Substituting a modern controller requires firmware migration, I/O remapping, and in most cases a full Factory Acceptance Test (FAT). For a plant running 24/7 continuous operations, scheduling that work is a multi-year planning exercise. A like-for-like replacement of the 51307190-150 eliminates all of that. The existing HPM configuration, tuning parameters, and control logic remain untouched. Maintenance engineers familiar with the platform can execute the swap during a planned turnaround without external DCS integrators.

How to extend your TDC 3000 asset life by 5–10 years at a fraction of replacement cost:

Condition & Reliability Assurance

Every 51307190-150 / 51403988-150 unit shipped by DriveKNMS passes a structured 5-step inspection protocol developed specifically for legacy DCS hardware:

1. Electrolytic Capacitor Assessment: Age-related capacitor degradation is the primary failure mode in TDC 3000 era electronics. Each board is inspected for bulging, leakage, and ESR (Equivalent Series Resistance) deviation. Units with marginal capacitors are either recapped with equivalent-specification components or rejected from inventory.
2. Firmware Version Verification: The firmware revision stamped on the 51403988-150 assembly is cross-referenced against Honeywell's known revision history. Mismatched or corrupted firmware images are identified and the unit is either reflashed (where tooling permits) or quarantined.
3. Pin and Connector Corrosion Inspection: Backplane connector pins are examined under magnification for oxidation, fretting corrosion, and mechanical deformation. Affected pins are treated or the unit is downgraded.
4. Functional Power-On Test: Units are powered in a controlled bench environment to verify initialization sequences and communication bus activity where test infrastructure supports it.
5. Final Documentation and Serialization: Each unit ships with an inspection record, observed condition grade, and firmware revision noted. No unit leaves without a traceable condition report.

Key Features for System Maintenance

• Drop-in replacement: The 51307190-150 installs directly into the existing HPM chassis slot. No backplane modification, no wiring changes.
• No reprogramming required: HPM configuration data resides in the UCN and LCN infrastructure, not in the Communication Controller module itself. Swapping the module does not require reloading control strategies or retuning loops.
• Avoids engineering reconstruction costs: A like-for-like module swap can be executed by a qualified instrument technician. There is no requirement for a DCS migration engineer, a system integrator, or a Honeywell field service contract.
• Preserves existing operator familiarity: Control room operators continue working with the same displays, alarm structures, and operating procedures. There is no retraining burden.
• Supports phased modernization strategies: Maintaining HPM reliability buys the planning time needed to execute a structured, budgeted migration on the plant's schedule — not in response to an emergency failure.

Q: How is condition confirmed before quotation?
A: Available condition, photos, test records and documentation are checked according to the requested model and sourcing channel before a formal RFQ response.

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.
