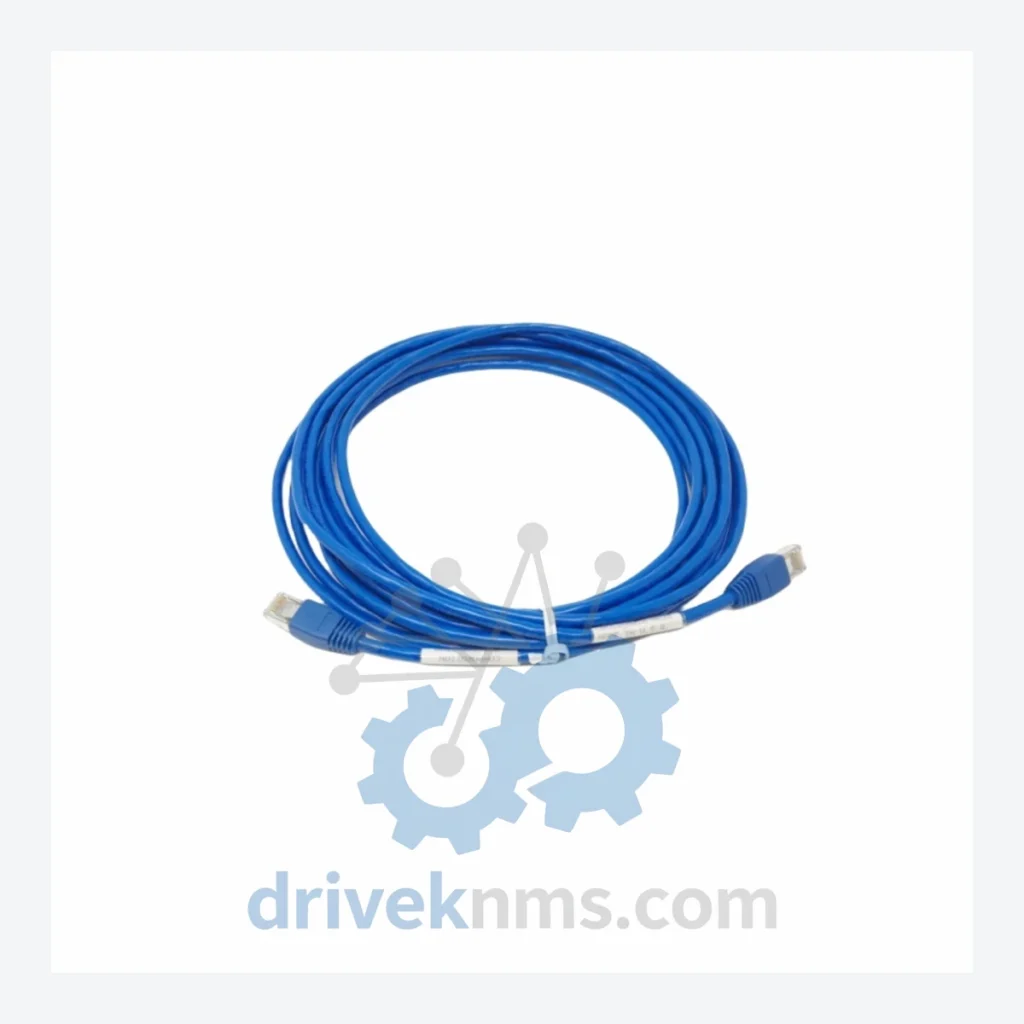

Honeywell 51451996-020 Ethernet Cross-Over Cable

Technical Dossier

Product Details And Specifications

Honeywell 51451996-020 Series Technical Notes

The Honeywell 51451996-020 is an Ethernet Cross-Over Cable designed for peer-to-peer and node-to-node communication within Honeywell's distributed control system (DCS) platforms, including the TDC 3000, Experion PKS, and HC900 process controller architectures. This cable type is a critical infrastructure component deployed across heavy industrial environments including petroleum refineries, chemical processing plants, nuclear power generation facilities, and LNG terminals. Its role is to establish direct Ethernet links between controllers, servers, and network interface modules without requiring an intermediate switch — a topology requirement specific to legacy and hybrid DCS network segments.

Honeywell's DCS cabling ecosystem is engineered to meet the deterministic communication requirements of process control networks, where signal integrity and latency consistency are non-negotiable. The 51451996-020 is a factory-terminated, application-specific cable that eliminates field-termination errors and ensures compliance with Honeywell's internal network qualification standards.

The Evolution of Honeywell DCS Connectivity Architecture

Honeywell's DCS communication infrastructure has evolved through three distinct generations. The first generation, centered on the TDC 3000 platform (introduced in the 1970s and expanded through the 1990s), relied on proprietary Local Control Network (LCN) and Universal Control Network (UCN) topologies using coaxial and specialized twisted-pair cabling. Cross-over cables in this era were used for direct node-to-node LCN connections during commissioning and diagnostics.

The second generation introduced Ethernet-based backplane communication with the Experion PKS (Process Knowledge System) platform, launched in 2000. Standard 10/100 Ethernet replaced proprietary physical layers for supervisory-level communication, while the UCN was retained for field device connectivity. Cross-over cables such as the 51451996-020 became essential for direct C300 Controller-to-server links, redundancy testing, and isolated network segment configuration.

The third generation, represented by Experion PKS R500+ and the Universal I/O (UIO) architecture, transitions toward managed Ethernet switches and fiber-optic backbones. However, a significant installed base of R200–R400 systems continues to require legacy copper cross-over cables for maintenance, expansion, and redundancy validation. The 51451996-020 remains a current-demand spare part for this installed base.

Honeywell DCS Connectivity Full Catalog & Functionalities (SKU List)

The following SKUs represent the verified Honeywell DCS cable, connectivity, and network interface module catalog. Each entry is classified by function and confirmed against Honeywell's published parts documentation.

Ethernet & Network Cables

• 51451996-020: Ethernet cross-over cable, direct node-to-node DCS link, factory-terminated RJ45
• 51451996-100: Ethernet straight-through patch cable, controller-to-switch connection, 1m length
• 51451996-200: Ethernet straight-through patch cable, extended length variant, 2m
• 51109458-100: Coaxial LCN cable assembly, TDC 3000 Local Control Network segment
• 51109458-200: Coaxial LCN cable, extended run, TDC 3000 node interconnect

Network Interface & Communication Modules

• 51304485-100: Ethernet Interface Module (EIM), Experion PKS server-to-LCN bridge
• 51304485-150: Ethernet Interface Module, redundant pair configuration
• 51401642-150: Application Module (AM), LCN-based process application execution node
• 51401642-175: Application Module, extended memory variant for large process databases
• 51402573-150: History Module (HM), LCN historian node for process data archiving

Controller Modules

• 51304516-150: C200 Controller, Experion PKS process controller, single redundancy
• 51304516-175: C200 Controller, enhanced firmware, dual-redundant configuration
• 51309276-150: C300 Controller, Experion PKS advanced process controller
• 51309276-175: C300 Controller, Series B, expanded I/O capacity
• 51454501-175: C300 Controller Module, current production variant, HART-enabled

Power Supply Modules

• 51195896-100: Power Entry Module (PEM), 24VDC DCS cabinet power distribution
• 51195896-200: Power Entry Module, redundant input configuration
• 51452055-175: DC Power Supply, Experion PKS IOTA cabinet, 24VDC/10A output

I/O Modules

• 51305907-175: Analog Input Module (AI), 8-channel, 4–20mA HART, Series C
• 51305896-175: Analog Output Module (AO), 8-channel, 4–20mA, Experion PKS
• 51306329-175: Digital Input Module (DI), 24VDC, 32-channel, Series C

Sourcing Hard-to-Find & Obsolete Honeywell DCS Parts

Our sourcing process for obsolete Honeywell parts includes direct procurement from decommissioned plant inventories, certified refurbishment of pulled units, and cross-referencing against Honeywell's supersession tables to identify approved replacement part numbers. For plants operating TDC 3000 systems beyond 2030, DriveKNMS provides multi-year stocking agreements to ensure continuity of spare parts availability without dependency on OEM supply chains.

All sourced parts are documented with full traceability records including origin plant, decommission date, and pre-shipment test results. Customers receive a Certificate of Conformance (CoC) with each order.

Quality Control for the Honeywell DCS Connectivity Range

Ethernet cross-over cables and network interface modules for DCS applications require verification beyond standard continuity testing. DriveKNMS applies the following test protocol to all Honeywell connectivity parts prior to shipment:

• Pin-out verification: Full TIA/EIA-568-B cross-over wiring confirmation on all 8 conductors using a Fluke DSX CableAnalyzer
• Insertion loss & return loss: Measured per IEEE 802.3 Category 5e/6 standards to confirm signal integrity at 100MHz
• Connector seating force test: RJ45 latch retention verified to prevent intermittent disconnection in vibration-prone cabinet environments
• Functional loop test: Cable installed between two Honeywell-compatible Ethernet ports; link establishment and sustained 100Mbps throughput confirmed over 30-minute soak period
• Visual inspection: Jacket integrity, strain relief condition, and connector body for cracks or deformation

For network interface modules (EIM, C200, C300), additional backplane communication tests are performed using Honeywell's diagnostic utilities to confirm firmware integrity and bus communication at rated cycle times.
