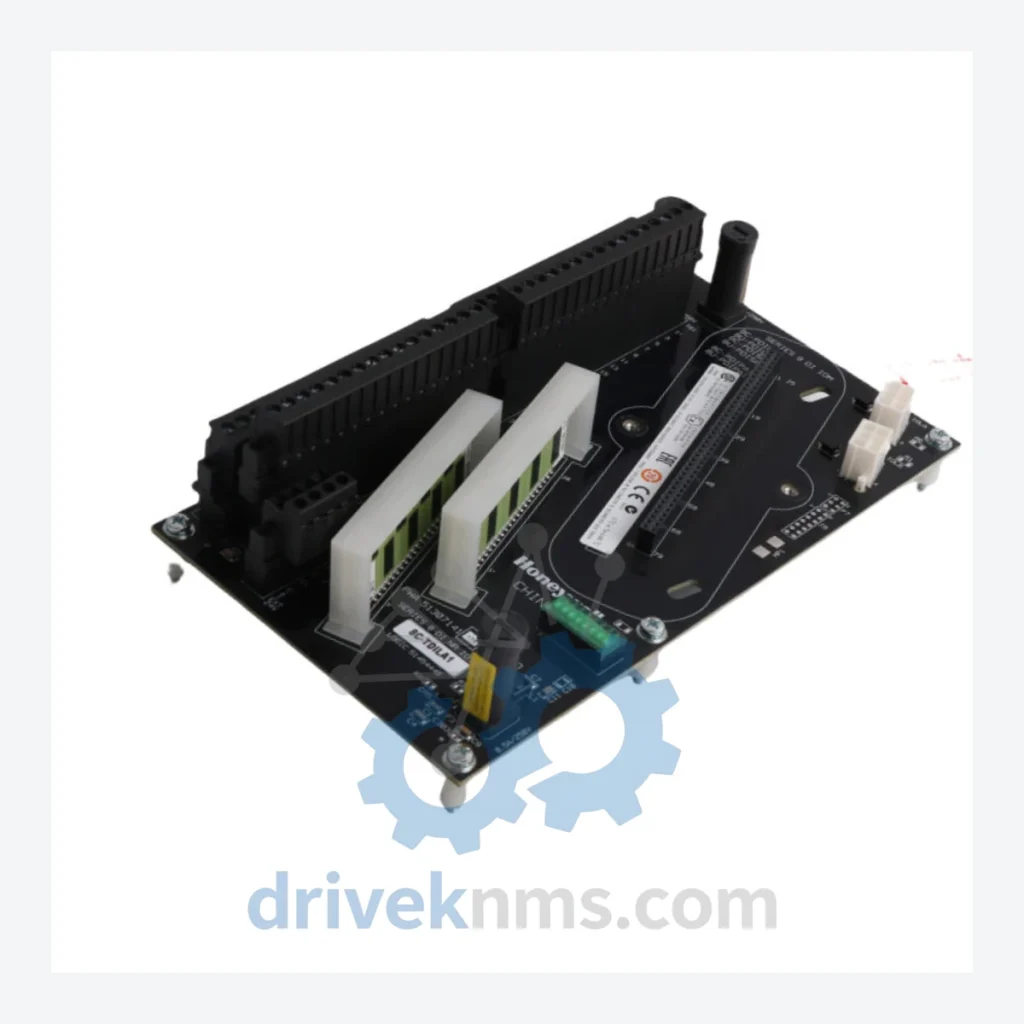

Honeywell 8C Series Modules: 8C-TDILA1 51307141-175 Accumulation Module

Technical Dossier

Product Details And Specifications

Honeywell 8C Series Technical Notes

The Honeywell 8C Series represents a standardized family of I/O interface modules engineered for deployment within Honeywell's Experion PKS (Process Knowledge System) distributed control architecture. These modules are installed across heavy industrial sectors including petroleum refining, chemical processing, nuclear power generation, LNG terminals, and offshore platforms. The 8C form factor integrates directly into the Series C I/O chassis, communicating over the FTE (Fault Tolerant Ethernet) and FOUNDATION Fieldbus backplane infrastructure. Their modular design supports hot-swap replacement without process interruption, a critical requirement in continuous-operation facilities. The 8C-TDILA1 51307141-175 is a Digital Input (DI) Accumulation Module within this family, designed to count and accumulate discrete pulse signals from field devices such as turbine flow meters, proximity switches, and encoder outputs.

The Evolution of 8C Series Architecture

The 8C Series emerged as Honeywell transitioned from the legacy TDC 3000 and PlantScape platforms toward the unified Experion PKS environment, introduced in the early 2000s. Early Series C I/O relied on the CIOM-A (C I/O Module) chassis with proprietary backplane communication. Subsequent hardware revisions introduced the CIOM-B chassis with enhanced FTE redundancy support and improved EMI shielding for high-noise industrial environments.

8C Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly deployed modules within the Honeywell 8C Series I/O family. Modules are classified by functional category.

Digital Input (DI) Modules

• 8C-TDILA1 51307141-175: 8-channel DI Accumulation Module; pulse counting for flow meters and encoders
• 8C-TDIDS1 51307141-150: 8-channel DI Discrete Module; 24 VDC dry contact and wet contact inputs
• 8C-TDIDH1 51307141-155: 8-channel DI High-density Discrete Module; 120 VAC/VDC field input compatible
• 8C-TDIDL1 51307141-160: 8-channel DI Low-level Discrete Module; NAMUR proximity sensor interface
• 8C-TDIDS2 51307141-151: 16-channel DI Discrete Module; high-density rack-mount configuration

Digital Output (DO) Modules

• 8C-TDODS1 51307141-200: 8-channel DO Discrete Module; 24 VDC sourcing output, 0.5 A per channel
• 8C-TDODH1 51307141-205: 8-channel DO High-side Driver Module; relay-equivalent solid-state output
• 8C-TDODL1 51307141-210: 8-channel DO Low-side Driver Module; sinking output for solenoid valve control

Analog Input (AI) Modules

• 8C-TAIAM1 51307141-100: 8-channel AI Module; 4–20 mA HART-enabled field input, 16-bit resolution
• 8C-TAIAM2 51307141-101: 8-channel AI Module; 1–5 VDC input range, non-HART configuration
• 8C-TAIAS1 51307141-105: 8-channel AI Safety Module; SIL 2 rated, redundant signal path
• 8C-TAIAH1 51307141-110: 8-channel AI High-accuracy Module; ±0.05% full-scale accuracy for precision measurement
• 8C-TAIRT1 51307141-115: 8-channel AI RTD/Thermocouple Module; multi-sensor type selection per channel

Analog Output (AO) Modules

• 8C-TAOAM1 51307141-300: 8-channel AO Module; 4–20 mA HART output, 12-bit resolution
• 8C-TAOAM2 51307141-301: 8-channel AO Module; 0–10 VDC output range for positioner and valve applications

Communication & Power Modules

• 8C-PCNT01 51307141-400: Series C I/O Link Controller; manages backplane communication for up to 8 I/O modules
• 8C-PPWR01 51307141-450: Series C Power Supply Module; 24 VDC regulated output, redundancy-capable
• 8C-PPWR02 51307141-451: Series C Redundant Power Supply Module; hot-swap capable, N+1 configuration

Quality Control for the 8C Series Range

The 8C Series modules incorporate a multi-layer backplane communication protocol that requires functional validation beyond basic power-on testing. DriveKNMS applies the following test procedures to all 8C Series units prior to shipment:

• Backplane Communication Test: Each module is seated in a live Series C I/O chassis and polled via the FTE link to confirm correct module identification, firmware version reporting, and channel-level diagnostic response.
• Channel-Level Signal Injection: For DI Accumulation modules such as the 8C-TDILA1, pulse signals are injected at rated frequency (up to 1 kHz) on all 8 channels simultaneously to verify accumulator register integrity and overflow handling.
• HART Communication Verification: AI and AO modules with HART capability are tested using a HART communicator to confirm device descriptor recognition and variable mapping.
• Thermal Cycling: Modules flagged as refurbished undergo a 4-hour thermal soak at 55°C followed by ambient cool-down to identify latent component failures prior to dispatch.
• Cosmetic and Connector Inspection: All backplane edge connectors, field terminal blocks, and module locking tabs are inspected under magnification for corrosion, pin deformation, or mechanical damage.
