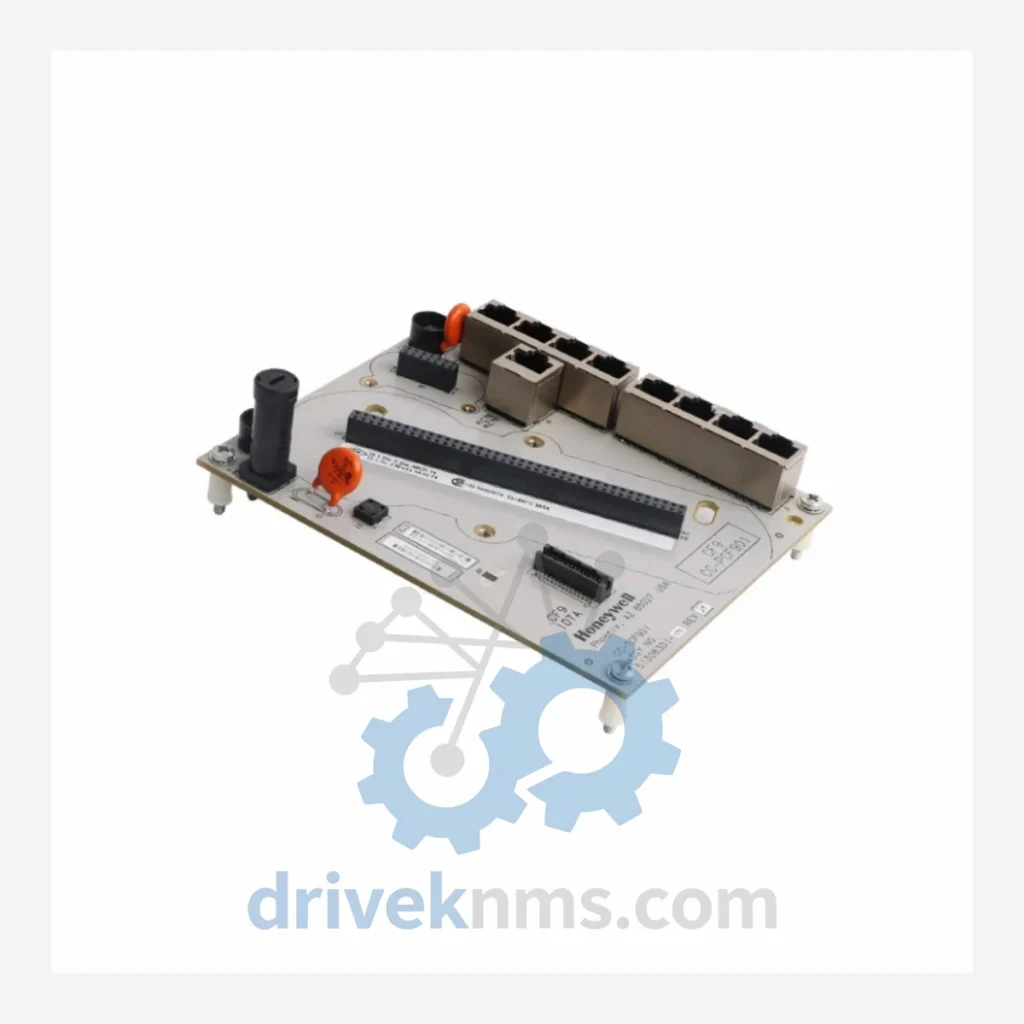

Honeywell Experion PKS Series C Modules: CC-PCF901 CC-TCF901

Name: Honeywell Experion PKS Series C Modules: CC-PCF901 CC-TCF901
Brand: Honeywell

Model: CC-PCF901 CC-TCF901

Brand Honeywell

Series Experion PKS Series C

Model CC-PCF901 CC-TCF901

RFQ-ready model route Obsolete and surplus sourcing Export follow-up by model list

Product Overview

Commercial availability is handled through direct RFQ, model verification and export-oriented follow-up rather than public cart checkout.

Submit RFQ Email This Model

Datasheet Preview

Use attached product manuals when available. If the manual is not public yet, request the full file directly through RFQ.

Request Full Manual

Commercial Path

Use This Page To Confirm The Model, Then Move To RFQ

Product pages on DRIVEKNMS are designed to verify model, brand and series first, then move the buyer into one clean quotation path.

Technical Dossier

Product Details And Specifications

Honeywell Experion PKS Series C Technical Notes

The Evolution of Experion PKS Series C Architecture

Honeywell's Experion PKS platform was introduced in the early 2000s as a successor to the TDC 3000 and PlantScape systems, consolidating process control, safety, and asset management under a unified software environment. The Series C generation — centered on the C300 Controller — introduced a significant architectural shift: the adoption of a dedicated Control Execution Environment (CEE) running on a real-time OS, decoupled from the Windows-based Experion Server. This separation improved determinism and fault isolation.

Early Series C deployments used IOTA (I/O Termination Assembly) boards paired with Series C I/O Link modules. Subsequent revisions introduced enhanced FTE switch integration, expanded the supported I/O module count per controller, and added support for HART pass-through on analog modules. The platform has since entered a mature/extended lifecycle phase. Honeywell continues to provide long-term maintenance support (LTMS) for Series C hardware, but new greenfield deployments increasingly migrate toward the Experion PKS Highly Integrated Virtual Environment (HIVE) architecture. For existing Series C installations, sourcing certified spare modules is the primary strategy for sustaining operational continuity without full system migration.

Experion PKS Series C Full Catalog & Functionalities (SKU List)

Controllers & Firewall Modules

CC-PCF901: Series C Control Firewall Module — primary FTE network isolation and traffic filtering for C300 controller node.
CC-TCF901: Series C Control Firewall Module (redundant pair / alternate configuration) — used in redundant FTE firewall deployments alongside CC-PCF901.
CC-PCF901E: Enhanced variant of CC-PCF901 with extended firmware support for later Experion R4xx releases.
C300: Series C Process Controller — core execution engine; supports up to 2,000 I/O points per controller node.
CC-PCNT01: Series C Controller Node Termination — backplane interface for C300 in IOTA-based cabinets.

Analog I/O Modules

CC-PAIH01: Series C Analog Input Module, High-Level — 8-channel, 4–20 mA / 1–5 V, HART-capable.
CC-PAIH02: Series C Analog Input Module, High-Level — 16-channel variant for higher-density I/O cabinets.
CC-PAOH01: Series C Analog Output Module — 8-channel, 4–20 mA output, HART pass-through supported.
CC-PAIN01: Series C Analog Input Module, Low-Level — thermocouple and RTD inputs, 8-channel.

Digital I/O Modules

CC-PDIL01: Series C Digital Input Module, Low-Side — 24 VDC, 32-channel, isolated.
CC-PDOB01: Series C Digital Output Module, Relay — 8-channel, dry contact relay outputs.
CC-PDOB02: Series C Digital Output Module, Solid-State — 24 VDC, 16-channel transistor outputs.
CC-PDIL02: Series C Digital Input Module — 120 VAC input, 16-channel, for legacy field wiring compatibility.

Communication & Network Modules

CC-PCNT01: Series C FTE Communication Node Termination — manages FTE switch uplink from controller chassis.
CC-LINK01: Series C I/O Link Module — connects remote I/O IOTA assemblies to the C300 controller over the Series C I/O Link bus.
CC-MCAR01: Series C Modbus/RS-485 Communication Module — integrates third-party field devices via Modbus RTU.

Power Supply Modules

CC-PWR001: Series C Power Supply Module — 24 VDC regulated output for I/O chassis; supports redundant power configuration.
CC-PWR002: Series C Redundant Power Supply Module — hot-swap capable; used in high-availability cabinet configurations.

Sourcing Hard-to-Find & Obsolete Experion PKS Series C Parts

As the Experion PKS Series C platform transitions through its extended lifecycle, a growing proportion of installed modules are no longer available through standard Honeywell distribution channels. DriveKNMS maintains a dedicated inventory of Series C spare modules — including firewall modules such as the CC-PCF901 and CC-TCF901 — sourced through certified secondary market channels. All units are subject to provenance verification, firmware revision documentation, and functional pre-shipment testing.
