Honeywell CC-PDIL01 / CC-PDOB01 / CC-PCF901 I/O Module – Obsolete C300 Series Spare Part

Technical Dossier

Product Details And Specifications

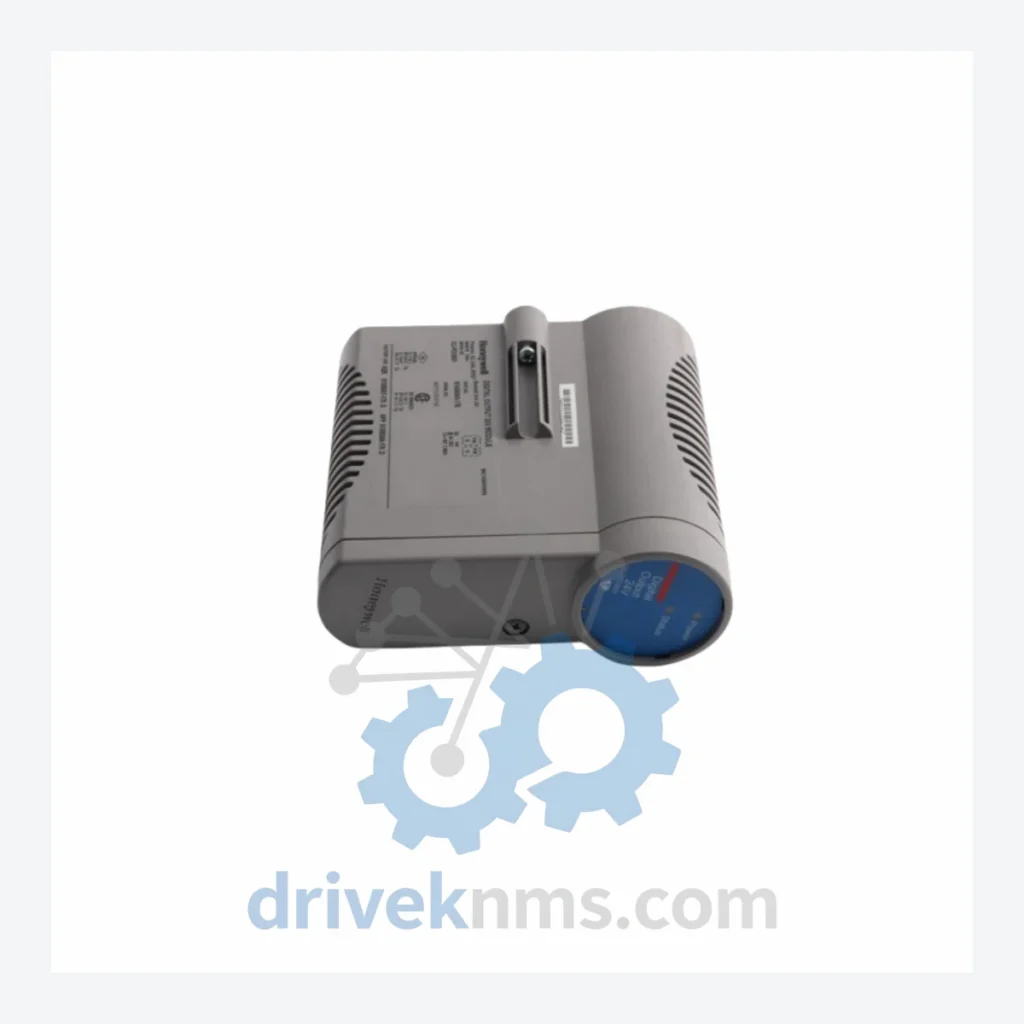

Honeywell CC-PDIL01 / CC-PDOB01 / CC-PCF901 I/O Module – Obsolete C300 Series Spare Part

When a C300 series I/O module fails in a running Honeywell Experion PKS or TPS environment, the consequences are not limited to a single loop going offline. A single failed CC-PDIL01 digital input link, CC-PDOB01 digital output base, or CC-PCF901 control firewall module can cascade into a full process unit shutdown. The cost of an unplanned outage in a refinery, chemical plant, or power generation facility routinely exceeds six figures per day — and that figure does not account for the engineering hours, regulatory reporting, and revalidation burden triggered by a forced platform migration.

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

DriveKNMS reviews sourcing options for this model through RFQ handling before quotation.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Solving the Discontinued Hardware Crisis

The Honeywell C300 controller platform was the backbone of process automation across oil & gas, petrochemical, pulp & paper, and power generation industries for over two decades. The CC-PDIL01, CC-PDOB01, and CC-PCF901 modules are deeply embedded in these architectures — not as peripheral accessories, but as core I/O and network integrity components.

The CC-PCF901 Control Firewall Module, in particular, governs the boundary between the C300 controller and the FTE (Fault Tolerant Ethernet) network. There is no software workaround for a failed firewall module. The controller node goes dark. In a redundant configuration, the standby takes over — but with no spare in hand, the plant is now operating without redundancy protection, one failure away from a full process trip.

The professional recommendation for any facility still operating on Honeywell Experion PKS with C300 hardware is to maintain a minimum of one cold spare per critical module type per controller node. For high-availability processes, two spares per node is the defensible standard.

Condition & Reliability Assurance

Discontinued modules sourced from the secondary market carry inherent risk. DriveKNMS applies a structured 5-step qualification process before any C300 module is offered for sale:

1. Visual and mechanical inspection: Boards are examined under magnification for physical damage, pin corrosion, solder joint fatigue, and connector wear. Modules with compromised connectors are rejected at this stage.
2. Electrolytic capacitor assessment: Aged electrolytic capacitors are the primary failure mode in modules stored beyond their design life. Each board is assessed for capacitor bulging, leakage, and ESR deviation. Where degradation is confirmed, capacitors are replaced with specification-matched components.
3. Firmware version verification: Module firmware is read and documented. Compatibility with the target Experion PKS release is confirmed before dispatch review. Mismatched firmware versions are a known source of integration failures in the field.
4. Functional bench test: Where test fixtures are available, modules are powered and exercised through their I/O channels to verify correct operation prior to packaging.
5. Anti-static packaging and documentation: All modules are packaged in ESD-safe materials. A condition report and firmware version record accompany each shipment.

Key Features for System Maintenance

• Drop-in replacement: The CC-PDIL01, CC-PDOB01, and CC-PCF901 are direct hardware replacements within the C300 chassis. No re-engineering of the control strategy is required.
• No reprogramming required: Controller configuration resides in the C300 controller, not in the I/O modules. Module replacement does not require re-downloading or modifying the control database.
• Avoids engineering reconstruction costs: Replacing a failed module with a verified spare eliminates the need for loop re-engineering, P&ID revision, and revalidation — activities that can consume weeks of engineering time and require regulatory sign-off in regulated industries.
• Extends asset life by 5–10 years: A disciplined spare parts strategy — covering critical I/O modules, controller cards, and network components — is the primary mechanism by which facilities operating on legacy DCS platforms defer migration costs. Plants that maintain adequate spares routinely extend platform life well beyond the manufacturer's support window without compromising process safety or availability.
• Protects capital investment: A C300-based DCS installation represents a capital investment measured in millions. The cost of a single module spare is negligible relative to the cost of the asset it protects.

How do I confirm the module is new or professionally refurbished?
Each module is shipped with a condition report documenting its source classification (new surplus or refurbished), the results of the 5-step QA process, and the firmware version recorded at inspection. New surplus modules retain original Honeywell labeling and date codes.

Can these modules be used in both Experion PKS and TPS environments?
The C300 hardware platform spans both the Experion PKS and legacy TPS architectures. Compatibility depends on the specific firmware version and system release. Contact DriveKNMS with your system release details before ordering to confirm compatibility.
