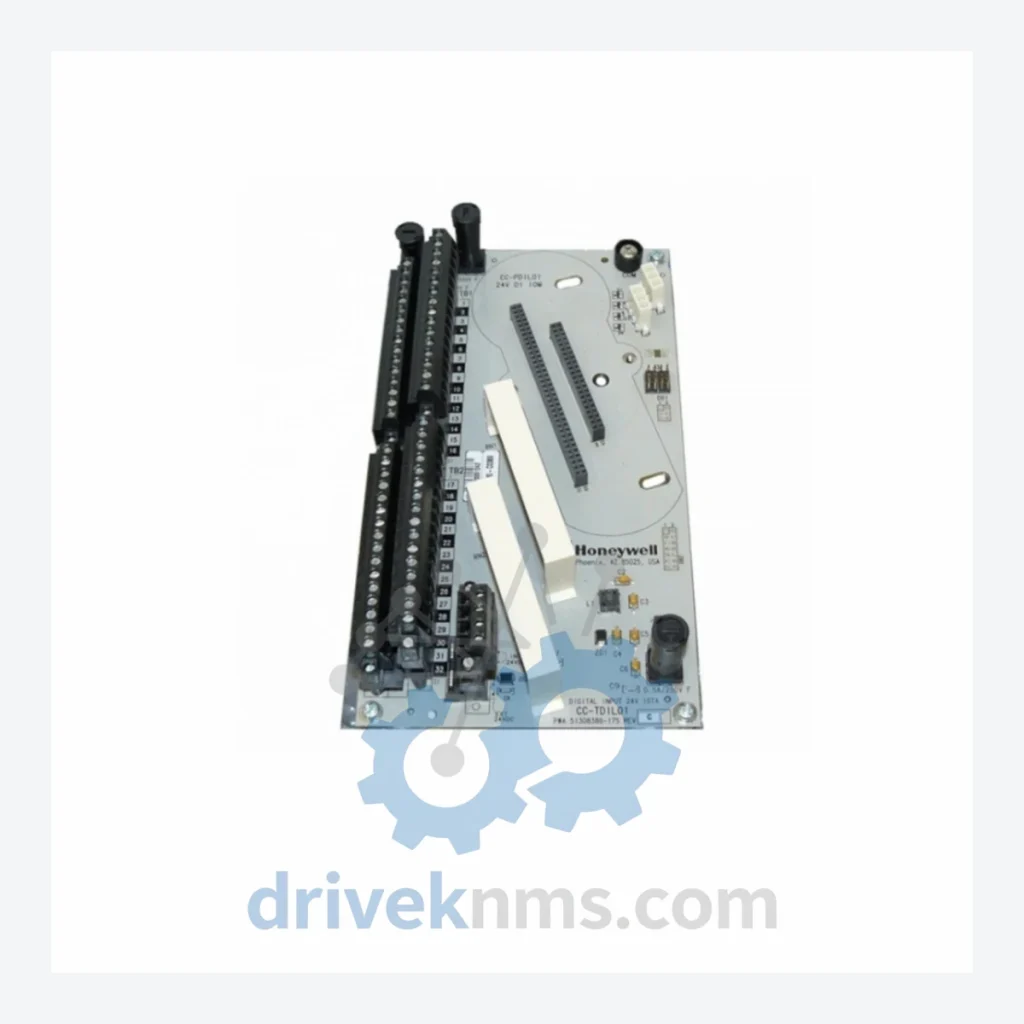

Honeywell CC-TDOB01 & CC-TDIL01 Digital Output / Input Modules - CC-TDOB01 CC-TDIL01

Name: Honeywell CC-TDOB01 & CC-TDIL01 Digital Output / Input Modules - CC-TDOB01 CC-TDIL01
Brand: Honeywell

Model: CC-TDOB01 CC-TDIL01

Brand Honeywell

Series CC-TDOB01 & CC-TDIL01 Output / Input

Model CC-TDOB01 CC-TDIL01

RFQ-ready model route Obsolete and surplus sourcing Export follow-up by model list

Product Overview

Commercial availability is handled through direct RFQ, model verification and export-oriented follow-up rather than public cart checkout.

Submit RFQ Email This Model

Datasheet Preview

Use attached product manuals when available. If the manual is not public yet, request the full file directly through RFQ.

Request Full Manual

Commercial Path

Use This Page To Confirm The Model, Then Move To RFQ

Product pages on DRIVEKNMS are designed to verify model, brand and series first, then move the buyer into one clean quotation path.

Technical Dossier

Product Details And Specifications

Honeywell Experion PKS C300 Series Technical Notes

The Honeywell Experion PKS C300 Series represents one of the most widely deployed Distributed Control System (DCS) platforms in global heavy industry. Installed across petrochemical complexes, nuclear power stations, oil refineries, pulp and paper mills, and LNG terminals, the C300 controller family forms the backbone of process automation in facilities where continuous uptime is non-negotiable. The CC-TDOB01 (Digital Output Module) and CC-TDIL01 (Digital Input Module) are field-proven I/O components within this architecture, designed for direct integration into the C300 I/O Link infrastructure. These modules operate within the FOUNDATION Fieldbus and HART-compatible I/O subsystem, providing deterministic digital signal handling for discrete process control loops.

Experion PKS C300 Full Catalog & Functionalities (SKU List)

Controllers

CC-PCF901: C300 Process Controller Module, primary CPU unit for C300 rack
CC-PCF902: C300 Controller Module, redundant pair partner for CC-PCF901
CC-PCNT01: C300 Controller Node, standalone process controller node assembly

Digital I/O Modules

CC-TDOB01: Digital Output Module, 24 VDC, 16-channel discrete output for field actuators
CC-TDIL01: Digital Input Module, 24 VDC, 16-channel discrete input for field sensors
CC-TDOB11: Digital Output Module, 120 VAC, 8-channel isolated discrete output
CC-TDIL11: Digital Input Module, 120 VAC, 8-channel isolated discrete input
CC-TDOB21: Digital Output Module, relay contact, 8-channel dry contact output

Analog I/O Modules

CC-TAOX11: Analog Output Module, 4–20 mA, 8-channel isolated analog output
CC-TAIX11: Analog Input Module, 4–20 mA / 1–5 VDC, 8-channel isolated analog input
CC-TAIX21: Analog Input Module, thermocouple/RTD, 8-channel temperature input
CC-TAOX21: Analog Output Module, 4–20 mA HART, 8-channel HART-enabled analog output

Communication & Fieldbus Adapters

CC-PAIH01: PROFIBUS DP Interface Module, gateway for PROFIBUS field device networks
CC-PAIH02: PROFIBUS PA Interface Module, process automation fieldbus adapter
CC-PDOB01: DeviceNet Interface Module, DeviceNet master adapter for C300 I/O Link

Power Supply & Infrastructure

CC-PWR001: C300 I/O Power Supply Module, 24 VDC rail power for I/O chassis
CC-PWR002: Redundant Power Supply Module, hot-swap redundant power for C300 I/O rack
CC-SCMB02: Series C Mounting Base, chassis mounting base for C300 I/O modules

Quality Control for the Experion PKS C300 Range

C300 I/O modules present specific test challenges due to their I/O Link bus communication protocol and backplane connector integrity requirements. DriveKNMS applies a structured test protocol for all CC-TDOB01 and CC-TDIL01 units: (1) Visual inspection of backplane connector pins and conformal coating integrity; (2) Power-on functional test using a C300-compatible I/O Link test bench, verifying channel-by-channel output switching and input signal acquisition; (3) Communication handshake verification against a C300 controller node to confirm module address assignment and status reporting; (4) Burn-in cycle at rated operating temperature (0–60°C) for a minimum of 24 hours; (5) Final continuity and isolation resistance test per IEC 61010-1 safety standards. Units that fail any stage are quarantined and not returned to inventory.
