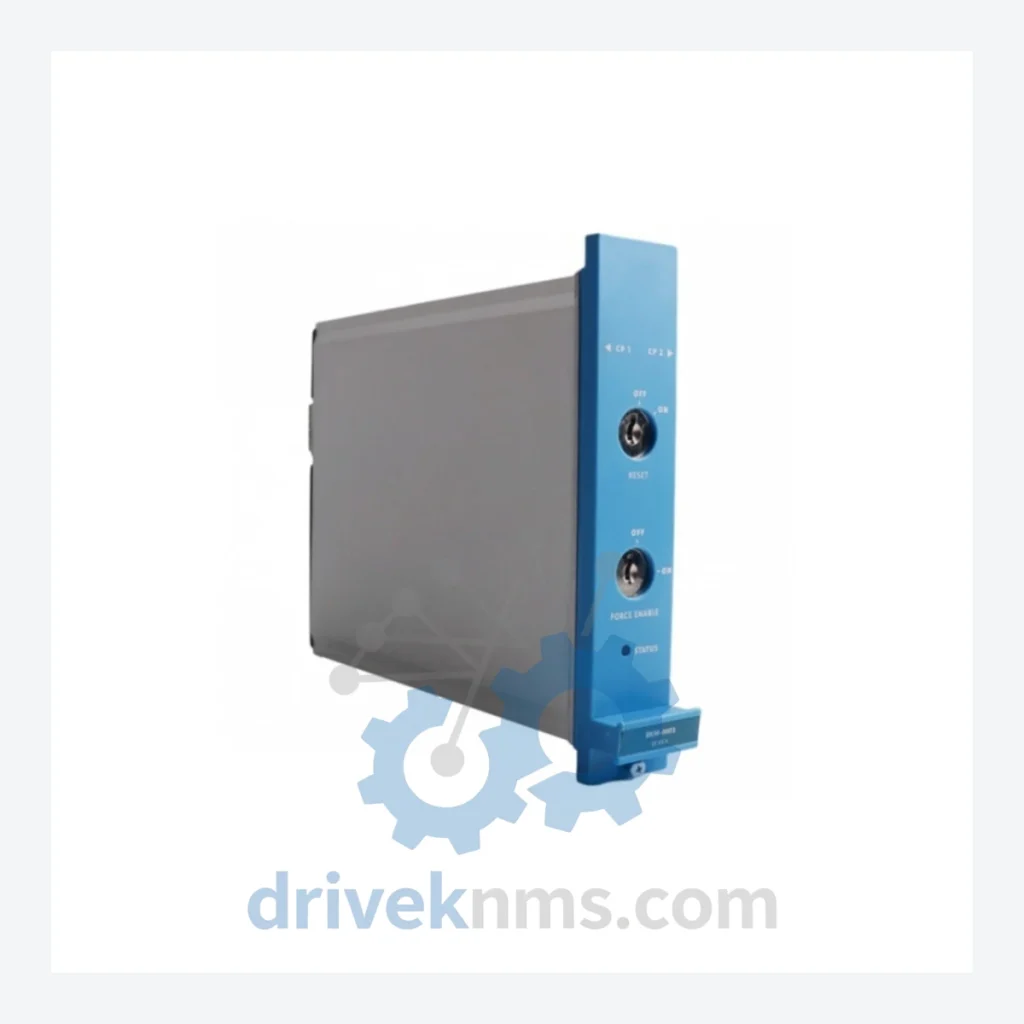

Honeywell FC-PSU Series Power Supply Modules: FC-PSU-240516, FC-TPSU-2430, FC-PSU-UNI2450U

Technical Dossier

Product Details And Specifications

Honeywell FC-PSU Series Technical Notes

The Evolution of FC-PSU Architecture

The FC-PSU lineage originates from Honeywell's FSC (Fail-Safe Controller) platform, introduced in the 1990s as a dedicated safety instrumented system (SIS) controller. Early power supply modules in this family were fixed-voltage, single-output units designed for the FSC chassis backplane. As the platform evolved into the Safety Manager (SM) and Safety Manager SC (SMSC) generations, the power supply architecture was revised to support wider input voltage ranges, higher output current capacities, and dual-redundant configurations.

The transition from FSC to Safety Manager introduced universal input modules (e.g., FC-PSU-UNI2450U) capable of accepting both 24 VDC and 120/240 VAC inputs — a significant architectural shift that simplified global deployment. Toroidal transformer-based variants (e.g., FC-TPSU-2430) were introduced to address installations requiring galvanic isolation and reduced electromagnetic interference in sensitive measurement environments. The current generation supports 1+1 redundant power supply configurations with automatic failover, monitored via the Safety Manager diagnostic bus.

As the FSC platform has reached end-of-active-production, Honeywell's primary upgrade path is migration to the Safety Manager SC. However, the installed base of FSC and early Safety Manager systems remains substantial, and FC-PSU modules continue to be required for lifecycle maintenance, turnaround support, and long-term service agreements (LTSAs).

FC-PSU Full Catalog & Functionalities (SKU List)

Power Supply Modules

• FC-PSU-240516: 240 VAC input, 5 VDC/16 A output power supply for FSC/Safety Manager backplane.
• FC-TPSU-2430: Toroidal transformer power supply, 24 VDC input, 30 W output, galvanic isolation.
• FC-PSU-UNI2450U: Universal input (24 VDC / 120–240 VAC), 50 W, hot-swap redundant PSU.
• FC-PSU-120516: 120 VAC input, 5 VDC/16 A output, North American installation variant.
• FC-PSU-2416: 24 VDC input, 16 A output, standard DC-powered backplane supply.
• FC-PSU-2424: 24 VDC input, 24 A output, high-current variant for fully populated chassis.
• FC-PSU-4816: 48 VDC input, 16 A output, telecom-grade DC bus compatible supply.
• FC-TPSU-12030: Toroidal PSU, 120 VAC input, 30 W, for noise-sensitive field installations.
• FC-TPSU-24050: Toroidal PSU, 240 VAC input, 50 W, high-isolation variant.
• FC-PSU-UNI1250U: Universal input, 12 VDC/50 W output, compact chassis power supply.
• FC-PSU-RDN-KIT: Redundancy kit for 1+1 FC-PSU configuration, includes cabling and backplane adapter.
• FC-PSU-FILTER-24: EMC input filter module, 24 VDC, for FC-PSU installations in high-interference environments.
• FC-PSU-CB-240: Circuit breaker module, 240 VAC, upstream protection for FC-PSU-240516.
• FC-PSU-MON: Power supply monitoring module, reports PSU status to Safety Manager diagnostic channel.
• FC-PSU-BYPASS: Manual bypass switch assembly for FC-PSU hot-swap maintenance without system shutdown.
• FC-PSU-UNI2450U-R: Factory-refurbished variant of FC-PSU-UNI2450U, tested to OEM specification.

Quality Control for the FC-PSU Range

FC-PSU modules interface directly with the FSC/Safety Manager backplane bus and supply regulated power to safety-critical I/O and processor modules. DriveKNMS applies a dedicated test protocol for this product family:

• Input voltage sweep test: Applied across the full rated input range (±10%) to verify regulation stability and overcurrent protection response.
• Output load test: Full-rated load applied for minimum 2 hours; output voltage ripple measured against Honeywell specification limits.
• Backplane connector inspection: Pin continuity, contact resistance, and mechanical seating verified using calibrated test fixtures.
• Isolation resistance test: Applied to toroidal variants (FC-TPSU series) to confirm galvanic isolation integrity between input and output circuits.
• Thermal imaging: Infrared scan performed under load to identify abnormal heat distribution in transformer windings, rectifier stages, and filter capacitors.
• Firmware/hardware revision verification: Module revision label cross-checked against Honeywell compatibility matrix for target Safety Manager or FSC chassis version.
