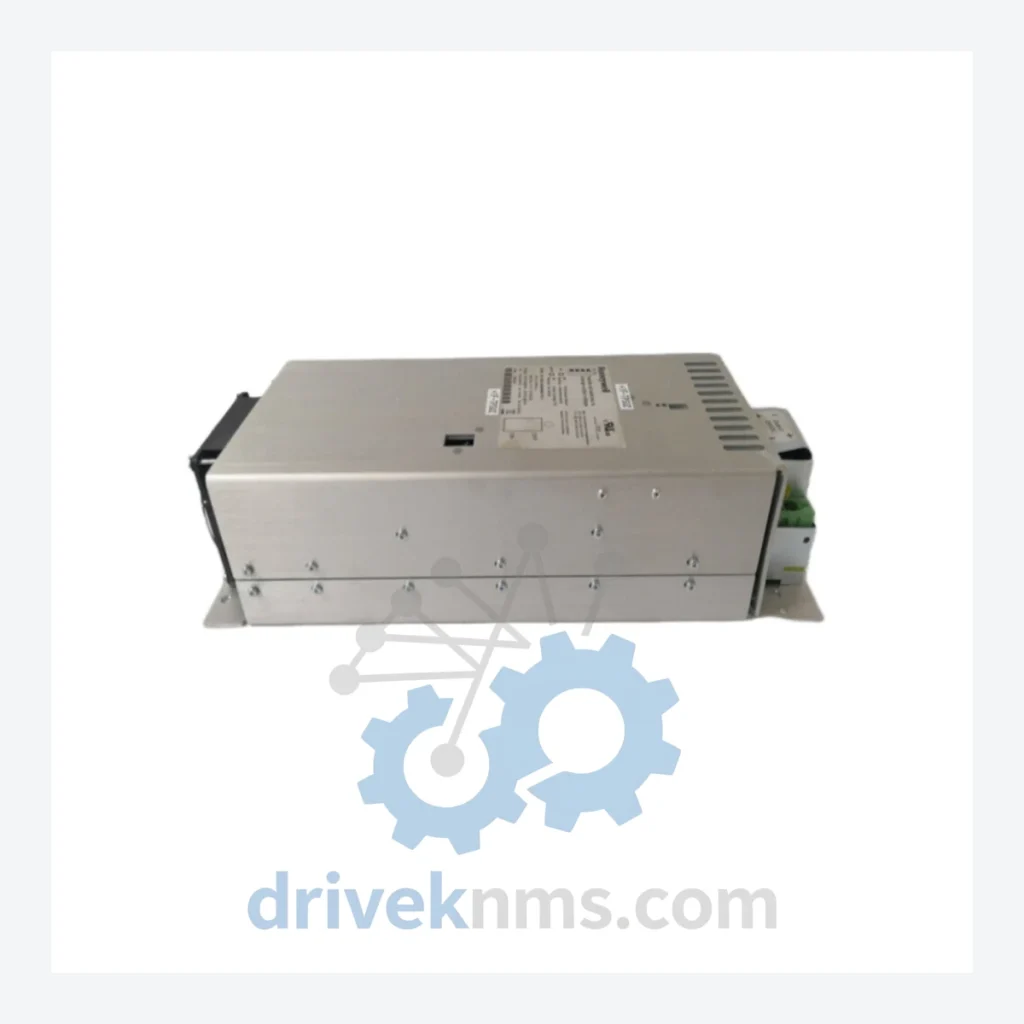

Honeywell FC Series Modules – FC-PSU-UNI2450 & Full Catalog

Technical Dossier

Product Details And Specifications

Honeywell FC Series Technical Notes

The Evolution of FC Series Architecture

The FC Series traces its lineage to the Honeywell FSC (Fail-Safe Controller) platform introduced in the late 1980s, originally developed by Hima and subsequently integrated into Honeywell's safety systems portfolio. Early-generation hardware operated on a 24 VDC bus with discrete I/O modules communicating over a proprietary backplane. The transition to the Safety Manager (SM) generation in the 2000s introduced Ethernet-based engineering workstation connectivity, expanded the I/O module count per chassis, and added support for HART pass-through on analog input cards.

The FC-PSU family — of which the FC-PSU-UNI2450 is a primary member — provides the regulated DC power infrastructure for the entire chassis. The UNI2450 designation indicates a universal input range (85–264 VAC, 47–63 Hz) with a 24 VDC / 50 W output, designed for redundant power supply configurations. Compatibility spans FSC Generation 2 through Safety Manager R210 firmware environments. Facilities running legacy FSC hardware must verify backplane connector revision (Rev. A vs. Rev. B) before substituting power supply modules, as pin assignments differ between generations.

As of 2024, the FC/FSC hardware line is in the mature/end-of-active-production phase. Honeywell continues to provide lifecycle support under its Extended Support Program, but new module production runs are limited. Operators are advised to maintain strategic spare inventories, particularly for power supply and CPU modules, which are the highest-failure-rate components in long-running installations.

FC Series Full Catalog & Functionalities (SKU List)

Power Supply Modules

• FC-PSU-UNI2450: Universal AC input 24 VDC/50 W chassis power supply, redundancy-capable
• FC-PSU-UNI2424: 24 VDC input, 24 VDC/24 W output, DC-powered site power supply
• FC-PSU-UNI4850: 48 VDC input variant, 50 W output for telecom-standard DC bus sites

CPU / Controller Modules

• FC-CPU-0014: FSC Generation 2 central processing unit, single-slot, 64 KB user memory
• FC-CPU-0016: Enhanced FSC CPU with expanded diagnostics and 128 KB user memory
• FC-CPU-0018: Safety Manager CPU module, dual-redundant capable, Ethernet port integrated
• FC-RCOM-0002: Redundancy communication module for dual-CPU hot-standby configurations

Digital Input (DI) Modules

• FC-DI-0808: 8-channel 24 VDC digital input, 8 ms filter, SIL 2 rated
• FC-DI-1616: 16-channel 24 VDC digital input module, configurable input filter 1–30 ms
• FC-DI-0824: 8-channel 24 VDC DI with line fault detection per channel

Digital Output (DO) Modules

• FC-DO-0808: 8-channel 24 VDC digital output, 0.5 A per channel, short-circuit protected
• FC-DO-0816: 8-channel relay output module, SPDT contacts, 2 A at 250 VAC

Analog Input (AI) Modules

• FC-AI-0804: 8-channel 4–20 mA analog input, 12-bit resolution, HART pass-through
• FC-AI-0808: 8-channel ±10 VDC / 4–20 mA configurable AI, 14-bit resolution

Analog Output (AO) Modules

• FC-AO-0804: 4-channel 4–20 mA analog output, 12-bit, loop-powered diagnostics

Communication / Fieldbus Modules

• FC-COM-PBUS: PROFIBUS DP master/slave communication adapter, up to 12 Mbps
• FC-COM-MBUS: Modbus RTU/ASCII serial communication module, RS-485/RS-232

Quality Control for the FC Series Range

The Honeywell FC Series backplane uses a proprietary high-density connector system that is sensitive to contact oxidation and mechanical stress from repeated module insertion cycles. DriveKNMS applies a dedicated incoming inspection protocol for all FC Series modules:

• Visual inspection of backplane connector pins under 10× magnification; rejection threshold: any bent, corroded, or missing pin
• Powered bench test at rated input voltage (85 VAC and 264 VAC for UNI-range PSUs) with calibrated load bank at 50%, 75%, and 100% rated output
• Output ripple measurement: must be ≤ 50 mV peak-to-peak at full load per Honeywell specification
• Thermal soak: 30-minute operation at full load in 40°C ambient to verify thermal management integrity
• Firmware version verification for CPU and communication modules against Honeywell compatibility matrix
• Final functional test in a live FSC/Safety Manager chassis with known-good backplane before dispatch review
