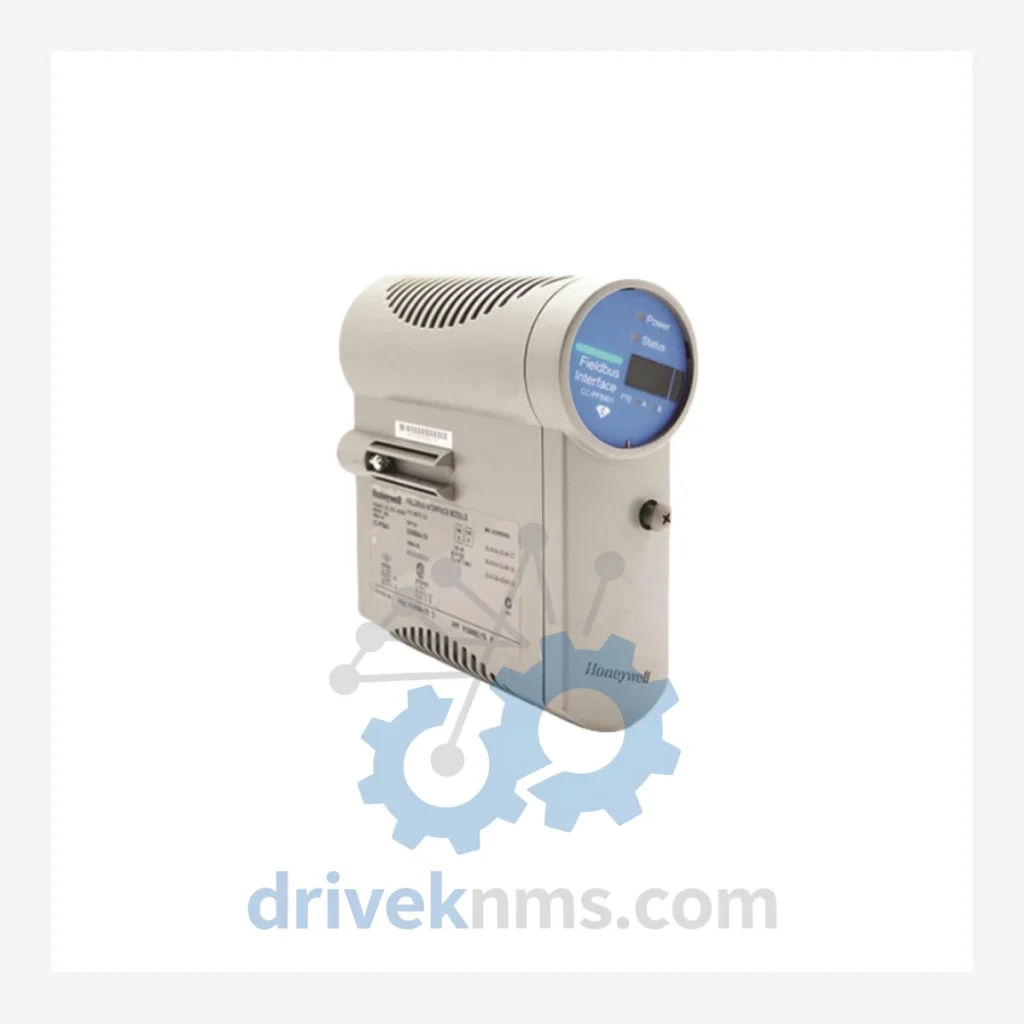

Honeywell Series C Modules: FC-PUI001

Technical Dossier

Product Details And Specifications

Honeywell Series C Technical Notes

The Honeywell Series C I/O platform is a foundational distributed control system (DCS) architecture deployed across global heavy industry, including petrochemical refineries, nuclear power generation facilities, offshore platforms, and large-scale chemical processing plants. Built on Honeywell's TotalPlant Solution (TPS) and PlantScape infrastructure, Series C modules provide the field interface layer between process instrumentation and the supervisory control network. Their ruggedized backplane design, deterministic scan cycle, and redundancy support have made them a long-term fixture in facilities with 20–40 year operational horizons. DriveKNMS maintains an active inventory of Series C modules to support ongoing maintenance, emergency replacement, and lifecycle extension programs worldwide.

The Evolution of Series C Architecture

Honeywell's Series C architecture emerged as part of the TDC 3000 and TPS control system generations, designed to interface with the Universal Control Network (UCN) and Local Control Network (LCN). Early Series C modules operated on a parallel backplane bus with fixed-slot addressing, requiring precise physical placement within the File/Cabinet assembly. As the platform matured through the 1990s and 2000s, Honeywell introduced enhanced variants with improved noise immunity, extended temperature ratings, and HART pass-through capability on analog I/O cards.

Compatibility across Series C generations is slot-type dependent: Power, AI, AO, DI, and DO modules are not interchangeable across different File types (e.g., PM File vs. HPM File). Engineers performing module substitutions must verify the File type, slot address, and firmware revision compatibility before replacement. With Honeywell having formally transitioned its DCS portfolio toward Experion PKS, the Series C platform is now in a sustained-support phase. Spare parts availability from OEM channels is increasingly constrained, making third-party certified inventory sources critical for plant continuity.

Series C Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly deployed modules within the Honeywell Series C ecosystem. Modules are categorized by functional type.

Power & Infrastructure

• FC-PUI001: Series C Universal I/O Power Supply Interface module for PM/HPM File assemblies.
• FC-PSU001: Primary 24 VDC power supply unit for Series C File; supports redundant power configuration.
• FC-PSU002: Redundant power supply module; hot-swap capable within active File assembly.
• FC-TSAI01: Terminal assembly for Series C analog input channels; field wiring termination block.
• FC-TSDO01: Terminal assembly for Series C digital output channels; 24 VDC sourcing type.

Analog Input (AI) Modules

• FC-SAI-1620M: 16-channel analog input, 4–20 mA, with HART revision 5 pass-through support.
• FC-SAI-0820M: 8-channel analog input, 4–20 mA; standard resolution, non-HART variant.
• FC-SAIM01: Multiplexed analog input module; 32-channel configuration for high-density I/O files.
• FC-SAI-1620H: 16-channel analog input with enhanced HART 7 support and diagnostics.

Analog Output (AO) Modules

• FC-SAO-0820M: 8-channel analog output, 4–20 mA; loop-powered, with open-loop detection.
• FC-SAO-1620M: 16-channel analog output, 4–20 mA; supports HART command pass-through.

Digital Input (DI) Modules

• FC-SDI-1624: 16-channel digital input, 24 VDC; optically isolated, with per-channel status LED.
• FC-SDI-1648: 16-channel digital input, 48 VDC; for legacy field device compatibility.
• FC-SDI-16120: 16-channel digital input, 120 VAC; for direct AC field signal interfacing.

Digital Output (DO) Modules

• FC-SDO-0824: 8-channel digital output, 24 VDC sourcing; relay-equivalent switching capacity.
• FC-SDO-1624: 16-channel digital output, 24 VDC; solid-state, with short-circuit protection.

Communication & Controller

• FC-RPSM01: Redundant process safety module; interfaces Series C I/O with Safety Manager network.
• FC-PPMM01: Process Point Manager module; local execution of control strategies within HPM.

Sourcing Hard-to-Find & Obsolete Series C Parts

All sourced modules undergo provenance verification to confirm they are genuine Honeywell-manufactured units, not counterfeit or rebranded alternatives. DriveKNMS provides documentation of module origin, test results, and firmware version upon request. For facilities operating under IEC 61511 or ISA 84 safety lifecycle requirements, traceability documentation is available to support management of change (MOC) procedures.

Quality Control for the Series C Range

Series C modules present specific test challenges due to their backplane-dependent communication architecture. Functional verification requires a compatible File assembly and active UCN/LCN network segment or a validated bench test rig that replicates the backplane bus protocol. DriveKNMS employs dedicated Series C test fixtures that simulate the HPM and PM File environments, enabling full functional verification of I/O channel accuracy, digital switching response, power rail stability, and communication handshake integrity.

Analog modules are tested against NIST-traceable signal sources to verify channel accuracy within published specifications (typically ±0.1% of span). Digital modules are cycled through full ON/OFF sequences with load simulation. Power supply modules are tested under full-rated load with ripple and regulation measurements recorded. All test data is retained and available for customer review upon request.
