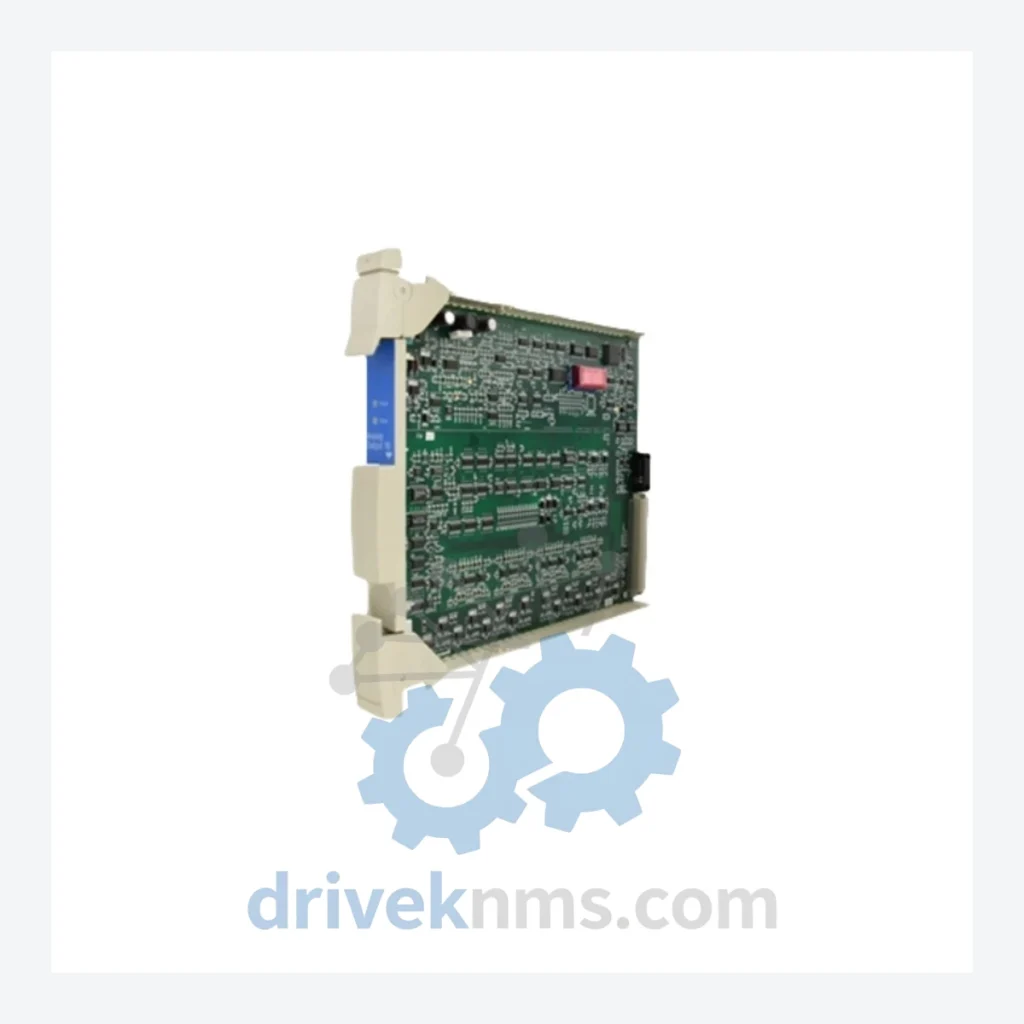

Honeywell FSC Series Modules: FC-TSRO-08UNI Digital Output Module

Technical Dossier

Product Details And Specifications

Honeywell FSC Series Technical Notes

The Evolution of FSC Architecture

The FSC platform was introduced by Fail-Safe Controls Ltd. and subsequently acquired and developed by Honeywell Process Solutions. The architecture evolved through several distinct generations. Early deployments used the FSC 1 and FSC 2 chassis with proprietary backplane communication and discrete I/O modules rated for SIL 2 operation. The FSC 3 generation introduced enhanced diagnostics, expanded I/O density, and support for HART pass-through on analog channels. The FC-series module designation — including the FC-TSRO-08UNI — represents the mature, standardized module family used in FSC 3.x and later rack configurations.

Compatibility across generations is constrained by backplane protocol versions and firmware revisions. Mixing FC-series modules with earlier FSC 1/2 hardware requires engineering validation. As of 2026, the FSC platform is in the mature/end-of-life phase; Honeywell has transitioned new projects to the Safety Manager SC (SMSC) platform. However, the FSC installed base remains extensive, and lifecycle extension support — including certified refurbished modules — is a primary requirement for asset-intensive industries with 20–30 year plant horizons.

FSC Series Full Catalog & Functionalities (SKU List)

Digital Output Modules

• FC-TSRO-08UNI: 8-channel universal digital output module, SIL 2 certified, relay output type, for ESD and F&G applications.
• FC-TSDO-0824H: 8-channel 24 VDC digital output, high-side switching, solid-state, SIL 2.
• FC-TSDO-0824L: 8-channel 24 VDC digital output, low-side switching, solid-state, SIL 2.
• FC-TSDO-08120: 8-channel 120 VAC digital output module, relay type, SIL 2.

Digital Input Modules

• FC-TSDI-0824H: 8-channel 24 VDC digital input, high-side sensing, SIL 2.
• FC-TSDI-0824L: 8-channel 24 VDC digital input, low-side sensing, SIL 2.
• FC-TSDI-08120: 8-channel 120 VAC digital input module, SIL 2.
• FC-TSDI-08230: 8-channel 230 VAC digital input module, SIL 2.

Analog Input Modules

• FC-TSAI-1620: 16-channel analog input, 4–20 mA, HART-capable, SIL 2.
• FC-TSAI-0820: 8-channel analog input, 4–20 mA, SIL 2.
• FC-TSAI-0810: 8-channel analog input, 1–5 VDC, SIL 2.

Analog Output Modules

• FC-TSAO-0820: 8-channel analog output, 4–20 mA, SIL 2.

CPU / Controller Modules

• FC-CPU-0014: FSC Central Processing Unit, 14-slot rack controller, dual-redundant capable.
• FC-CPU-0008: FSC CPU module, 8-slot rack variant, single or redundant configuration.
• FC-ELCL-0001: FSC Ethernet Link Controller, Modbus TCP and OPC gateway module.

Power Supply Modules

• FC-PSU-0024: 24 VDC power supply module for FSC rack, redundant-capable.
• FC-PSU-0048: 48 VDC power supply module, for high-voltage rail configurations.

Communication Adapters

• FC-ELCL-0002: FSC Profibus DP communication adapter, master/slave configurable.
• FC-ELCL-0003: FSC Foundation Fieldbus H1 link controller.

Quality Control for the FSC Series Range

FSC modules present specific test challenges due to their safety-rated backplane communication protocol and internal self-diagnostic architecture. DriveKNMS applies a dedicated test procedure for FC-series hardware: each module is bench-powered using an FSC-compatible rack and power supply, and all I/O channels are exercised under load conditions representative of field wiring. For digital output modules such as the FC-TSRO-08UNI, relay contact integrity, coil resistance, and switching response time are measured against OEM specifications. CPU modules undergo full memory integrity checks and firmware version verification. Communication modules are tested for protocol handshake, data throughput, and error-frame rejection. Modules that fail any parameter are quarantined and not offered for sale. All passed units are labeled with a DriveKNMS QC tag and serialized test record.
