Honeywell FC-USI Series Modules: FC-USI-0001 Universal Safety Interface CC

Technical Dossier

Product Details And Specifications

Honeywell FC-USI Series Technical Notes

The Evolution of FC-USI Architecture

The FC-USI series emerged from Honeywell's FSC (Fail-Safe Controller) platform lineage, which traces its origins to the TÜV-certified safety systems developed in the 1990s under the Quadlog and FSC product families. As the Safety Manager platform matured through the SM 2.x and SM 3.x firmware generations, the FC-USI module family was standardized to provide a unified interface layer compatible with both legacy FSC backplanes and the newer Safety Manager Extended (SMX) chassis.

Early FC-USI revisions used parallel bus communication with discrete wire termination. Subsequent hardware revisions introduced HART pass-through capability, enabling field device diagnostics without breaking the safety loop. The current generation supports dual-redundant module configurations (1oo2D voting logic) and is compatible with Honeywell's Safety Builder engineering environment. Compatibility constraints exist between early Rev A/B hardware and SM firmware versions above 3.4 — a critical consideration for sites performing controller upgrades without full I/O replacement.

FC-USI Full Catalog & Functionalities (SKU List)

The following SKUs represent the verified FC-USI series module range. Each entry reflects a distinct hardware function within the Safety Manager I/O subsystem:

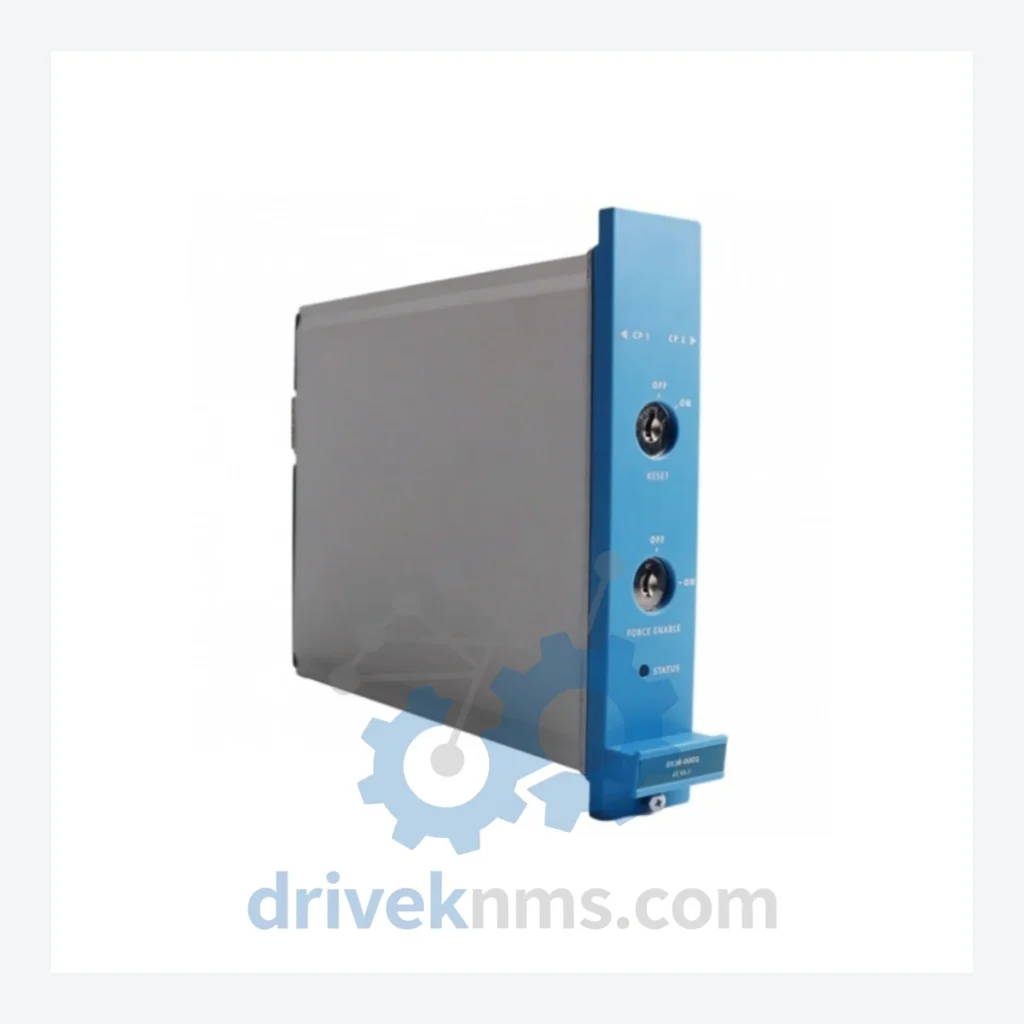

FC-USI-0001: Universal Safety Interface CC module; certified SIL 2/3 field interface for Safety Manager backplane.
FC-USI-0002: Universal Safety Interface module, standard variant; analog input signal conditioning with galvanic isolation.
FC-USI-0003: Universal Safety Interface, digital input variant; 24 VDC discrete input, 16-channel, SIL 2 rated.
FC-USI-0004: Universal Safety Interface, digital output variant; 24 VDC solid-state output, 8-channel, fault-tolerant.
FC-USI-0005: Universal Safety Interface, analog output variant; 4–20 mA output, HART-enabled, SIL 2 certified.
FC-USI-0006: Universal Safety Interface, thermocouple input module; multi-type TC input with CJC compensation.
FC-USI-0007: Universal Safety Interface, RTD input module; Pt100/Pt1000 resistance temperature input, 8-channel.
FC-USI-0008: Universal Safety Interface, high-density DI module; 32-channel 24 VDC discrete input, compact form factor.
FC-USI-0009: Universal Safety Interface, relay output module; 8-channel dry contact relay, SIL 2 rated.
FC-USI-0010: Universal Safety Interface, pulse input module; frequency/pulse counting input for flow measurement loops.
FC-USI-0011: Universal Safety Interface, HART multiplexer module; enables HART device management across multiple AI channels.
FC-USI-0012: Universal Safety Interface, redundant power feed module; dual-feed 24 VDC backplane power distribution.
FC-USI-0013: Universal Safety Interface, communication adapter; Modbus RTU/TCP gateway for third-party system integration.
FC-USI-0014: Universal Safety Interface, solenoid driver module; 24 VDC solenoid valve output, line fault detection.
FC-USI-0015: Universal Safety Interface, vibration monitor input; 4-channel proximity probe / velocity input for rotating machinery protection.
FC-USI-0016: Universal Safety Interface, extended analog input; 8-channel 4–20 mA AI with open-wire and short-circuit diagnostics.
FC-USI-0017: Universal Safety Interface, bus terminator module; backplane bus end-of-line termination for chassis integrity.
FC-USI-0018: Universal Safety Interface, SIL 3 analog input; dedicated high-integrity AI for SIL 3 loop applications.

Sourcing Hard-to-Find & Obsolete FC-USI Parts

DriveKNMS maintains a dedicated inventory of FC-USI series modules sourced through certified secondary market channels. All units are subject to provenance verification, including original manufacturer labeling, revision-level confirmation, and firmware compatibility screening. For sites operating legacy Safety Manager installations with no near-term migration budget, DriveKNMS provides lifecycle extension support including: module-level replacement supply, cross-reference to compatible substitute part numbers, and technical consultation on revision compatibility between FC-USI hardware and installed SM firmware versions. Inquiries for bulk quantities, emergency replacement, or long-term supply agreements are handled directly by the technical sales team.

Quality Control for the FC-USI Range

FC-USI modules incorporate a multi-layer backplane bus architecture with dedicated safety communication channels that require specialized test procedures beyond standard I/O bench testing. DriveKNMS applies the following verification protocol to all FC-USI units processed through its facility:
