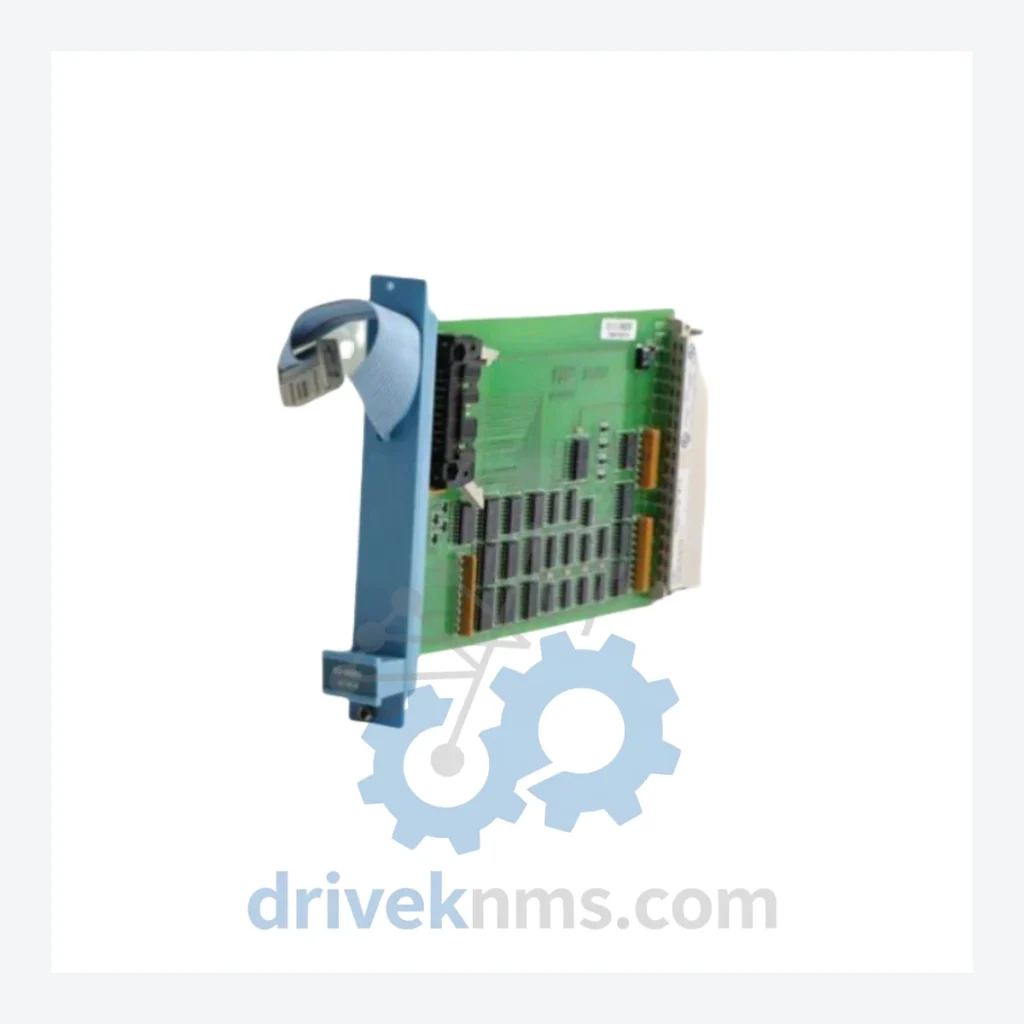

Honeywell FS Series Modules: FS-IO-0001 Input/Output Extender Module

Technical Dossier

Product Details And Specifications

Honeywell FS Series Technical Notes

The Evolution of FS Series Architecture

The Honeywell FS Series was introduced as a purpose-built fire and gas safety controller to replace legacy relay-based detection panels in process industries. Early-generation FS controllers used proprietary loop communication protocols with limited diagnostic transparency. Subsequent hardware revisions introduced enhanced self-test routines, expanded I/O channel counts per module, and improved EMC shielding to meet IEC 61000 requirements for industrial environments. The FS-IO-0001 Input/Output Extender Module represents the distributed I/O expansion layer of this architecture, enabling the base controller to supervise additional field device loops beyond the native backplane capacity. As the FS Series has matured into a stable, widely-installed platform, the focus for current operators has shifted from new deployment to lifecycle management: sourcing replacement modules, maintaining firmware compatibility across mixed hardware revisions, and managing the transition to successor platforms such as the Honeywell FSC (Fail-Safe Controller) and Safety Manager SC where applicable. Backward compatibility between FS Series I/O modules and updated controller firmware versions must be verified on a per-revision basis prior to installation.

FS Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the Honeywell FS Series fire and gas safety system platform. Modules are categorized by functional role within the system architecture.

I/O Extension & Field Interface Modules

• FS-IO-0001: Input/Output Extender Module — expands supervised field device loop capacity beyond base controller backplane.
• FS-IO-0002: Analog Input Module — 4–20 mA loop-powered channel interface for gas detector transmitters.
• FS-IO-0004: Digital Input Module — supervised discrete input channels for manual call points and detector alarm contacts.
• FS-IO-0008: Digital Output Module — supervised relay output channels for alarm annunciation and suppression actuation.
• FS-IO-0016: High-Density I/O Module — combined DI/DO channel module for compact panel configurations.

Controller & Processor Modules

• FS-CPU-0001: Central Processing Unit — primary safety logic controller with redundant watchdog and self-test diagnostics.
• FS-CPU-0002: Redundant CPU Module — hot-standby processor for fault-tolerant controller configurations.
• FS-PROC-0001: Communication Processor — manages Modbus RTU and Modbus TCP/IP upstream SCADA interface.

Power Supply Modules

• FS-PSU-0001: 24 VDC Power Supply Module — primary rail supply for backplane and field loop power.
• FS-PSU-0002: Redundant Power Supply Module — N+1 power redundancy module for continuous availability configurations.
• FS-PSU-0004: Battery Backup Interface Module — interfaces sealed lead-acid or NiMH standby battery to system power rail.

Communication & Network Adapter Modules

• FS-COM-0001: RS-485 Communication Adapter — multi-drop serial bus interface for legacy detector loop protocols.
• FS-COM-0002: Ethernet Communication Module — 10/100 Mbps TCP/IP interface for DCS integration and remote diagnostics.
• FS-COM-0004: Profibus DP Adapter — fieldbus interface for integration with Profibus-based DCS platforms.

Backplane & Chassis Components

• FS-BP-0008: 8-Slot Backplane Assembly — base chassis for mounting up to 8 FS Series I/O or communication modules.
• FS-BP-0016: 16-Slot Backplane Assembly — extended chassis for high-density panel configurations.

Quality Control for the FS Series Range

FS Series modules incorporate proprietary backplane bus communication and supervised loop wiring that require function-specific test procedures beyond standard power-on verification. DriveKNMS applies the following quality control steps to all FS Series units processed through its facility: visual inspection of backplane connector pins and PCB surface for corrosion, mechanical damage, or evidence of prior repair; powered functional test using a compatible FS Series controller chassis to verify module enumeration, channel self-test pass/fail status, and communication bus acknowledgment; loop simulation testing on I/O modules using calibrated signal sources to verify input threshold accuracy and output relay actuation at rated load; firmware revision identification and documentation to confirm compatibility with the target controller version; and final ESD-safe packaging with individual module identification labeling. Units that do not pass all test stages are quarantined and not offered for sale.
