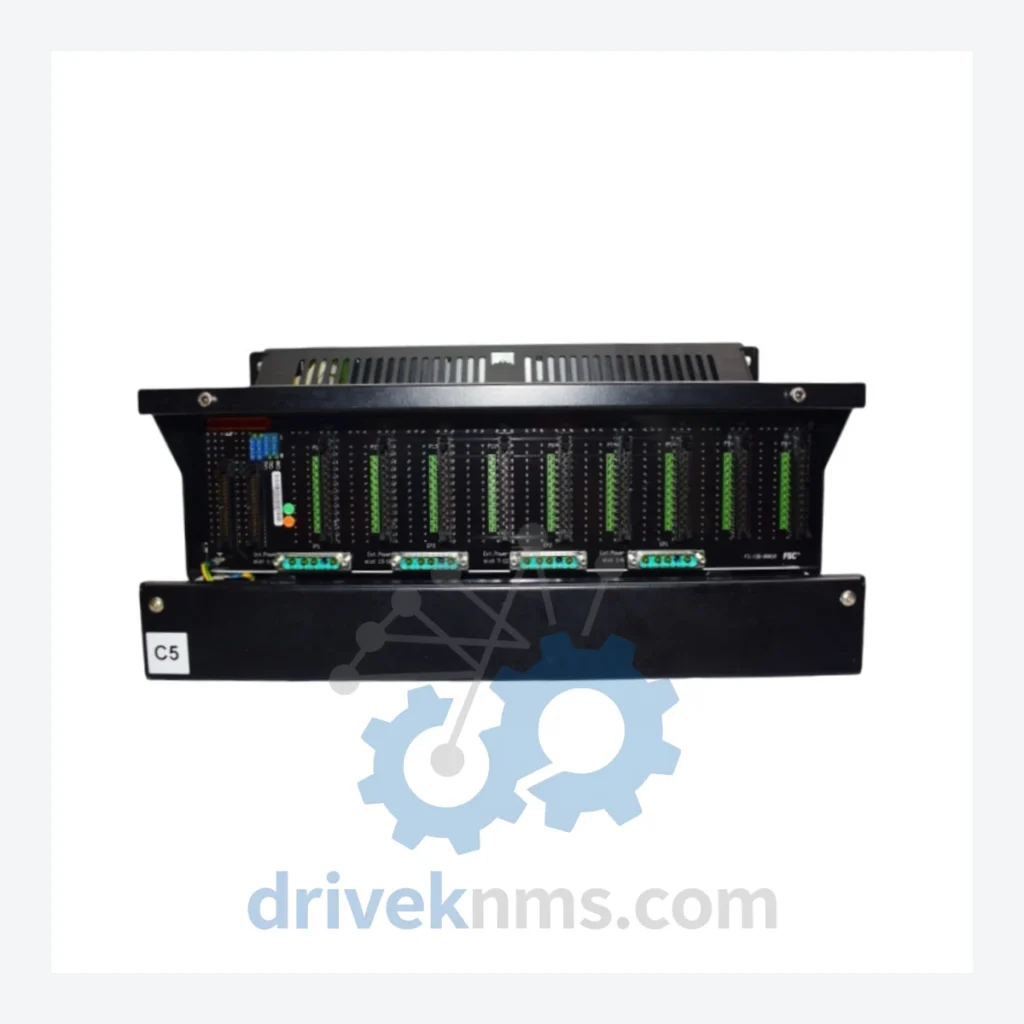

Honeywell FS-IOBUS-HBR I/O Bus Chassis – Obsolete Safety Manager Spare Part

Technical Dossier

Product Details And Specifications

Honeywell FS-IOBUS-HBR I/O Bus Chassis – Obsolete Safety Manager Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters not independently verified. Specifications are based on known system architecture. No parameters are fabricated. Buyers are advised to cross-reference with original Honeywell documentation.

Solving the Discontinued Hardware Crisis

For plant managers and reliability engineers operating legacy SIS infrastructure, the strategic calculus is straightforward: the cost of one verified spare FS-IOBUS-HBR chassis is a fraction of one day of unplanned production loss, and an order of magnitude less than the engineering mobilization cost for an emergency migration. Extending the operational life of a Safety Manager installation by 5 to 10 years through targeted spare parts management is not a workaround — it is a recognized asset lifecycle strategy used by major operators in the refining and petrochemical sectors. The approach involves three elements: maintaining a minimum of one cold-spare chassis per installed Safety Manager cabinet, establishing a documented inspection cycle for I/O bus connectors and backplane contacts, and retaining a qualified Honeywell Safety Manager engineer on contract for periodic system health reviews. This strategy defers capital expenditure while maintaining SIL compliance, provided the installed base remains within the original validated configuration.

Condition & Reliability Assurance

Discontinued hardware sourced from the secondary market carries inherent risk. DriveKNMS applies a structured 5-step qualification process to every FS-IOBUS-HBR unit before it is offered for sale:

• Step 1 – Visual and Mechanical Inspection: Full examination of the chassis frame, backplane connector pins, and module retention mechanisms. Any unit with bent pins, cracked housing, or evidence of thermal stress is rejected.
• Step 2 – Electrolytic Capacitor Assessment: Aging electrolytic capacitors are a primary failure mode in legacy industrial hardware. Each unit is inspected for capacitor bulging, leakage, and ESR deviation. Units with suspect capacitors are either reconditioned by qualified technicians or removed from inventory.
• Step 3 – Firmware and Label Verification: Where applicable, firmware revision markings and hardware revision labels are cross-referenced against known Honeywell Safety Manager revision history to confirm compatibility with the target system version.
• Step 4 – Connector and Pin Corrosion Check: I/O bus connector contacts are inspected under magnification for oxidation, corrosion, and mechanical wear. Contact surfaces are cleaned and assessed for conductivity integrity.
• Step 5 – Functional Bench Test: Units are powered and subjected to a functional verification sequence prior to packaging. Only units that pass all five stages are released for sale.

Key Features for System Maintenance

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

Q: Can this chassis be used with Safety Manager SC (SMSC)?
A: No. The FS-IOBUS-HBR is specific to the original Safety Manager platform. It is not compatible with the Safety Manager SC architecture. Confirm your installed system version before ordering.
