Honeywell FS-PDC-CPX05 Power Distribution Board – Obsolete FSC Spare Part

Technical Dossier

Product Details And Specifications

Honeywell FS-PDC-CPX05 Power Distribution Board – Obsolete FSC Spare Part

When a power distribution board fails inside a Honeywell FSC (Fail Safe Controller) cabinet, the consequences extend far beyond a single module replacement. The FSC platform — deployed across oil & gas, petrochemical, and power generation facilities worldwide — is deeply embedded in safety instrumented systems (SIS) that took years and millions of dollars to engineer, validate, and certify. A forced migration away from this platform due to a single unavailable component can trigger full SIL re-validation, new engineering contracts, extended plant shutdowns, and capital expenditure that routinely exceeds seven figures.

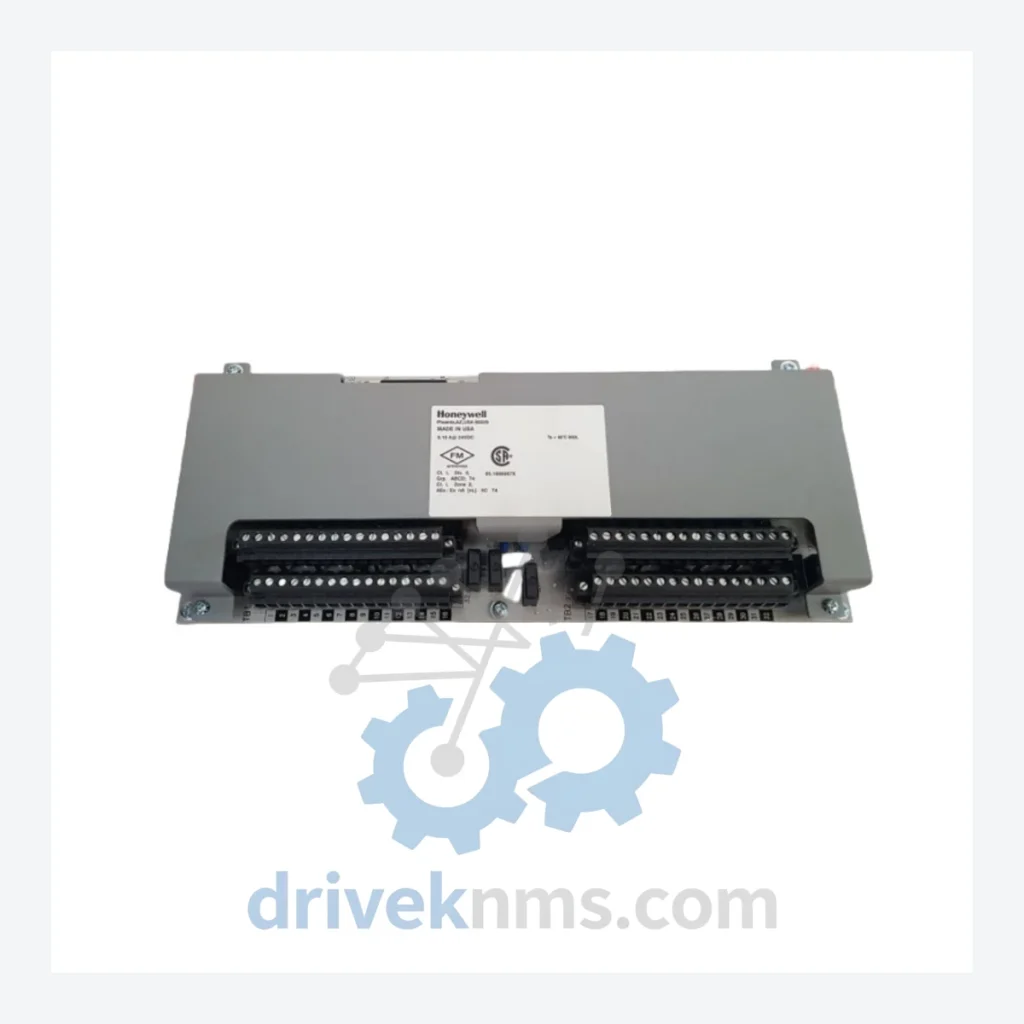

The FS-PDC-CPX05 is one such component: a power distribution board that sits at the heart of the CPX controller cabinet, distributing regulated power to I/O modules and processor cards. DriveKNMS holds RFQ-reviewed sourcing status of this discontinued unit. Procurement windows for obsolete FSC hardware are narrow and unpredictable — once the market supply is exhausted, it does not return.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters specific to this board are not published in open documentation. DriveKNMS does not fabricate specifications. Contact us for verified datasheet access under NDA if required.

Solving the Discontinued Hardware Crisis

The Honeywell FSC platform was the industry standard for safety-critical process control through the 1990s and 2000s. Many facilities running FSC-based SIS are now caught between two equally costly options: continue operating aging hardware with no manufacturer support, or fund a full system migration that disrupts production for months.

The FS-PDC-CPX05 power distribution board is not a peripheral component — it is the backbone of cabinet power integrity. Without it, the entire CPX cabinet loses the ability to deliver stable, regulated power to processor and I/O cards, rendering the safety system inoperable. There is no modern drop-in equivalent from Honeywell's current portfolio. Facilities that have not secured spare units face a hard stop the moment this board degrades.

Condition & Reliability Assurance

DriveKNMS applies a 5-step quality assurance process to all obsolete hardware before dispatch review:

• Step 1 – Visual & Mechanical Inspection: Full board inspection for physical damage, burnt traces, cracked solder joints, and connector pin integrity.
• Step 2 – Electrolytic Capacitor Assessment: Aging electrolytic capacitors are the primary failure mode in boards of this era. Each capacitor is tested for ESR (Equivalent Series Resistance) and capacitance drift. Units with degraded capacitors are either recapped or rejected.
• Step 3 – Firmware & Configuration Verification: Where applicable, firmware version is confirmed against known FSC compatibility matrices. No unauthorized firmware modifications are made.
• Step 4 – Pin & Connector Corrosion Check: All edge connectors and backplane pins are inspected under magnification and cleaned to IPC-A-610 standards where corrosion is detected.
• Step 5 – Functional Power-On Test: Units are powered and tested for correct output rail behavior prior to packaging.

Key Features for System Maintenance

• Drop-in replacement: The FS-PDC-CPX05 installs directly into the CPX cabinet backplane without mechanical modification.
• No reprogramming required: Power distribution boards do not carry application logic. Replacement does not require PLC reprogramming, SIL re-validation, or engineering intervention beyond standard maintenance procedures.
• Avoids engineering reconstruction costs: Substituting this board with a non-OEM alternative or attempting cabinet redesign introduces certification risk. An original Honeywell FS-PDC-CPX05 preserves the as-built system configuration and its associated safety certification basis.
• Long-term sparing strategy: Facilities running FSC systems should treat this board as a consumable asset. Holding 1–2 spare units per cabinet is standard practice among operators committed to 5–10 year extended asset life plans.

Q: Should I buy more than one unit?
A: For any facility running a single FSC CPX cabinet, holding at least one spare FS-PDC-CPX05 is the minimum prudent position. For multi-cabinet installations or facilities with no planned migration within 5 years, two to three units per cabinet is the standard recommendation among reliability engineers working on legacy SIS asset life extension programs.

Q: Can this board be used in a different Honeywell FSC cabinet variant?
A: Compatibility is specific to the CPX cabinet configuration. Contact DriveKNMS with your full cabinet part number and we will confirm compatibility before dispatch review.
