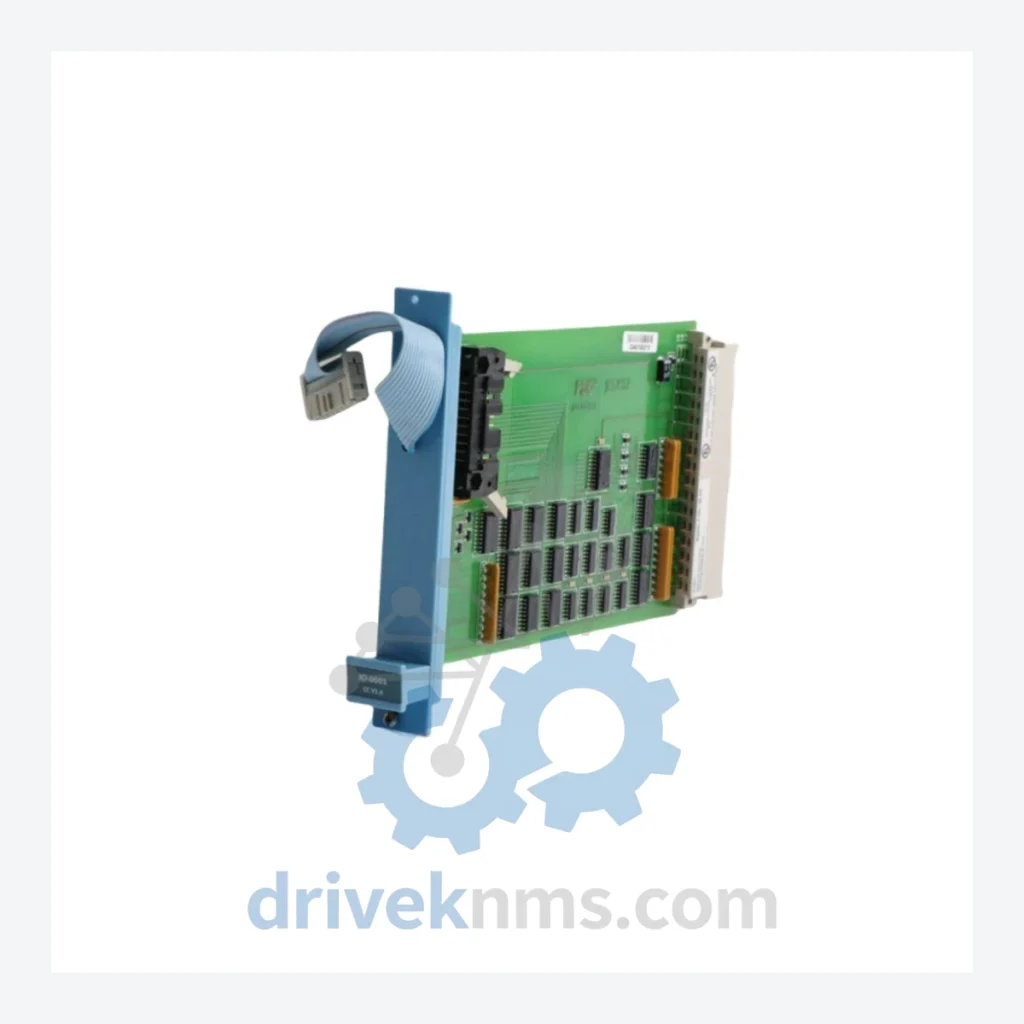

Honeywell FS-SAI Series Modules – FS-SAI-1620m Analog Input Module 24VDC 16-Channel

Name: Honeywell FS-SAI Series Modules – FS-SAI-1620m Analog Input Module 24VDC 16-Channel
Brand: Honeywell

Model: FS-SAI-1620m

Brand Honeywell

Series FS-SAI-1620m Analog Input Module 24VDC 16-Channel

Model FS-SAI-1620m

RFQ-ready model route Obsolete and surplus sourcing Export follow-up by model list

Product Overview

Commercial availability is handled through direct RFQ, model verification and export-oriented follow-up rather than public cart checkout.

Submit RFQ Email This Model

Datasheet Preview

Use attached product manuals when available. If the manual is not public yet, request the full file directly through RFQ.

Request Full Manual

Commercial Path

Use This Page To Confirm The Model, Then Move To RFQ

Product pages on DRIVEKNMS are designed to verify model, brand and series first, then move the buyer into one clean quotation path.

Technical Dossier

Product Details And Specifications

Honeywell FS-SAI Series Technical Notes

The Honeywell FS-SAI series represents the analog input module family within the Honeywell Safety Manager (FSC) platform — a fail-safe, IEC 61508 SIL 2/3-certified distributed control and safety instrumented system deployed across global heavy industry. Installations span petrochemical complexes, offshore oil & gas platforms, nuclear power generation facilities, LNG terminals, and continuous-process refineries. The FSC platform, of which the FS-SAI modules form a critical I/O layer, has accumulated decades of field-proven runtime in environments where functional safety is a non-negotiable operational requirement. The FS-SAI-1620m specifically provides 16 channels of analog input acquisition at 24VDC, interfacing field transmitters (4–20 mA HART-compatible signals) directly to the FSC safety CPU backplane. Its modular form factor allows hot-swap replacement within redundant rack configurations without process interruption, a key requirement in continuous-operation facilities.

The Evolution of FS-SAI Architecture

The Honeywell FSC (Fail-Safe Controller) platform was introduced in the early 1990s as a dedicated safety instrumented system (SIS) architecture, distinct from Honeywell's TDC 3000 and Experion PKS process control lines. The FS-SAI module family evolved through several hardware revisions aligned with IEC 61508 edition updates and increasing field bus integration demands.

Early FSC generations used parallel backplane communication with fixed-channel-count I/O modules. As SIL certification requirements tightened under IEC 61511 (functional safety for the process industry sector), Honeywell introduced enhanced diagnostic coverage modules — including the FS-SAI-1620m — with per-channel open-circuit, short-circuit, and out-of-range fault detection. Later revisions added HART pass-through capability, enabling asset management integration via Honeywell's Field Device Manager (FDM) without additional hardware.

The FSC platform reached end-of-active-development status, with Honeywell transitioning customers toward the Safety Manager SC (SMSC) platform. However, the installed base of FSC systems in long-lifecycle industries (nuclear, refining, offshore) means FS-SAI modules remain in active demand for corrective maintenance, periodic proof testing replacements, and lifecycle extension programs well into the 2030s. Backward compatibility between FSC hardware revisions is limited; module substitution requires verification against the specific FSC system version and I/O configuration database.

FS-SAI Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the Honeywell FSC / Safety Manager FS-SAI and associated I/O module range. Modules are classified by functional category.

Analog Input Modules (AI)

FS-SAI-1620m: 16-channel analog input, 24VDC, 4–20 mA, SIL 2/3, HART-compatible, hot-swap capable
FS-SAI-0820m: 8-channel analog input, 24VDC, 4–20 mA, reduced-density variant for smaller rack configurations
FS-SAI-1620: 16-channel analog input, 24VDC, non-HART legacy variant; predecessor to the FS-SAI-1620m
FS-SAI-0820: 8-channel analog input, 24VDC, non-HART legacy variant

Analog Output Modules (AO)

FS-SAO-0420m: 4-channel analog output, 24VDC, 4–20 mA, HART pass-through, SIL 2 rated
FS-SAO-0420: 4-channel analog output, 24VDC, legacy non-HART variant

Digital Input Modules (DI)

FS-SDI-3224: 32-channel digital input, 24VDC, solid-state, high-density field interface
FS-SDI-1624: 16-channel digital input, 24VDC, standard-density, per-channel diagnostics
FS-SDI-1648: 16-channel digital input, 48VDC, for legacy field wiring at elevated voltage
FS-SDI-0824: 8-channel digital input, 24VDC, compact form factor for space-constrained racks

Digital Output Modules (DO)

FS-SDO-0824: 8-channel digital output, 24VDC, solid-state relay, SIL 2 rated
FS-SDO-0824R: 8-channel digital output, 24VDC, relay contact output variant
FS-SDO-1624: 16-channel digital output, 24VDC, high-density solid-state

CPU & Communication Modules

FS-CPU-0100: FSC Safety Manager central processing unit, dual-redundant capable, IEC 61508 SIL 3
FS-COM-0200: Modbus RTU / TCP communication adapter for FSC backplane, DCS integration interface
FS-COM-0300: PROFIBUS DP communication module, FSC to DCS fieldbus gateway

Power Supply Modules

FS-PSU-0100: FSC rack power supply, 24VDC input, redundant-capable, hot-swap
FS-PSU-0200: FSC rack power supply, 120/240VAC input, for AC-powered cabinet configurations

Quality Control for the FS-SAI Range

Each FS-SAI module processed by DriveKNMS undergoes a structured inspection and functional test protocol designed around the specific backplane communication architecture and analog signal chain of the FSC platform.
