Honeywell FSC Safety Manager FC Series: Comprehensive Module Range and Technical Overview

The Honeywell FSC (Fail Safe Controller) Safety Manager, marketed under the FC-series module designation, is a dedicated safety instrumented system (SIS) platform deployed across high-hazard continuous process industries. Installations span petrochemical complexes, LNG terminals, nuclear power auxiliary systems, offshore platforms, and refinery units where IEC 61511 / IEC 61508 SIL 2 and SIL 3 compliance is a regulatory baseline. The FSC platform operates as a standalone safety layer or in integrated configurations with Honeywell Experion PKS distributed control systems via the Safety Builder engineering environment. Its redundant processor architecture, deterministic scan cycle, and certified I/O subsystems make it one of the most widely installed legacy SIS platforms in global heavy industry, with an installed base spanning installations commissioned from the early 1990s through the 2010s.

The Evolution of FSC Architecture

The FSC platform was introduced by Fail Safe Systems (later acquired by Honeywell) in the early 1990s as a dedicated hardware-based safety controller. The original architecture used single-processor configurations with discrete I/O modules communicating over a proprietary backplane bus. By the mid-1990s, the Quad Processor Pack (QPP) architecture was introduced, enabling 2oo4 (two-out-of-four) voting logic at the processor level — a significant advancement for SIL 3 applications without requiring external voting hardware.

The CC (Central Controller) designation, as seen in the FC-QPP-0002 CC V1.0, identifies the central processing unit assembly within the QPP chassis. Subsequent hardware revisions (V1.x through V2.x) introduced improved diagnostics coverage, expanded memory, and enhanced communication interfaces including Modbus RTU, PROFIBUS DP, and Ethernet-based links to Experion PKS. The FSC platform entered its mature/end-of-active-development phase circa 2015, with Honeywell positioning the Safety Manager SC (SMSC) as the forward migration path. However, the FSC remains in active operation at thousands of sites globally, sustaining strong demand for spare parts, repair, and lifecycle extension services.

FSC Safety Manager Full Catalog & Functionalities (SKU List)

Processor & Controller Modules

• FC-QPP-0002: Quad Processor Pack, 2oo4 voting CPU assembly, SIL 3 rated

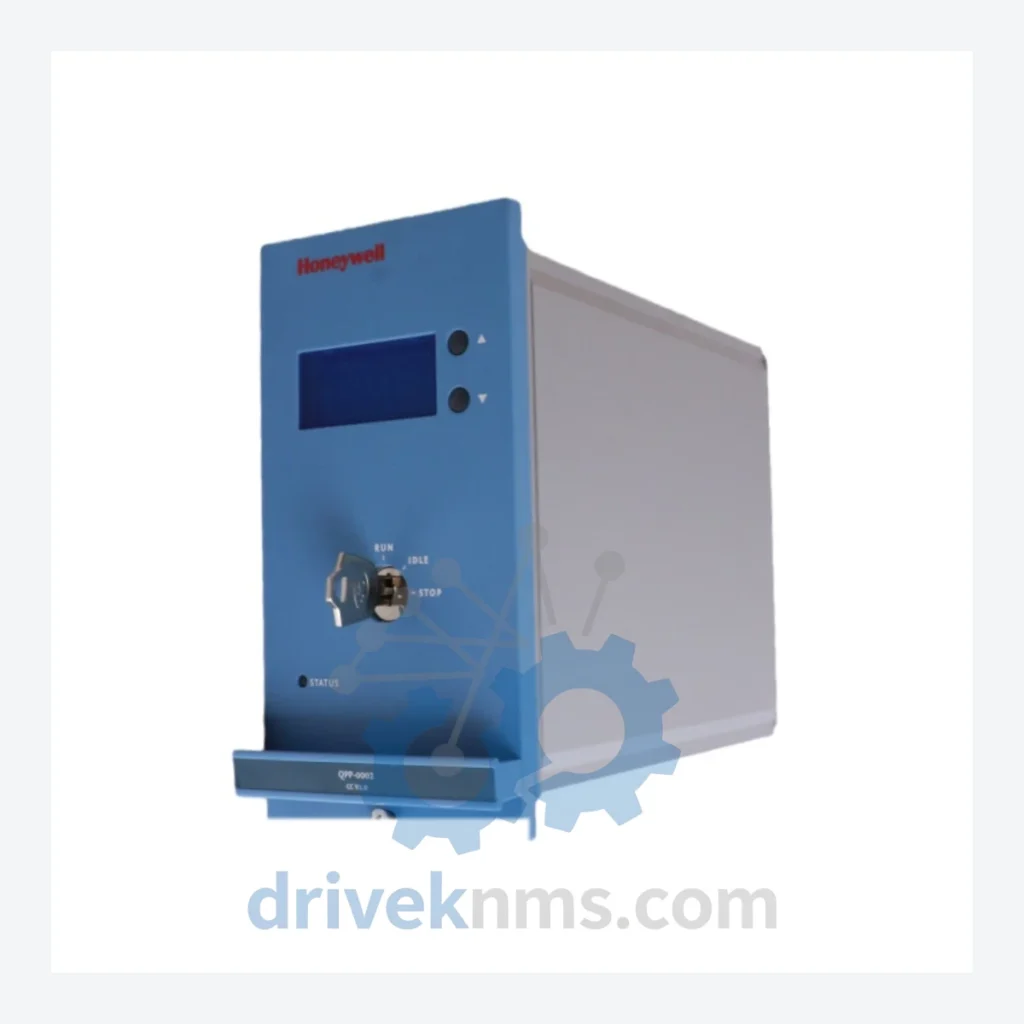

• FC-QPP-0002 CC V1.0: Central Controller card for QPP chassis, V1.0 hardware revision
• FC-QPP-0002 CC V2.0: Central Controller card, V2.0 revision with enhanced diagnostics
• FC-TSDI-0002: Triple redundant processor module, SIL 2/3 dual-channel
• FC-SDIL-0002: Single-channel digital input logic processor card

Digital Input (DI) Modules

• FC-DI-0816: 8-channel 24 VDC digital input module, isolated
• FC-DI-1624: 16-channel 24 VDC digital input, field-side isolated, SIL 2
• FC-DI-0824: 8-channel 120 VAC digital input module
• FC-SDIL-0824: Safe digital input module, 8-channel, loop-powered

Digital Output (DO) Modules

• FC-DO-0816: 8-channel 24 VDC digital output, solid-state, SIL 2
• FC-DO-0824: 8-channel relay output module, 120/240 VAC rated
• FC-SDOL-0816: Safe digital output, 8-channel, diagnostics-enabled

Analog Input (AI) Modules

• FC-AI-0808: 8-channel 4–20 mA analog input, HART-capable, SIL 2
• FC-SAIS-0808: Safe analog input module, 8-channel, with open-wire detection

Communication & Backplane Modules

• FC-RPSM-0001: Redundant power supply module for FSC chassis
• FC-PBUS-0001: PROFIBUS DP communication interface card
• FC-MBPL-0001: Modbus Plus / RTU gateway module
• FC-ECOM-0001: Ethernet communication module for Experion PKS integration
• FC-BKPL-0001: Backplane bus terminator and chassis interconnect card

Sourcing Hard-to-Find & Obsolete FSC Safety Manager Parts

Honeywell formally transitioned FSC Safety Manager to a limited lifecycle support status, with new hardware production discontinued for the majority of FC-series modules. For end-users operating FSC-based SIS installations, this creates a critical spare parts challenge: standard distribution channels no longer stock these modules, and lead times through OEM repair programs can exceed 16–24 weeks.

DriveKNMS maintains a dedicated inventory of FSC / FC-series modules sourced from decommissioned systems, certified refurbishment programs, and verified surplus channels. All units are catalogued by part number, hardware revision, and firmware version where applicable. For QPP assemblies such as the FC-QPP-0002, DriveKNMS stocks both complete assemblies and individual CC cards to support partial replacement scenarios without requiring full chassis replacement. Customers operating under long-term service agreements (LTSA) or plant turnaround schedules can request reserved allocation of critical spares.

Quality Control for the FSC Safety Manager Range

FSC modules present specific test challenges due to their redundant backplane architecture and internal voting logic. Standard bench power-up is insufficient to validate QPP assemblies; full functional verification requires a chassis-level test environment that replicates the 2oo4 voting bus and inter-processor communication protocol.

DriveKNMS applies the following verification procedures to all FC-series modules prior to dispatch: (1) Visual inspection for backplane connector wear, capacitor condition, and PCB integrity. (2) Powered functional test in a live FSC chassis with active I/O simulation. (3) Communication bus verification for PROFIBUS, Modbus, and Ethernet-linked modules. (4) Firmware revision confirmation and documentation. (5) 48-hour burn-in cycle for processor and QPP assemblies. All tested units are shipped with a test report and 12-month warranty against functional failure.
