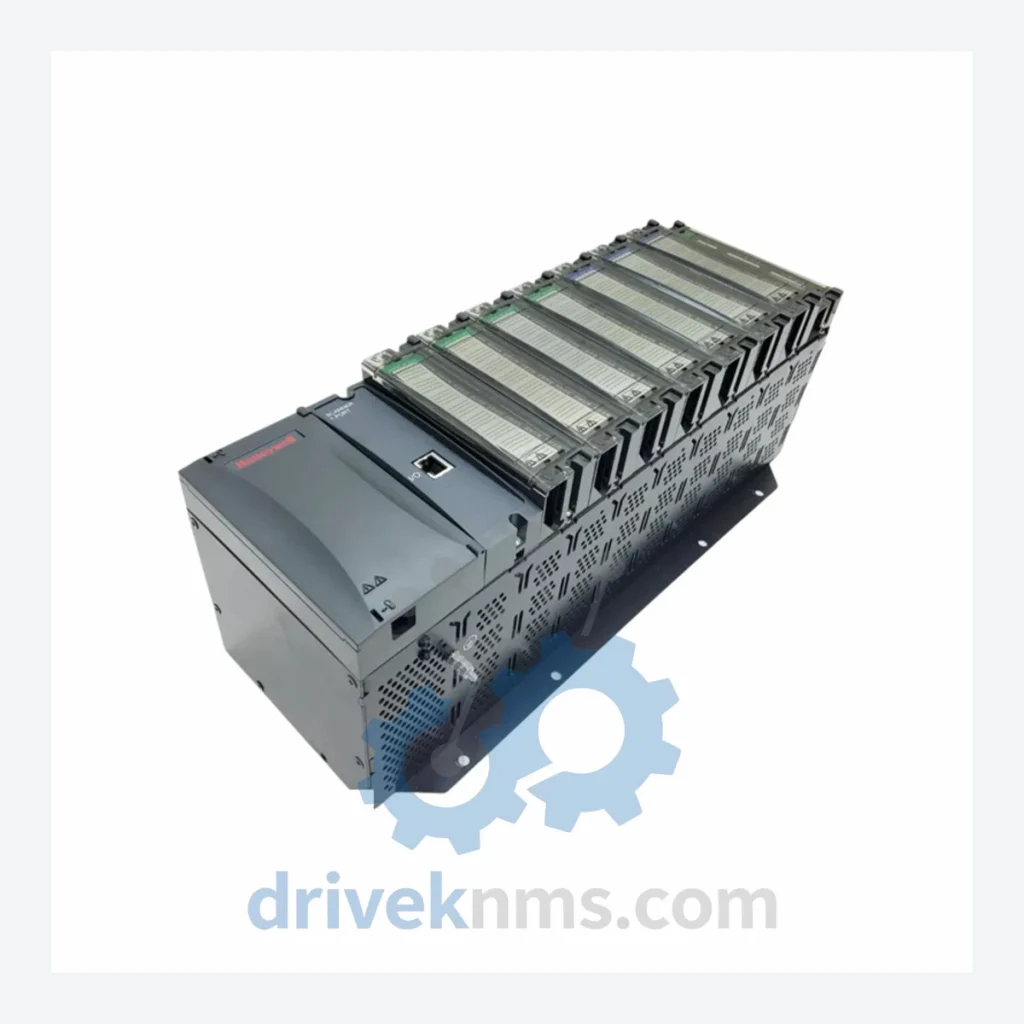

Honeywell HC900 Modules: HC900 900C53-0244-00 Analog Input Module —

Technical Dossier

Product Details And Specifications

Honeywell HC900 Series: Comprehensive Module Range and Technical Overview

The Honeywell HC900 Hybrid Controller is a process automation platform deployed across global heavy industry sectors including petrochemical refineries, nuclear power auxiliary systems, offshore platforms, pulp and paper mills, and pharmaceutical batch processing facilities. Its modular rack-based architecture supports both continuous and batch control strategies, making it one of the most widely installed mid-range DCS/hybrid controller platforms in North America, Europe, and Asia-Pacific. The HC900 system is engineered for high-availability environments where unplanned downtime carries significant operational and safety consequences. As a result, the installed base remains large and active, and demand for spare modules — including the HC900 900C53-0244-00 Analog Input Module — continues across the full system lifecycle.

The Evolution of HC900 Architecture

The HC900 platform was introduced by Honeywell in the early 2000s as a successor to legacy loop controller families, designed to bridge the gap between standalone PID controllers and full-scale DCS installations. The original architecture centered on a rack-mounted backplane supporting a dedicated CPU module, I/O modules, and a redundant power supply structure. Early revisions used a proprietary C-bus backplane for inter-module communication at fixed scan rates. Subsequent hardware generations introduced enhanced CPU modules with expanded memory, faster scan cycles, and Ethernet-based supervisory connectivity. The communication architecture evolved from serial RS-485 links to 10/100 Ethernet, enabling integration with Honeywell Experion PKS and third-party SCADA systems via Modbus TCP and OPC-DA/UA. Compatibility between early-generation I/O modules and later CPU revisions is generally maintained at the backplane level, though firmware alignment between CPU and I/O firmware revisions must be verified during any module substitution. The HC900 series has entered the mature/sustaining phase of its product lifecycle. Honeywell continues to provide firmware updates and technical support, but new hardware development has ceased. This lifecycle status makes long-term spare parts availability a critical operational concern for asset owners.

HC900 Full Catalog & Functionalities (SKU List)

The following SKUs represent the core module population of the HC900 system, organized by functional category. All models listed are verified HC900-series components.

Analog Input Modules

• 900C53-0244-00: 16-channel analog input, 4–20 mA / 0–10 V, 16-bit resolution, field-configurable signal type per channel
• 900C53-0143-00: 8-channel analog input, thermocouple/RTD/mV, cold junction compensation, 16-bit resolution
• 900C53-0142-00: 8-channel analog input, 4–20 mA / 0–10 V, isolated inputs, 16-bit resolution
• 900C53-0241-00: 16-channel analog input, thermocouple/RTD, multi-type sensor support, 16-bit resolution

Analog Output Modules

• 900C53-0250-00: 8-channel analog output, 4–20 mA, 12-bit resolution, loop-powered field devices
• 900C53-0251-00: 4-channel analog output, 4–20 mA, isolated outputs, 12-bit resolution

Digital Input Modules

• 900C53-0301-00: 32-channel digital input, 24 VDC, sink/source configurable, high-density I/O
• 900C53-0302-00: 16-channel digital input, 120 VAC, optically isolated, field wiring terminal base required
• 900C53-0303-00: 16-channel digital input, 24 VDC, with diagnostics per channel

Digital Output Modules

• 900C53-0351-00: 16-channel digital output, 24 VDC, 0.5 A per channel, solid-state transistor
• 900C53-0352-00: 8-channel relay output, Form C contacts, 2 A per channel, 120/240 VAC rated
• 900C53-0353-00: 16-channel digital output, 120 VAC, triac output, optically isolated

CPU / Controller Modules

• 900C53-0001-00: HC900 Controller CPU, standard scan rate, 10/100 Ethernet supervisory port, USB configuration port
• 900C53-0002-00: HC900 Controller CPU, enhanced version, expanded function block library, redundancy-ready

Communication & Network Modules

• 900C53-0101-00: Ethernet communication module, Modbus TCP master/slave, OPC-DA gateway function
• 900C53-0102-00: Profibus DP communication adapter, slave mode, supports up to 244 bytes I/O exchange

Power Supply Modules

• 900C53-0401-00: 24 VDC rack power supply, 5 A output, DIN rail or rack mount, redundant pair capable
• 900C53-0402-00: 120/240 VAC input power supply, 5 A DC output, universal input voltage range

Sourcing Hard-to-Find & Obsolete HC900 Parts

DriveKNMS maintains a dedicated inventory program for HC900 modules across all functional categories. As the HC900 platform has entered its sustaining lifecycle phase, OEM lead times for certain modules — particularly high-density analog input cards and legacy communication adapters — have extended significantly or become indefinite. DriveKNMS sources HC900 modules through verified industrial surplus channels, decommissioned plant asset recovery, and authorized distributor networks. Each unit is individually inspected and tested prior to dispatch. For end-users operating HC900 systems in critical process environments, DriveKNMS offers consignment stock arrangements and priority allocation for high-demand SKUs including the 900C53-0244-00, 900C53-0143-00, and 900C53-0301-00. Customers requiring long-term maintenance contracts or multi-year spare parts agreements are encouraged to contact our technical sales team directly.

Quality Control for the HC900 Range

HC900 modules present specific test challenges due to their backplane-dependent communication architecture and multi-channel analog signal conditioning circuits. DriveKNMS applies a structured test protocol for all HC900 modules prior to shipment. Analog input modules including the 900C53-0244-00 are bench-tested using calibrated signal sources across the full 4–20 mA and 0–10 V input ranges, with linearity and offset error verified against factory specification limits. Digital I/O modules are cycled through full channel activation sequences with load simulation. CPU modules are powered in an HC900 rack assembly and subjected to a full configuration load and scan cycle verification using Honeywell HC Designer software. Communication modules are tested for Modbus TCP frame integrity and response timing under simulated network load. All modules are inspected for capacitor condition, connector pin integrity, and conformal coating status before packaging.
