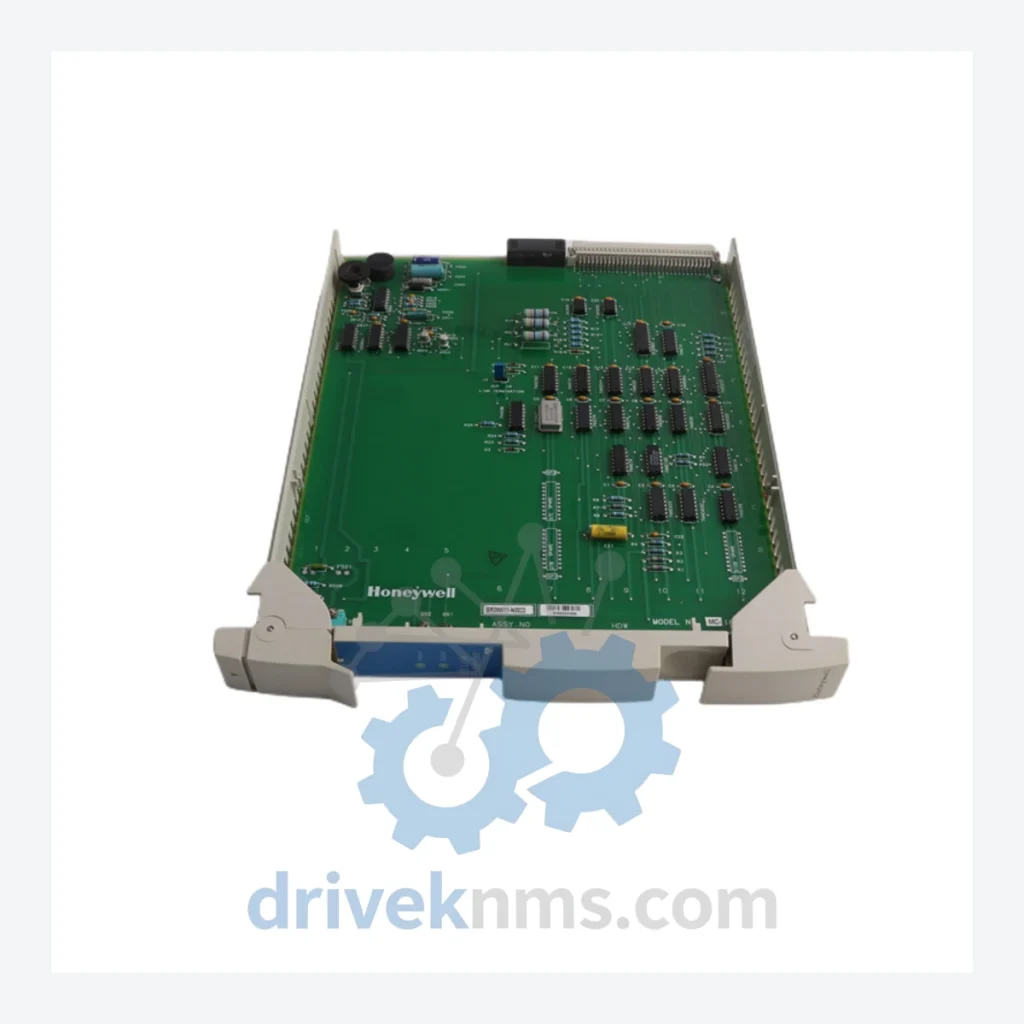

Honeywell MC-IOLX02 51304419-150 I/O Link Extender Module

Technical Dossier

Product Details And Specifications

Honeywell Experion PKS MC-Series Technical Notes

The MC-Series platform is engineered for redundancy, hot-swap capability, and deterministic scan times. Modules communicate over a proprietary high-speed serial backplane and are managed through Honeywell's Control Builder engineering environment. The series spans analog input, analog output, digital input, digital output, serial interface, and communication extender functions — all within a standardized form factor compatible with the IOTA (I/O Termination Assembly) mounting system.

The Evolution of Experion PKS MC-Series Architecture

Honeywell introduced the Experion PKS platform in 2001 as a successor to the TDC 3000 and PlantScape systems. The MC-Series I/O was designed from the outset to support the C200 and later C300 controllers, with the I/O Link serving as the primary communication backbone between controller and field termination assemblies.

Early deployments used the C200 Controller paired with first-generation MC-Series modules. As process complexity increased, Honeywell introduced the C300 Controller with enhanced processing capacity and support for FOUNDATION Fieldbus and HART pass-through. The MC-IOLX02 extender card was introduced to address physical distance limitations between controller cabinets and remote I/O enclosures — a common constraint in large refinery or power plant installations where field cabinets may be hundreds of meters from the control room.

Compatibility note: MC-Series modules are not interchangeable with Honeywell's newer Series C I/O or Safety Manager SC modules. Backplane pinouts, firmware protocols, and IOTA termination assemblies differ between generations.

Experion PKS MC-Series Full Catalog & Functionalities (SKU List)

Analog Input (AI) Modules

• MC-TAIH02: 8-channel 4–20 mA HART analog input, standard density, IOTA-mounted
• MC-TAIH04: 16-channel 4–20 mA HART analog input, high-density configuration
• MC-PAIH03: 8-channel analog input with HART, redundant-capable, process-rated
• MC-GPAI82: 8-channel general-purpose analog input, non-HART, legacy process applications

Analog Output (AO) Modules

• MC-TAOY22: 8-channel 4–20 mA HART analog output, standard density
• MC-PAOY22: 8-channel analog output, redundant-capable, HART-enabled
• MC-TAMT03: Analog output module with manual loader capability for valve positioner applications
• MC-TAMR03: Analog output with motor-rated drive interface, used in modulating valve control

Digital Input (DI) Modules

• MC-TDIY22: 32-channel 24 VDC digital input, standard density
• MC-PDIY22: 32-channel digital input, redundant-capable, process-rated
• MC-TDID12: 16-channel digital input, isolated, for high-voltage field signals

Digital Output (DO) Modules

• MC-TDOY22: 32-channel 24 VDC digital output, standard density, solid-state
• MC-PDOX02: 16-channel digital output, redundant-capable, relay-isolated

Serial & Communication Interface Modules

• MC-TSIM12: Serial interface module, RS-232/RS-485, for third-party device integration
• MC-PD1X02: PROFIBUS DP interface module, connects Experion PKS to PROFIBUS field networks

I/O Link Infrastructure

• MC-IOLX02 (51304419-150): I/O Link Extender Card — extends the C300 I/O Link bus to remote I/O cabinets; supports up to 40-meter cable runs per segment; critical for distributed cabinet architectures

Sourcing Hard-to-Find & Obsolete MC-Series Parts

Honeywell has formally transitioned several MC-Series modules to end-of-life (EOL) status, with factory repair and new-unit availability discontinued for select part numbers. DriveKNMS maintains a dedicated inventory of tested MC-Series modules sourced from decommissioned plant assets, controlled-environment warehouses, and verified surplus channels.

DriveKNMS supports lifecycle extension for the following EOL scenarios: controller cabinet expansion requiring additional IOLX02 extenders; replacement of failed extender cards causing I/O cluster communication loss; and pre-emptive spare stocking for facilities with no active Honeywell service contract.

Quality Control for the MC-Series Range

MC-Series modules present specific testing challenges due to their backplane-dependent communication architecture. A module cannot be fully validated without a functioning I/O Link bus and a compatible C300 or C200 controller environment. DriveKNMS operates a dedicated Experion PKS test bench that replicates the production backplane environment, enabling functional verification of I/O Link communication, channel-level signal integrity, and HART pass-through for applicable modules.

For the MC-IOLX02, the test protocol includes: I/O Link bus initialization and handshake verification with a C300 controller; end-to-end communication test across a simulated remote I/O cluster; visual and dimensional inspection of the extender card connector and locking mechanism; and firmware revision logging for compatibility documentation.
