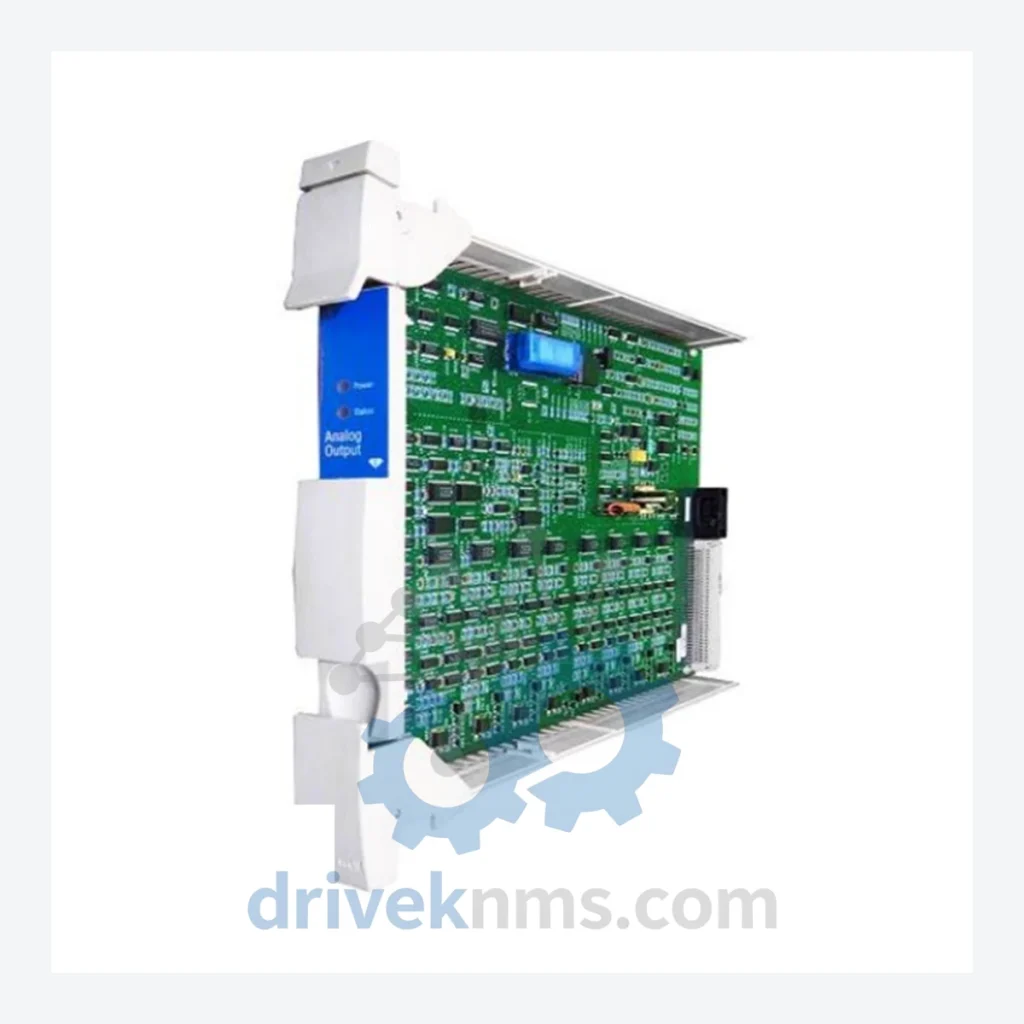

Honeywell MC-PAOX03 Analog Output Module – Obsolete TDC 3000 Spare Part

When the Honeywell MC-PAOX03 (P/N 51309152-175) analog output module fails in a TDC 3000 or Experion PKS distributed control system, the consequences extend far beyond a single I/O card. A forced migration off a legacy DCS platform — including engineering redesign, new hardware procurement, loop re-commissioning, operator retraining, and production downtime — routinely costs process plants between $2 million and $8 million USD per control system. DriveKNMS maintains verified physical stock of this discontinued module, providing a direct path to system continuity without capital project exposure.

Technical Specifications

Note: Electrical parameters such as output channel count, signal range, and bus voltage are not published here to avoid inaccuracy. Confirmed specifications are provided upon request with supporting documentation.

Solving the Discontinued Hardware Crisis

The Honeywell TDC 3000 platform has been the backbone of continuous process control in refining, petrochemical, and power generation facilities for decades. Honeywell's end-of-life announcement for TDC 3000 hardware left thousands of operating plants in a difficult position: absorb a nine-figure migration cost or maintain aging hardware indefinitely with no OEM support.

The MC-PAOX03 sits at a critical junction in the I/O subsystem. It translates digital control commands from the High-Performance Process Manager (HPPM) or Application Module into 4–20 mA field signals that drive control valves, variable speed drives, and other final control elements. There is no generic substitute. The module communicates over a proprietary backplane bus; installing a non-compatible card results in immediate loss of loop control, not a degraded state.

How procurement of a single MC-PAOX03 spare can extend asset life by 5 to 10 years:

• Eliminate single-point-of-failure risk. A plant running TDC 3000 with zero analog output spares is one module failure away from an unplanned shutdown. A single spare on the shelf converts that risk from catastrophic to manageable.
• Defer capital expenditure strategically. With a verified spare in hand, maintenance teams can negotiate DCS migration timelines on commercial terms rather than emergency timelines. The difference in project cost between a planned migration and a forced emergency migration is typically 40–70%.
• Protect existing process knowledge. TDC 3000 control strategies, alarm philosophies, and operator interfaces represent decades of accumulated process knowledge. Each year of extended operation preserves that institutional value while the organization plans a structured transition.
• Maintain regulatory compliance windows. In regulated industries (pharmaceutical, nuclear, refining), control system changes trigger revalidation and re-permitting cycles. Extending hardware life avoids triggering those cycles prematurely.
• Support multi-site standardization. Plants operating multiple TDC 3000 systems across facilities can pool a small strategic spare inventory across sites, reducing per-site carrying cost while maintaining system-wide resilience.

For plant managers facing board-level pressure to defer capital spending, a documented spare parts strategy for legacy DCS hardware is a defensible, low-cost alternative to immediate system replacement. The MC-PAOX03 is a direct line-item in that strategy.

Condition & Reliability Assurance

Discontinued hardware sourced outside OEM channels carries inherent risk. DriveKNMS applies a structured 5-step qualification process to every MC-PAOX03 unit before it is offered for sale:

1. Visual and mechanical inspection. Full examination of the PCB, connector pins, and housing for physical damage, corrosion, or evidence of prior field failure. Units with pin corrosion, burn marks, or cracked substrates are rejected at this stage.
2. Electrolytic capacitor assessment. Aged analog output modules are susceptible to electrolytic capacitor degradation, which manifests as output drift or intermittent signal loss. Each unit is assessed for capacitor condition; units showing measurable ESR deviation are flagged.
3. Firmware and label verification. The firmware revision and hardware revision markings are cross-referenced against known-good TDC 3000 compatibility matrices. Mismatched or remarked units are quarantined.
4. Connector and backplane interface check. The card-edge connector and backplane interface pins are inspected under magnification and cleaned to IPC standards where required.
5. Functional power-on verification. Where test bench infrastructure permits, units are powered and basic output response is verified prior to packaging.

Units are packaged in anti-static bags with desiccant and shipped in rigid foam-lined cartons to prevent transit damage.

Key Features for System Maintenance

• Drop-in replacement. The MC-PAOX03 installs directly into the existing TDC 3000 I/O carrier without hardware modification. No rewiring, no loop reconfiguration, no engineering change order required for a like-for-like swap.
• No reprogramming required. Control strategy, tuning parameters, and alarm setpoints reside in the HPPM or Application Module, not in the I/O card. Replacing the MC-PAOX03 does not require any DCS database changes.
• Avoids engineering reconstruction costs. A forced platform migration triggered by unavailable I/O hardware requires full P&ID review, control narrative rewrite, FAT/SAT testing, and operator qualification. A spare MC-PAOX03 eliminates that trigger entirely.
• Compatible with existing maintenance procedures. Plant maintenance teams already trained on TDC 3000 card replacement procedures can install this module without additional training or specialist contractor engagement.

FAQ

What warranty applies to a discontinued module like the MC-PAOX03?
DriveKNMS provides a 12-month warranty against functional failure under normal operating conditions. Warranty claims are handled directly; no OEM involvement is required or available for discontinued parts.

How do I confirm the unit is genuine and not a counterfeit?
Each unit is inspected for authentic Honeywell labeling, correct PCB markings, and hardware revision consistency. Documentation including inspection records and, where available, traceability records is provided with each shipment. We do not source from unverified brokers.

Should I buy more than one unit?
For any TDC 3000 installation with more than two MC-PAOX03 cards in service, holding a minimum of one cold spare is standard practice. For critical continuous process units (reactors, distillation columns, compressor trains), two spares is a defensible position given the lead time risk on discontinued hardware. Global availability of this specific part number is finite and declining.

Can this module be used in an Experion PKS system?
The MC-PAOX03 is associated with the TDC 3000 I/O architecture. Compatibility with Experion PKS depends on the specific I/O bus configuration in your installation. Confirm your system's I/O carrier type before ordering; our technical team can assist with compatibility verification.

What is the lead time?
Units in current stock ship within 3–5 business days after order confirmation and payment. Stock levels are not replenishable on demand; availability is subject to change without notice.
