Honeywell MC-TDID52 51304441-275 Digital Input Module: FSC Safety Manager Modules, Specs & Availability

Technical Dossier

Product Details And Specifications

Honeywell FSC Safety Manager Series: Comprehensive Module Range and Technical Overview

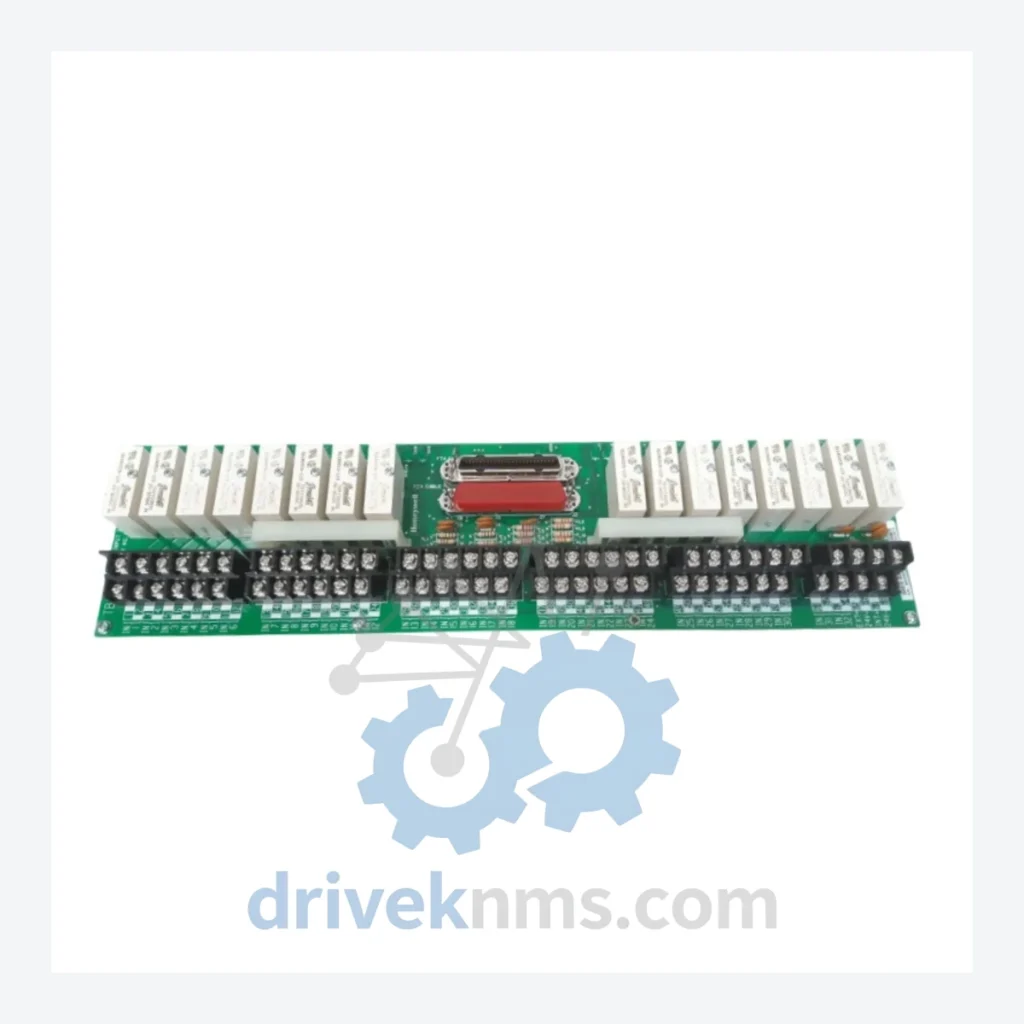

The Honeywell Fail-Safe Controller (FSC) Safety Manager series is a dedicated safety instrumented system (SIS) platform deployed across the most demanding process industries globally — including petrochemical refineries, offshore oil & gas platforms, LNG terminals, nuclear power facilities, and chemical manufacturing plants. Certified to IEC 61508 SIL 2/3 and compliant with IEC 61511, the FSC architecture provides hardware fault tolerance through redundant CPU configurations, deterministic scan cycles, and a fully supervised backplane bus. The MC-TDID52 (P/N 51304441-275) is a 24 VDC Digital Input module within this platform, providing 32-channel isolated discrete input capability for field device monitoring in safety loops.

The Evolution of FSC Safety Manager Architecture

Honeywell's FSC platform was introduced in the early 1990s as a dedicated hardware-based SIS, predating the widespread adoption of software-configurable safety PLCs. The original FSC architecture used proprietary backplane communication with fixed-function I/O modules, offering deterministic response times critical for emergency shutdown (ESD) and fire & gas (F&G) applications.

Through successive hardware generations, Honeywell expanded the FSC module catalog to include high-density I/O, HART-capable analog modules, and redundant communication adapters. The integration of the FSC platform into the broader Honeywell Safety Manager (SM) ecosystem — part of the Experion PKS suite — introduced Ethernet-based supervisory connectivity while preserving the deterministic safety execution layer. Legacy FSC modules such as the MC-TDID52 remain in active service at sites with long plant lifecycles (20–40 years), making spare parts availability a critical operational concern. Honeywell has formally transitioned new projects to the Safety Manager SC (SMSC) platform, placing the FSC module range in a sustained-support / end-of-life trajectory. Sites operating FSC hardware must now rely on certified aftermarket suppliers for module replenishment.

FSC Safety Manager Full Catalog & Functionalities (SKU List)

Digital Input Modules (DI)

• MC-TDID52 (51304441-275): 32-channel 24 VDC digital input module, isolated, SIL 2/3 rated, FSC backplane compatible
• MC-TDID12 (51304441-150): 16-channel 24 VDC digital input module, standard density DI for FSC safety loops
• MC-TDID22 (51304441-175): 16-channel 120 VAC digital input module, field-side AC voltage monitoring
• MC-TDID32 (51304441-200): 32-channel 24 VDC digital input, high-density configuration for large ESD matrices

Digital Output Modules (DO)

• MC-TDOD52 (51304441-300): 32-channel 24 VDC digital output module, relay-driven, FSC backplane
• MC-TDOD12 (51304441-325): 16-channel 24 VDC digital output, standard density DO for actuator control
• MC-TDOD22 (51304441-350): 16-channel relay output module, dry contact, 250 VAC rated

Analog Input Modules (AI)

• MC-TAIH02 (51304441-100): 8-channel 4–20 mA analog input, HART pass-through, SIL 2 rated
• MC-TAIH12 (51304441-125): 16-channel 4–20 mA analog input, high-density AI for process variable monitoring
• MC-TAIH22 (51304441-150): 8-channel thermocouple/RTD input module, temperature measurement in safety loops

Analog Output Modules (AO)

• MC-TAOH02 (51304441-400): 8-channel 4–20 mA analog output, HART capable, for positioner and valve control

CPU / Controller Modules

• MC-ESMF01 (51304441-050): FSC Main Processor module, dual-redundant capable, executes safety application logic
• MC-ESMF02 (51304441-075): FSC Redundant Processor module, hot-standby configuration for SIL 3 CPU redundancy

Communication & Network Adapters

• MC-ECNX01 (51304441-500): Ethernet communication module, Modbus TCP / Experion PKS integration
• MC-EPNI01 (51304441-525): PROFIBUS DP network interface module, gateway for DCS integration
• MC-EHPM01 (51304441-550): Highway Portable Module, FTE (Fault Tolerant Ethernet) network adapter

Power Supply Modules

• MC-EPSR01 (51304441-600): 24 VDC FSC power supply module, redundant-capable, backplane power distribution
• MC-EPSR02 (51304441-625): Redundant power supply module, hot-swap, for continuous availability configurations

Sourcing Hard-to-Find & Obsolete FSC Safety Manager Parts

With Honeywell's formal transition of new SIS projects to the Safety Manager SC (SMSC) platform, the FSC module range — including the MC-TDID52 — is no longer manufactured as a standard catalog item. However, the installed base of FSC systems at refineries, chemical plants, and power generation facilities worldwide remains substantial, with many sites committed to FSC hardware through plant lifecycle horizons extending to 2035 and beyond.

DriveKNMS maintains a dedicated inventory of FSC Safety Manager modules sourced through certified industrial surplus channels. Each unit is subject to provenance verification, visual inspection, and functional pre-testing before dispatch. For sites requiring long-term maintenance agreements or bulk spare parts packages for FSC systems, DriveKNMS provides structured procurement support including multi-year supply contracts and consignment stocking arrangements. Emergency same-day quotation is available for critical shutdown scenarios.

Quality Control for the FSC Safety Manager Range

FSC Safety Manager modules present specific quality control challenges due to their safety-critical function and complex backplane communication architecture. DriveKNMS applies the following test protocol to all FSC modules prior to shipment:

• Visual & Physical Inspection: Component-level examination for capacitor degradation, PCB corrosion, connector pin integrity, and conformal coating condition.
• Backplane Communication Verification: Modules are seated in an FSC test rack and scanned for correct identification and error-free backplane bus communication.
• Channel-Level Functional Test (DI/DO/AI/AO): Each I/O channel is individually stimulated and verified against factory specification. For the MC-TDID52, all 32 DI channels are tested at 24 VDC with threshold verification.
• Firmware Version Logging: Firmware revision is recorded and cross-referenced against Honeywell compatibility matrices for the target system version.
• Burn-In Cycle: Modules are powered continuously for a minimum of 24 hours under load to screen for early-life failures.
• Documentation Package: Each shipped module includes a test report, serial number record, and warranty certificate.
