Honeywell MC-TLPA02 Series: Comprehensive Module Range and Technical Overview

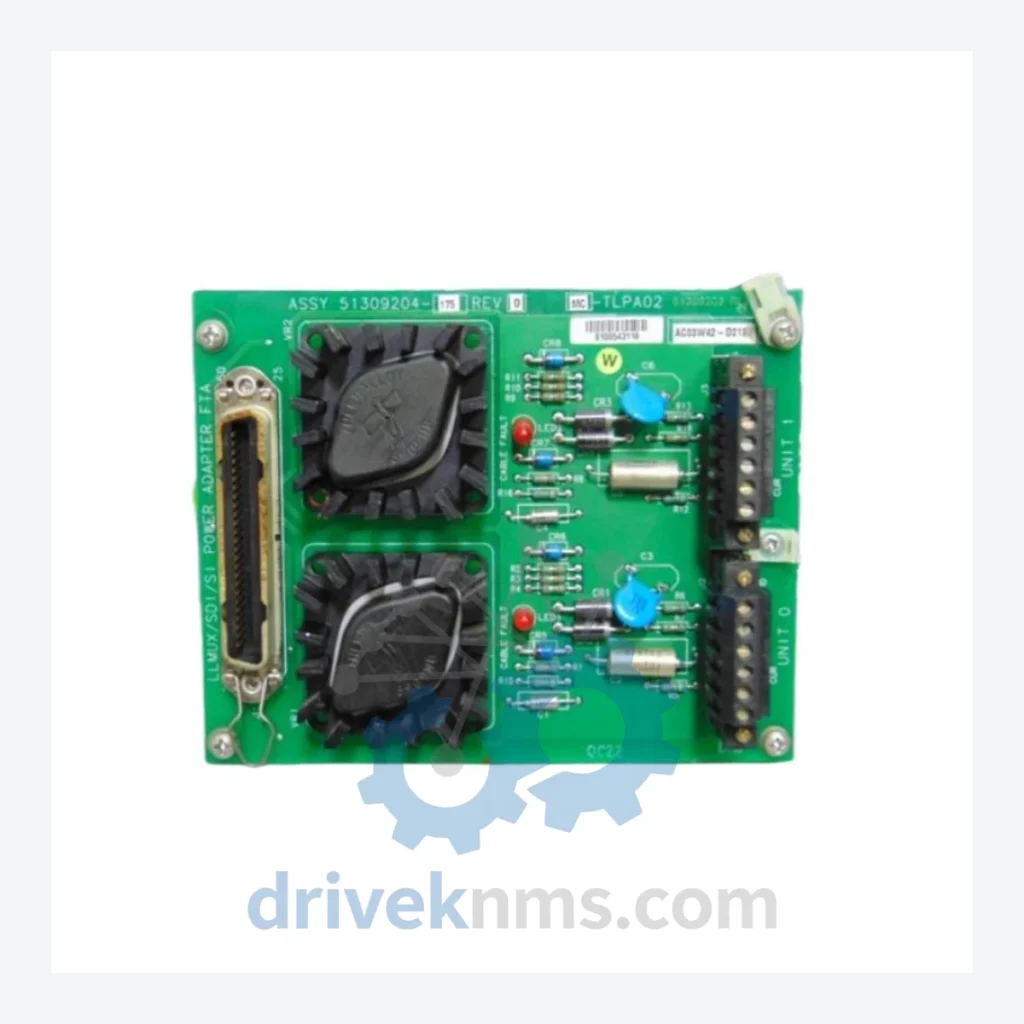

The Honeywell MC-TLPA02 (alternate part number 51309204-175) is a Power Adapter module belonging to Honeywell's Experion PKS / TotalPlant Solution (TPS) distributed control system architecture. This platform has accumulated decades of installed base across global heavy industries including petroleum refining, petrochemical processing, pulp and paper, nuclear power generation, and offshore oil and gas platforms.

The TPS/Experion PKS ecosystem is classified as a mature-to-legacy platform. Honeywell has progressively migrated support toward Experion PKS R500+ and the newer Experion PKS Highly Integrated Virtual Environment (HIVE). However, the sheer volume of installed TPS and HC900 nodes globally — estimated in the tens of thousands of active control cabinets — means that demand for modules such as the MC-TLPA02 remains structurally persistent. Procurement managers responsible for these assets face a binary choice: fund a full DCS migration (capital-intensive, multi-year) or maintain the existing infrastructure through verified spare parts sourcing (operationally pragmatic, cost-contained).

The Evolution of MC-TLPA02 Architecture

The Honeywell TotalPlant Solution (TPS) platform was introduced in the mid-1990s as the successor to the TDC 3000 system. The MC-TLPA02 power adapter module operates within the Process Manager (PM) and Advanced Process Manager (APM) node infrastructure, providing regulated DC power distribution to I/O termination assemblies and field interface modules.

Key architectural milestones relevant to the MC-TLPA02:

• TDC 3000 era (pre-1995): Power distribution relied on discrete backplane power rails; no unified adapter standard.
• TPS introduction (1995–2002): MC-series modular power adapters standardized, enabling hot-swap capability and redundant power configurations. The MC-TLPA02 was introduced in this generation.
• Experion PKS R100–R300 (2002–2012): Backward compatibility maintained with MC-series I/O and power modules. MC-TLPA02 remained fully supported.
• Experion PKS R400–R500 (2012–present): New C300 controller architecture introduced. Legacy PM/APM nodes retained in hybrid configurations. MC-TLPA02 sourcing shifted from OEM channels to authorized aftermarket suppliers.
• Current status: MC-TLPA02 is no longer manufactured by Honeywell. Procurement must rely on verified surplus inventory, refurbished units with documented test records, or compatible cross-reference alternatives.

Compatibility note: The MC-TLPA02 interfaces with standard TPS termination panels and is not directly interchangeable with Experion C300-series power modules. Substitution requires engineering validation.

Honeywell MC-TLPA02 / TPS Full Catalog & Functionalities (SKU List)

The following SKUs represent the core module inventory within the Honeywell TPS / Experion PKS PM and APM node ecosystem. All models listed are verified members of this platform family.

Power & Adapter Modules

• MC-TLPA02 / 51309204-175: TPS power adapter module for PM/APM termination assemblies
• MC-PWRJ01: Power junction module for redundant power bus distribution
• MC-PWRJ02: Dual-channel power junction with fault isolation relay
• 51401288-100: Power supply module, 24VDC regulated output for I/O nodes
• 51304516-150: Redundant power supply assembly for APM cabinets

Analog Input (AI) Modules

• MC-TAIH02: 16-channel analog input, HART-enabled, 4–20mA
• MC-TAIH03: 32-channel analog input, high-density HART, 4–20mA
• 51304453-150: Analog input module, 8-channel, thermocouple/RTD
• 51309218-175: Analog input termination assembly, field wiring interface

Analog Output (AO) Modules

• MC-TAOX12: 12-channel analog output, 4–20mA, HART pass-through
• 51304441-150: Analog output module, 8-channel, isolated

Digital Input (DI) Modules

• MC-TDID12: 24-channel digital input, 24VDC, isolated per group
• 51309276-175: Digital input termination assembly, 24VDC field interface
• 51304362-150: Digital input module, 32-channel, 120VAC compatible

Digital Output (DO) Modules

• MC-TDOY22: 16-channel digital output, relay contact, 2A per channel
• 51309288-175: Digital output termination assembly, relay type

Controller & Communication Modules

• MC-ECTC01: Ethernet communication module for TPS node LAN integration
• 51401196-100: Process Manager (PM) controller module, primary CPU
• 51401197-100: Advanced Process Manager (APM) controller, enhanced scan rate
• MC-PLAM02: Plant Loop Adapter Module for legacy TDC 3000 migration nodes

Sourcing Hard-to-Find & Obsolete MC-TLPA02 Parts

The MC-TLPA02 has been discontinued by Honeywell. OEM lead times — when available through Honeywell's lifecycle support contracts — can extend to 16–26 weeks and are subject to minimum order commitments. For facilities operating outside active Honeywell service agreements, this creates a direct operational risk: a single failed power adapter can take an entire PM node offline, affecting hundreds of I/O points.

DriveKNMS maintains a dedicated sourcing network for legacy Honeywell TPS and Experion PKS components. Our procurement approach for the MC-TLPA02 and equivalent modules includes:

• Direct access to verified surplus inventory from decommissioned refinery and chemical plant DCS upgrades
• Cross-reference validation against Honeywell's internal part number equivalency tables (e.g., 51309204-175 ↔ MC-TLPA02)
• Pre-shipment functional testing on TPS-compatible test benches
• Full export documentation compliant with US EAR and CN customs regulations
• Typical lead time for MC-TLPA02: 3–10 business days from confirmed order

Quality Control for the MC-TLPA02 Range

Power adapter modules in the TPS architecture are failure-critical components. A degraded MC-TLPA02 can produce intermittent voltage sag on the termination bus, causing false I/O reads or spurious output triggers — faults that are difficult to diagnose without module-level isolation. DriveKNMS applies the following test protocol to all MC-TLPA02 units prior to shipment:

• Visual inspection: PCB trace integrity, capacitor condition, connector pin alignment
• Powered bench test: Output voltage verification under rated load (24VDC ±2%)
• Thermal cycling: 30-minute operational run at ambient +10°C to verify thermal stability
• Backplane communication check: Module handshake verification on TPS-compatible test rack
• Documentation: Each unit ships with a test report, serial number record, and 12-month warranty certificate

All units are packed in anti-static ESD bags with foam-lined cartons. International shipments include commercial invoice, packing list, and certificate of origin for customs clearance.

For RFQ, technical cross-reference, or bulk procurement inquiries on the Honeywell MC-TLPA02 (51309204-175) or any TPS/Experion PKS module:

• Email: [email protected]
• WhatsApp: +86 18359293191
• Web: driveknms.com
