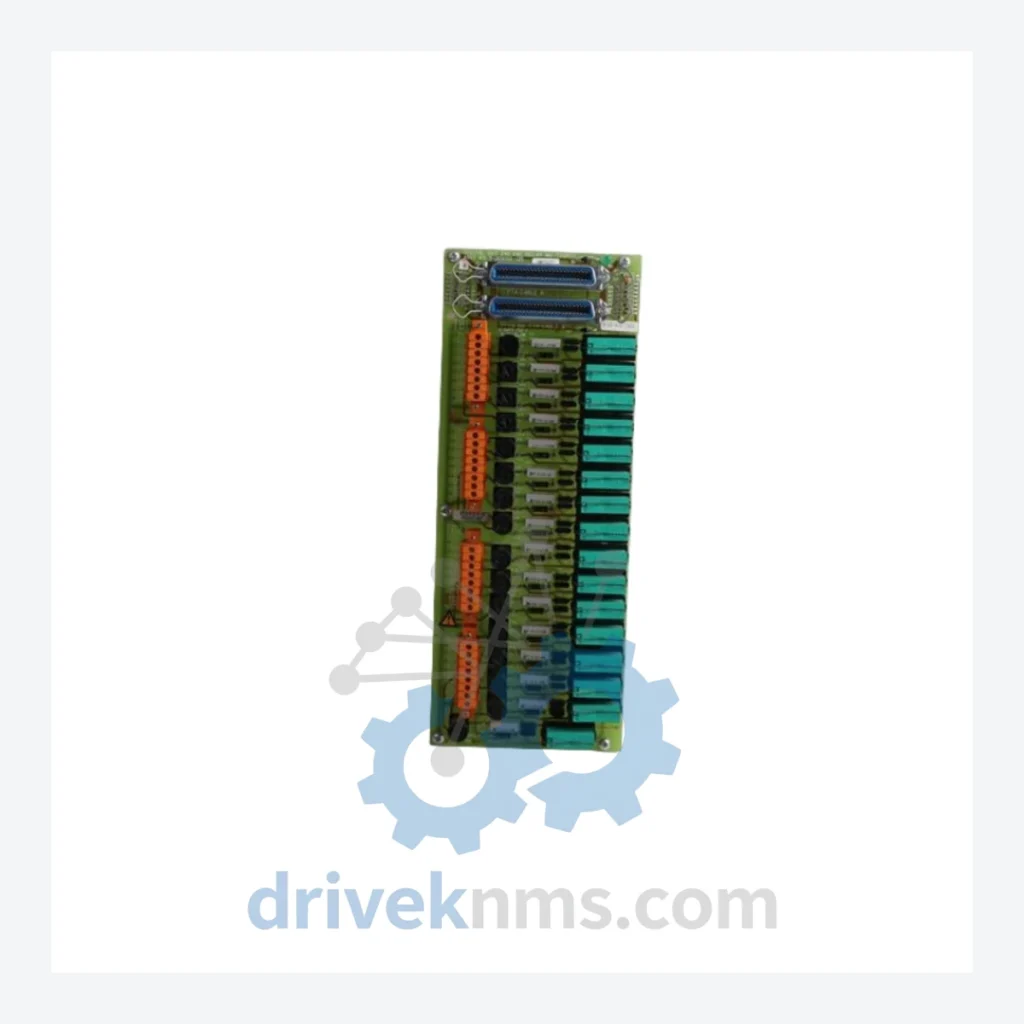

Honeywell MC-TSTX13 51309142-175 Digital Output Relay Module

Technical Dossier

Product Details And Specifications

Honeywell MC-TSTX13 Series Technical Notes

The Honeywell MC-TSTX13 (part number 51309142-175) is a Digital Output Relay module designed for deployment within Honeywell's TDC 3000 Distributed Control System (DCS) and Safety Manager (SM) platform. This series occupies a critical position in global heavy industry installations, including petrochemical refineries, nuclear power facilities, offshore platforms, and large-scale chemical processing plants. The MC-TSTX series provides relay-isolated discrete output capability, enabling field-side voltage isolation between the controller backplane and actuator circuits — a mandatory requirement in SIL-rated safety loops and high-voltage field environments.

Honeywell's TDC 3000 and Safety Manager architectures remain among the most widely installed DCS platforms globally, with active installations spanning 30+ years of continuous operation. The MC-TSTX13 module is a direct component of this ecosystem, interfacing with the Universal Control Network (UCN) and Safety Network Controller (SNC) backplane infrastructure.

The Evolution of MC-TSTX Architecture

The MC-TSTX module family traces its lineage to Honeywell's original TDC 2000 I/O card architecture introduced in the late 1970s. As the platform evolved into TDC 3000 through the 1980s and 1990s, Honeywell standardized the MC- prefix nomenclature for modular I/O cards compatible with the High-Performance Process Manager (HPM) and Safety Manager subsystems.

Key architectural milestones include the transition from parallel backplane communication (TDC 2000 era) to the UCN serial network topology in TDC 3000, and subsequently to the FTE (Fault Tolerant Ethernet) backbone in Experion PKS. The MC-TSTX13 belongs to the mature TDC 3000 / Safety Manager generation, designed for direct insertion into the SM Chassis and compatible with the SNC (Safety Network Controller). Relay output modules in this series use electromechanical relay contacts rated for field-side voltages up to 250VAC/30VDC, providing galvanic isolation between the logic-level backplane and the field actuator circuit.

MC-TSTX13 Full Catalog & Functionalities (SKU List)

The following SKUs represent the verified Honeywell TDC 3000 / Safety Manager I/O module catalog. Each entry is a discrete, independently orderable line item. Functional classification follows Honeywell's own I/O taxonomy.

Digital Output — Relay Modules

• MC-TSTX13 / 51309142-175: 13-channel digital output relay module, SM chassis, 250VAC field isolation
• MC-TSTX11 / 51309142-150: 11-channel digital output relay, standard SM I/O slot, dry contact output
• MC-TSTX02 / 51309142-025: 2-channel high-current relay output, 5A rated contacts, critical actuator service
• MC-TSTX04 / 51309142-050: 4-channel relay output module, SIL 2 rated, solenoid valve driver

Digital Input Modules

• MC-TSDI13 / 51309138-175: 13-channel digital input, 24VDC field voltage, SM chassis compatible
• MC-TSDI22 / 51309138-275: 22-channel digital input, high-density I/O, field-side 120VAC rated
• MC-TSDI11 / 51309138-150: 11-channel digital input, isolated, for SIS loop monitoring
• MC-TSDI02 / 51309138-025: 2-channel digital input, high-voltage field interface, 250VAC rated

Analog Input Modules

• MC-TAIH02 / 51304485-175: 2-channel analog input, HART-enabled, 4–20mA, SIL 2 certified
• MC-TAIH04 / 51304485-200: 4-channel analog input, HART, redundant field termination support
• MC-TAIX02 / 51304487-175: 2-channel analog input, non-HART, 4–20mA, standard SM I/O
• MC-TAIX04 / 51304487-200: 4-channel analog input, non-HART, high-density field wiring

Analog Output Modules

• MC-TAOH02 / 51304493-175: 2-channel analog output, HART, 4–20mA, control valve positioner interface
• MC-TAOX02 / 51304495-175: 2-channel analog output, non-HART, 4–20mA, standard actuator service

Controller & Communication Modules

• MC-ESMF01 / 51304362-175: Safety Manager main controller module, SNC function, UCN interface
• MC-PLAM02 / 51304516-175: Power and logic arbiter module, SM chassis power distribution
• MC-COMM03 / 51304520-175: Communication adapter, UCN to FTE bridge, Experion PKS integration

Sourcing Hard-to-Find & Obsolete MC-TSTX13 Parts

For facilities operating under extended plant life programs (EPLP) or long-term service agreements (LTSA), DriveKNMS can provide multi-year blanket order arrangements with reserved inventory allocation, eliminating single-event procurement risk for critical spare parts.

Quality Control for the MC-TSTX13 Range

Each MC-TSTX13 unit processed by DriveKNMS undergoes a structured inspection and functional verification protocol specific to relay output modules operating in safety-instrumented system (SIS) environments.

The test sequence includes: visual inspection of relay contact surfaces and PCB traces for oxidation or thermal stress; relay coil resistance measurement against OEM specification (nominal coil resistance per Honeywell SM I/O specification sheet); contact continuity and isolation resistance testing at rated field voltage (250VAC); backplane connector pin inspection for fretting corrosion, a known failure mode in long-installed SM chassis modules; and functional loop simulation using a calibrated SM chassis test fixture to verify correct response to logic-level command signals from the SNC controller.
