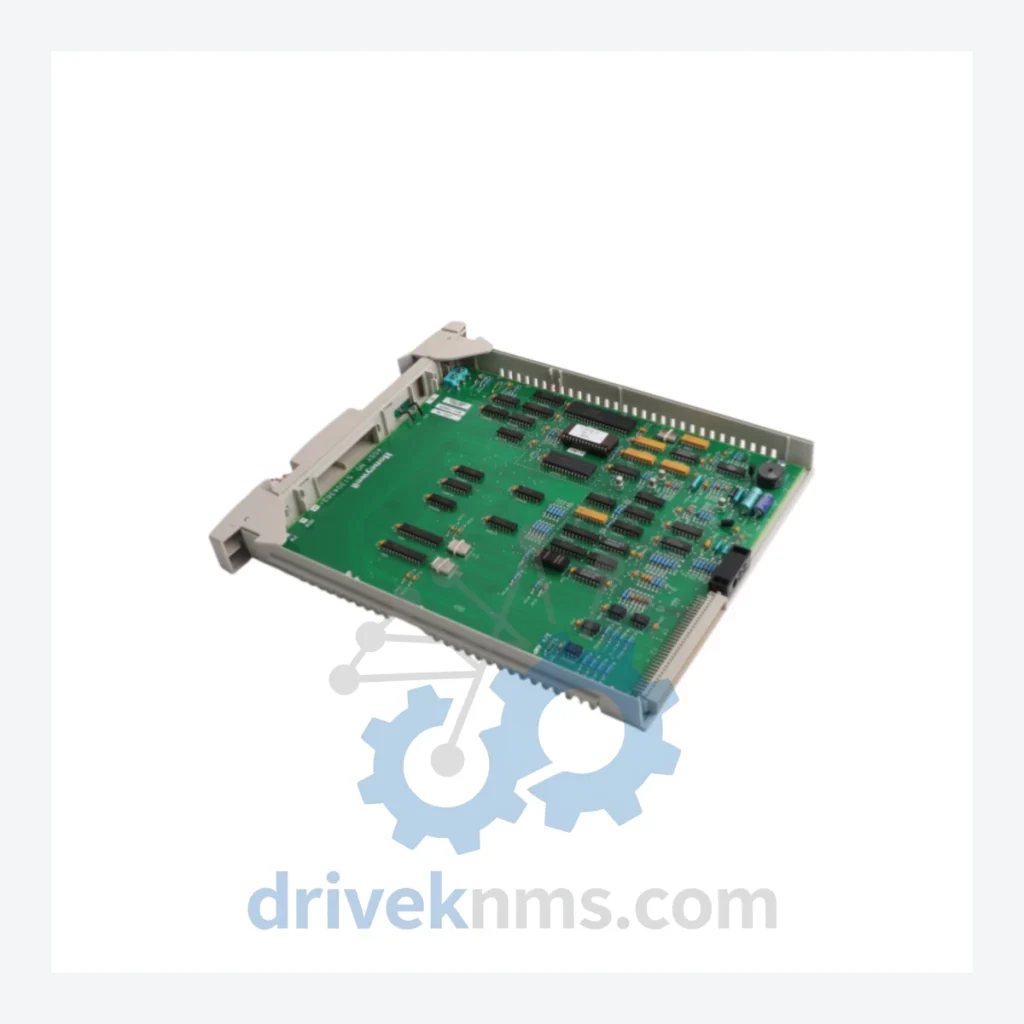

Honeywell MU-P Series Modules: MU-PSIM11 51304362-300 I/O Processor

Technical Dossier

Product Details And Specifications

Honeywell MU-P Series Technical Notes

The Honeywell MU-P series of process I/O modules represents one of the most widely deployed distributed control system (DCS) hardware families in global heavy industry. Installed across petrochemical complexes, nuclear power stations, crude oil refineries, LNG terminals, and continuous-process manufacturing plants, MU-P series modules form the field interface backbone of Honeywell's Experion PKS (Process Knowledge System) and legacy TDC 3000 / PlantScape architectures. Their modular backplane design, deterministic scan rates, and HART-pass-through capability have made them the default I/O standard for facilities requiring IEC 61511 SIL-rated process control with multi-decade operational continuity.

The Evolution of MU-P Series Architecture

The MU-P module family originated within Honeywell's TDC 3000 platform in the late 1980s as a standardized field termination and signal conditioning layer. Early revisions used parallel backplane buses with fixed-address I/O mapping. With the transition to PlantScape in the mid-1990s and subsequently to Experion PKS R100–R500 in the 2000s, the MU-P series was re-engineered to support FTE (Fault-Tolerant Ethernet) redundancy, HART 5/6/7 digital superimposition, and hot-swap module replacement without process interruption.

The 51304362-xxx part number block (including the MU-PSIM11 51304362-300) identifies the Series I/O Module generation with specific firmware revision suffixes (-100, -200, -300) indicating compatibility milestones with Experion PKS R400 and above. Facilities running TDC 3000 UCN nodes alongside Experion C300 controllers frequently require cross-generation compatibility shims, making exact part number suffix matching critical for procurement.

As Honeywell has progressively migrated its installed base toward the Experion PKS Series C I/O (EPKS C300 with CHARM I/O), the MU-P series has entered a mature/end-of-active-production lifecycle. Honeywell's official support window for many MU-P variants has transitioned to long-term maintenance mode, meaning new production runs are limited or discontinued. Third-party lifecycle extension suppliers are now the primary source for replacement units.

MU-P Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly deployed modules within the Honeywell MU-P and associated 51304362 / 51305349 / 51304453 part number families. Modules are classified by functional category:

I/O Processor & System Interface Modules

• MU-PSIM11 / 51304362-300: Series I/O Module, Experion PKS R400+ compatible I/O processor with FTE interface
• MU-PSIM11 / 51304362-200: Series I/O Module, earlier firmware revision for Experion PKS R300 environments
• MU-PSIM11 / 51304362-100: Original Series I/O Module revision for PlantScape / TDC 3000 hybrid installations
• MU-PSIM21 / 51304362-350: Redundant Series I/O Module, dual-port FTE, hot-standby failover capable

Analog Input Modules

• MU-PAIH02 / 51304453-150: 16-channel analog input, 4–20 mA HART, individually isolated, 16-bit resolution
• MU-PAIH12 / 51304453-175: 16-channel analog input with HART 7 support, enhanced diagnostics
• MU-PAIM02 / 51305349-175: 8-channel analog input, millivolt/thermocouple, CJC compensation
• MU-PAIM12 / 51305349-200: 8-channel analog input, RTD/resistance, 3-wire Pt100/Pt1000

Analog Output Modules

• MU-PAOH02 / 51304453-250: 8-channel analog output, 4–20 mA HART, loop-powered, 12-bit DAC
• MU-PAOH12 / 51304453-275: 8-channel analog output, HART 7, with open-loop detection

Digital Input Modules

• MU-PDIH02 / 51305349-375: 32-channel digital input, 24 VDC, individually isolated, SOE 1 ms resolution
• MU-PDIH12 / 51305349-400: 32-channel digital input, 120 VAC, group isolated
• MU-PDIS02 / 51305349-425: 16-channel digital input, SIL 2 rated, with diagnostic feedback

Digital Output Modules

• MU-PDOH02 / 51305349-475: 16-channel digital output, 24 VDC sourcing, 0.5 A per channel
• MU-PDOH12 / 51305349-500: 16-channel digital output, relay contact, SPDT, 2 A at 250 VAC

Power Supply & Backplane Modules

• MU-PPSX01 / 51304362-450: MU-P series redundant power supply module, 24 VDC input, backplane bus feed
• MU-PPSX02 / 51304362-475: MU-P series power supply, 120/240 VAC input, auto-ranging

Quality Control for the MU-P Series Range

MU-P series modules present specific test challenges due to their multi-layer backplane communication protocol (Honeywell proprietary FTE/UCN bus) and HART signal superimposition circuitry. Standard bench power-up is insufficient to validate module functionality. DriveKNMS applies the following test protocol to all MU-P series units:

• Backplane bus continuity and impedance verification against OEM reference values
• FTE port loopback test using Experion PKS-compatible test harness
• HART master simulation across all analog channels (4–20 mA loop injection, HART command set 0/1/3 response validation)
• Digital I/O channel-by-channel functional test at rated voltage and current
• Thermal soak at 55°C for 4 hours to screen latent component failures
• Firmware version readback and logging prior to shipment
