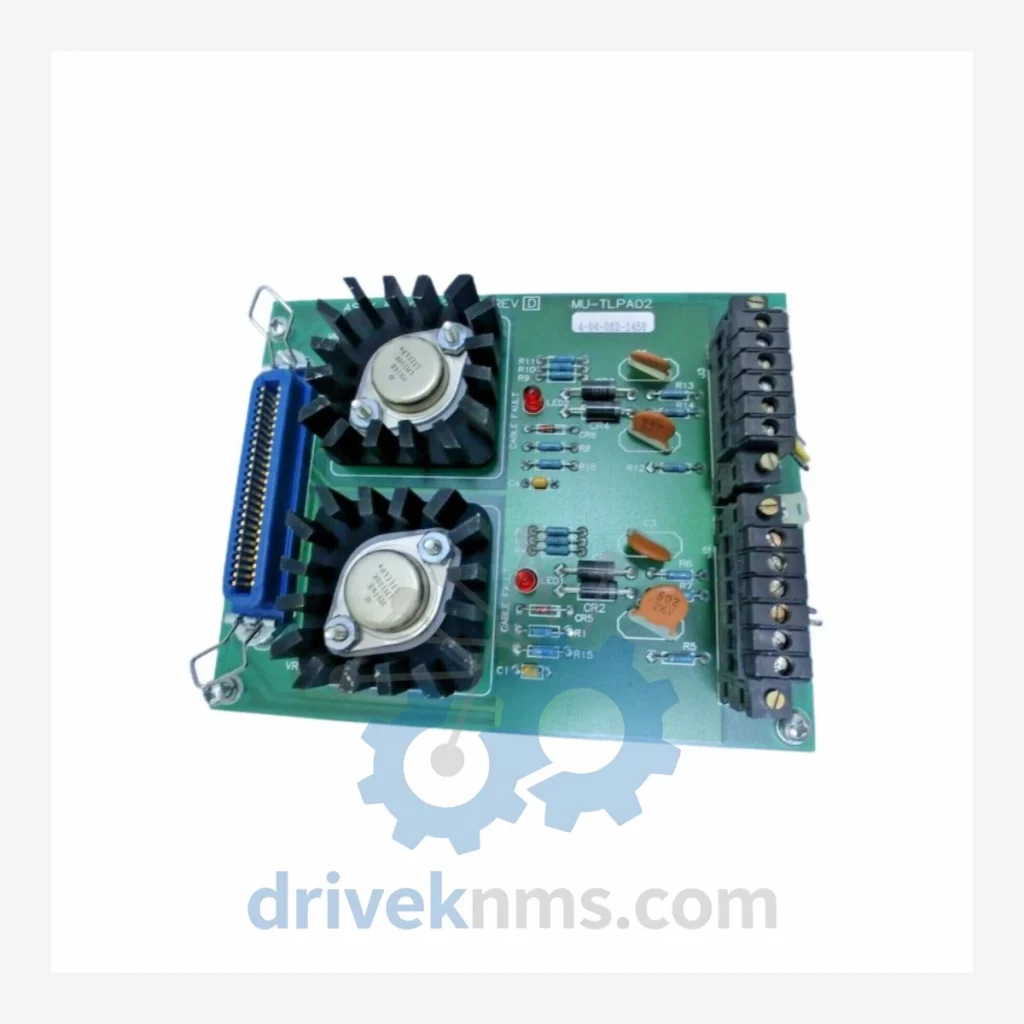

Honeywell MU-TLPA02 Power Adapter Board – Obsolete TDC 3000 / TPS Spare Part

When a power adapter board fails inside a Honeywell TDC 3000 or TPS distributed control system, the consequences extend far beyond a single module replacement. A forced migration to a modern DCS platform — including engineering, re-commissioning, operator retraining, and production downtime — routinely costs between $2 million and $8 million USD per production unit. The Honeywell MU-TLPA02 (part number 51304467-100) has been discontinued by the manufacturer. Replacement units are no longer available through standard distribution channels. DriveKNMS maintains verified physical stock of this board, sourced through controlled industrial asset recovery pipelines.

Technical Specifications

Solving the Discontinued Hardware Crisis

The Honeywell TDC 3000 and its successor TPS platform remain operational in refineries, chemical plants, and power generation facilities worldwide — many of which were commissioned in the 1980s and 1990s. These systems were engineered for 30-year service lives, and the control logic embedded within them represents decades of process optimization that cannot be transferred to a new platform without significant risk and cost.

The MU-TLPA02 power adapter board sits at the intersection of the field wiring and the control processor. Its failure does not merely interrupt a single I/O channel — it can take down an entire node, triggering unplanned shutdowns across multiple process loops. Because Honeywell has discontinued this board and cleared it from its spare parts catalog, procurement teams face a hard ceiling: there is no factory-new replacement available through authorized channels.

Facilities that have extended TDC 3000 / TPS system life by 5 to 10 years beyond the manufacturer's end-of-support date have done so through a consistent strategy: pre-positioning critical spare boards before failure events occur, not after. The cost of holding two or three MU-TLPA02 units in a climate-controlled spare parts room is measured in thousands of dollars. The cost of an unplanned shutdown while sourcing a replacement on the open market is measured in days of lost production and emergency procurement premiums. For a mid-scale refinery running at $500,000 per day in throughput value, the arithmetic is straightforward.

DriveKNMS specializes in sourcing, verifying, and supplying exactly these boards — the ones that no longer appear in manufacturer catalogs but remain essential to keeping aging automation assets in service.

Condition & Reliability Assurance

Every MU-TLPA02 unit that leaves our facility passes through a structured 5-step quality assurance process designed specifically for legacy industrial electronics:

• Step 1 – Visual and Physical Inspection: Full board examination for mechanical damage, solder joint integrity, and connector pin condition. Corroded or oxidized pins are documented and addressed before any electrical testing begins.
• Step 2 – Electrolytic Capacitor Assessment: Capacitor aging is the primary failure mode in boards of this era. Each electrolytic capacitor is tested for capacitance drift and ESR (equivalent series resistance). Units showing degradation beyond tolerance are flagged.
• Step 3 – Firmware and Configuration Verification: Where applicable, firmware revision is confirmed against known compatible versions for TDC 3000 / TPS node configurations. No unauthorized firmware modifications are accepted.
• Step 4 – Functional Bench Test: The board is powered and tested under controlled conditions to verify correct power conversion and signal integrity across all output rails.
• Step 5 – ESD-Safe Packaging and Documentation: Units are packaged in anti-static materials with a test record and condition report included. Traceability documentation is available on request.

Key Features for System Maintenance

• Drop-in replacement: The MU-TLPA02 installs directly into the existing TDC 3000 / TPS chassis slot with no hardware modification required.
• No reprogramming required: The board carries no site-specific configuration. Replacement does not require DCS engineer involvement or control system downtime beyond the physical swap.
• Avoids engineering reconstruction costs: Substituting a like-for-like board eliminates the need for I/O remapping, loop re-tuning, or safety system re-validation that a platform migration would trigger.
• Extends asset service life: A single board replacement can defer a full system upgrade by 3 to 7 years, preserving capital budget for planned investment cycles rather than emergency expenditure.
• Supports long-term spare parts strategy: Available in single units or small lot quantities to support multi-year maintenance planning.

FAQ

What warranty applies to discontinued parts?
DriveKNMS provides a 90-day functional warranty on all tested and refurbished units. New surplus units carry a 12-month warranty against defects identified during incoming inspection. Warranty terms are confirmed in writing at the time of order.

How do I know the unit is genuine and not counterfeit?
All units are sourced from verified industrial asset recovery channels — decommissioned plant equipment, controlled surplus inventories, and authorized resellers. We do not source from unverified secondary markets. Traceability documentation is available on request for units where provenance records exist.

Should I buy more than one unit?
For any TDC 3000 / TPS installation with more than one MU-TLPA02 installed, holding a minimum of one spare per node is standard practice. Given that this part is no longer manufactured, current available stock represents a finite global supply. Procurement teams managing multi-year maintenance budgets are advised to secure their position now rather than at the point of failure.

Can you source other Honeywell TDC 3000 / TPS parts?
Yes. DriveKNMS maintains an active sourcing network for Honeywell TDC 3000, TPS, and related legacy platform components. Contact us with your full bill of materials for a consolidated quote.
