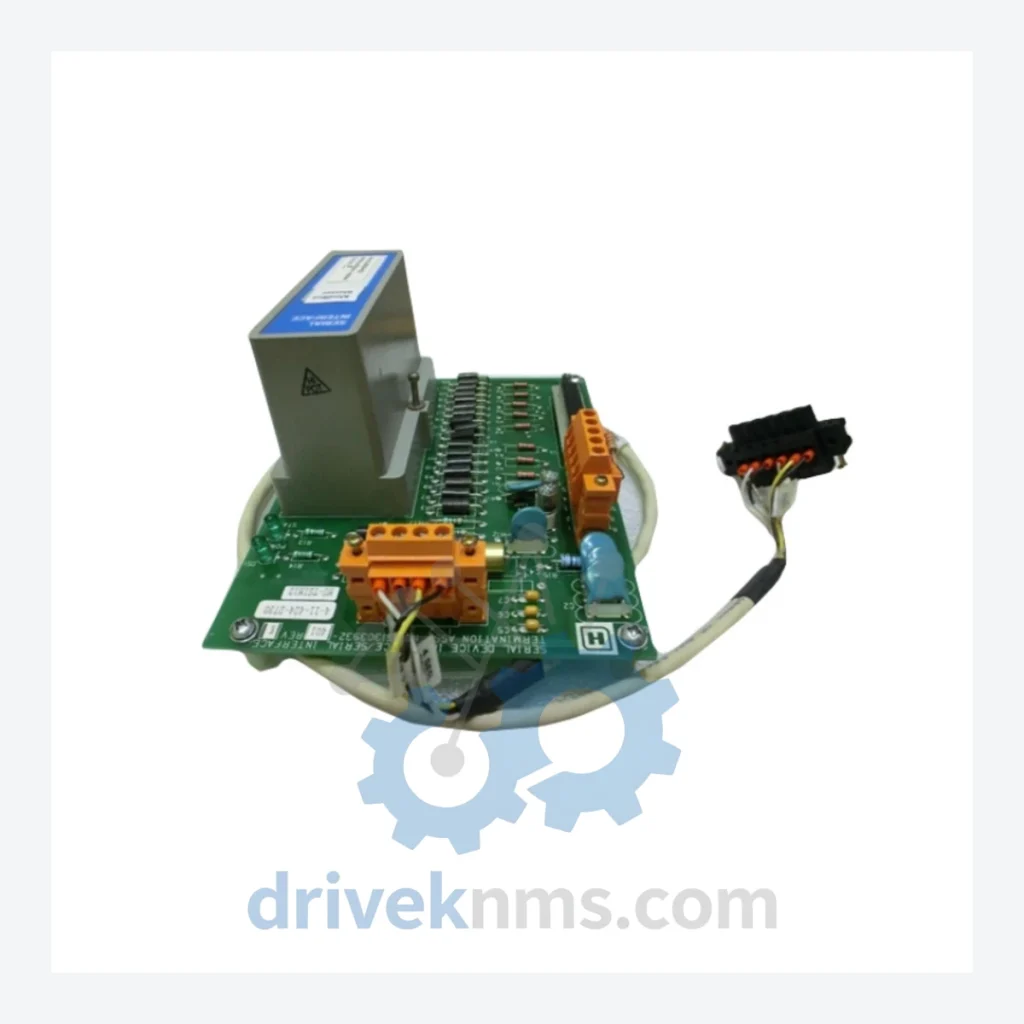

Honeywell TPS/TDC 3000 Modules: MU-TSIM12 51303932-426 Processor Module

Technical Dossier

Product Details And Specifications

Honeywell TPS/TDC 3000 Series Technical Notes

The Honeywell TotalPlant Solution (TPS) and its predecessor TDC 3000 represent one of the most widely deployed Distributed Control System (DCS) platforms in global heavy industry. Installed across petrochemical complexes, nuclear power stations, crude oil refineries, pulp and paper mills, and large-scale chemical processing facilities, the TPS/TDC 3000 architecture has maintained a dominant installed base since its commercial introduction in the 1970s. The platform's modular backplane design, redundant communication highways, and deterministic scan cycle performance made it the reference standard for continuous process control in critical infrastructure. Facilities operating this platform typically manage thousands of I/O points across multiple Universal Control Networks (UCN) and Local Control Networks (LCN), with individual module populations numbering in the hundreds per site.

The Evolution of TPS/TDC 3000 Architecture

The TDC 3000 platform was introduced by Honeywell in 1975 as one of the first commercially available distributed control systems, replacing pneumatic and analog panel-based control with digital, networked process management. The original architecture centered on the Data Hiway, a coaxial token-passing network connecting Basic Controllers (BC) and Advanced Multifunction Controllers (AMC) to a central operator interface.

In the mid-1980s, Honeywell introduced the Local Control Network (LCN) and the Universal Control Network (UCN), transitioning from the Data Hiway to a higher-bandwidth, fault-tolerant dual-redundant coaxial highway. This generation introduced the High-Performance Process Manager (HPM), the Process Manager (PM), and the Advanced Process Manager (APM) as the primary field controller nodes. The LCN connected operator workstations (US, GUS, UxS), History Modules (HM), Application Modules (AM), and Network Interface Modules (NIM) in a peer-to-peer topology.

The TPS (TotalPlant Solution) rebranding in the 1990s introduced Windows-based operator stations (GUS – Global User Station), enhanced historian integration, and compatibility with modern fieldbus protocols including FOUNDATION Fieldbus and HART. The MU-TSIM12 51303932-426 belongs to this mature TPS generation, functioning as a processor/interface module within the HPM or PM node infrastructure. By the 2000s, Honeywell introduced Experion PKS as the successor platform, though TPS/TDC 3000 systems remain in active service at thousands of sites globally, creating sustained demand for spare and replacement modules.

TPS/TDC 3000 Full Catalog & Functionalities (SKU List)

Processor & Interface Modules

• MU-TSIM12 51303932-426: TPS processor/serial interface module; UCN node communication and control processing.
• MU-TSIM11 51303932-325: Serial interface module variant; earlier firmware revision for HPM nodes.
• MC-TSIM12 51304362-175: Redundant serial interface module for high-availability HPM configurations.
• 51401288-100: HPM Main Processor Card; primary CPU for High-Performance Process Manager nodes.
• 51401288-150: HPM Main Processor Card, enhanced revision with extended memory addressing.
• 51304485-100: UCN Interface Card; dual-redundant UCN highway termination for HPM chassis.

I/O Modules – Analog Input (AI)

• MU-GAIX02 51304453-175: 16-channel analog input module; 4–20 mA HART-compatible field termination.
• MU-GAIX12 51304453-275: 16-channel analog input, enhanced isolation; for high-noise process environments.
• 51309276-175: Analog input FTA (Field Termination Assembly); mounts in HPM I/O carrier.

I/O Modules – Analog Output (AO)

• MU-GAOX02 51304418-175: 8-channel analog output module; 4–20 mA current loop output for control valves.
• MU-GAOX12 51304418-275: 8-channel analog output, redundant output option; critical control loops.

I/O Modules – Digital Input (DI)

• MU-GDIS02 51304441-175: 32-channel digital input module; 24 VDC dry contact and wet contact inputs.
• MU-GDIS12 51304441-275: 32-channel digital input, isolated; for high-voltage field signal environments.

I/O Modules – Digital Output (DO)

• MU-GDOS02 51304445-175: 16-channel digital output module; 24 VDC sourcing outputs for solenoids and relays.
• MU-GDOS12 51304445-275: 16-channel digital output, relay-isolated; for AC load switching applications.

Power Supply Modules

• 51196693-100: HPM Power Supply Module; 24 VDC regulated output for I/O carrier backplane.
• 51196693-200: HPM Redundant Power Supply; hot-standby configuration for continuous availability.

Communication & Network Modules

• 51304362-175: LCN Interface Module (LCNI); connects HPM node to Local Control Network highway.
• 51401196-100: NIM (Network Interface Module); LCN-to-UCN gateway for multi-node architectures.

Sourcing Hard-to-Find & Obsolete TPS/TDC 3000 Parts

Honeywell formally transitioned TPS/TDC 3000 to end-of-production status as Experion PKS became the standard platform. However, the capital cost and operational risk of full DCS migration means the majority of installed TPS/TDC 3000 systems will remain in service through the 2030s. This creates a structural supply gap: OEM production has ceased, but field demand for replacement modules continues at scale.

DriveKNMS maintains a dedicated inventory of TPS/TDC 3000 modules sourced through controlled decommissioning projects, certified refurbishment programs, and direct procurement from verified industrial surplus channels. For modules such as the MU-TSIM12 51303932-426, which are no longer available through standard distribution, DriveKNMS provides:

• Verified functional testing against original Honeywell performance specifications.
• Traceability documentation for each unit, including source facility and test records.
• Cross-reference matching for superseded part numbers and revision-level compatibility.
• Long-term reservation agreements for facilities requiring guaranteed multi-year supply.

Quality Control for the TPS/TDC 3000 Range

TPS/TDC 3000 modules operate within a tightly coupled backplane and UCN/LCN bus environment. Standard bench power-up testing is insufficient to validate module integrity for this platform. DriveKNMS applies a structured test protocol specific to the TPS/TDC 3000 architecture:

• Backplane Bus Simulation: Each module is seated in a live HPM or PM test chassis replicating the target backplane configuration. Bus arbitration, slot addressing, and inter-module communication are verified under operational conditions.
• Processor Execution Test: For processor and interface modules including the MU-TSIM12 51303932-426, firmware boot sequence, self-diagnostic pass/fail status, and UCN token acquisition are confirmed.
• I/O Signal Accuracy: Analog modules are calibrated against NIST-traceable reference standards. Digital modules are tested for switching threshold, response time, and isolation resistance.
• Thermal Cycling: Modules are subjected to operational temperature cycling (0°C to 60°C) to identify latent component failures prior to shipment.
• Final Inspection: Visual inspection of PCB, connector pins, and conformal coating integrity. Units failing any stage are quarantined and not offered for sale.
