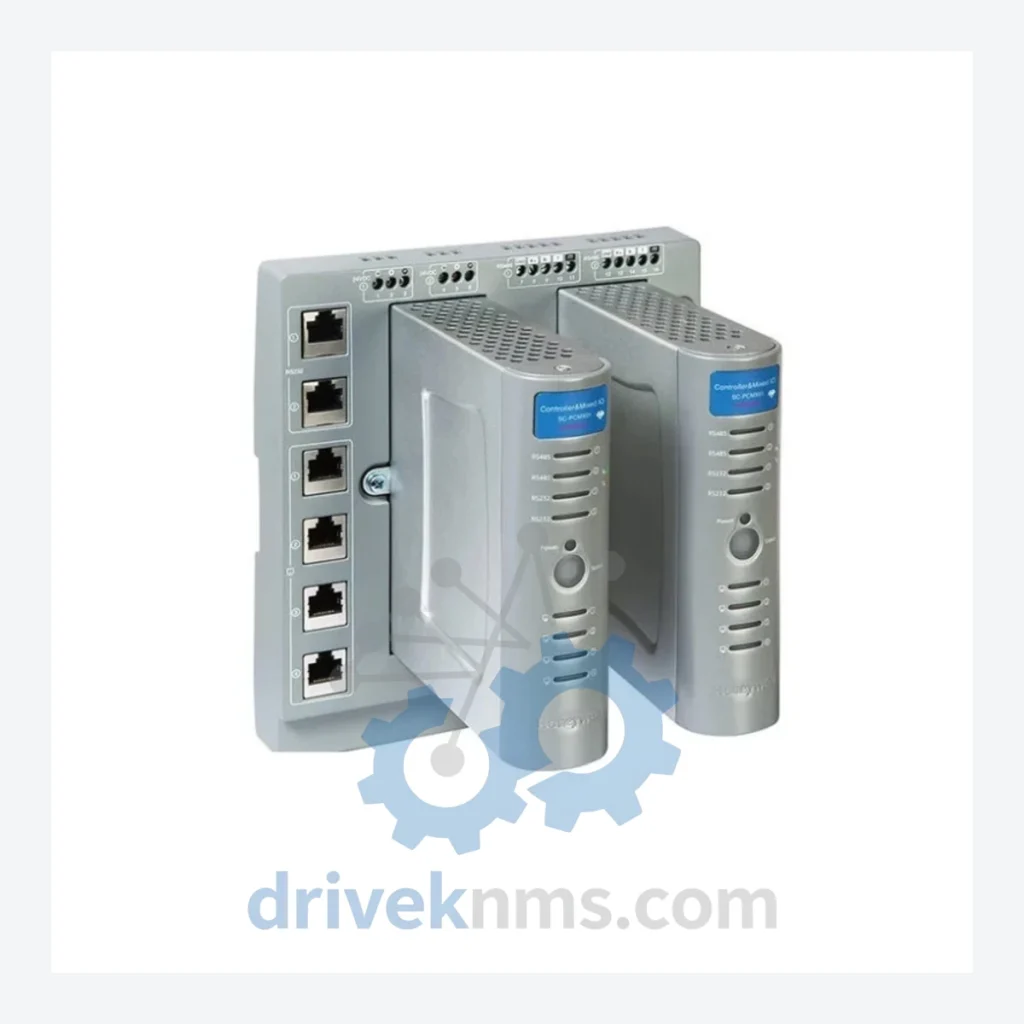

Honeywell Safety Manager SC-UCNN11 Modules

Technical Dossier

Product Details And Specifications

Honeywell Safety Manager Series Technical Notes

The SC-UCNN11 is the Universal Controller Node within the Safety Manager platform, providing the core processing and redundancy management functions for the SM cabinet. It supports Hot Standby redundancy, deterministic scan execution, and direct backplane communication with I/O modules across the SM bus. Facilities running SC-UCNN11-based safety systems face a critical sourcing challenge: as the platform matures, OEM availability contracts while the operational demand for certified spare units remains constant.

The Evolution of Safety Manager Architecture

Honeywell introduced the Safety Manager platform in the early 2000s as a successor to its FSC (Fail Safe Controller) line, which had served the process industry since the 1980s. The FSC platform — built around the H41q and H51q processor cards — established the architectural principles of triple modular redundancy (TMR) and voted logic that Safety Manager inherited and extended.

The Safety Manager first generation (SM R100–R130) established the SC-series controller and UCN/FTE communication backbone. The second generation (SM R200+) introduced enhanced diagnostics, expanded I/O density, and tighter Experion PKS integration via the Safety Builder engineering environment. The SC-UCNN11 belongs to the mature SM hardware generation, designed for UCN (Universal Control Network) connectivity — the same network backbone used across Honeywell TPS and Experion systems, ensuring backward compatibility with legacy plant infrastructure.

As Honeywell transitions customers toward the Safety Manager SC (next-generation platform with updated hardware form factors), the original SM hardware enters a lifecycle phase where OEM repair and replacement support diminishes. Plants operating on 10–20 year maintenance cycles cannot justify full system replacement and instead rely on qualified third-party sources for certified spare modules.

Safety Manager Full Catalog & Functionalities (SKU List)

The following represents a structured reference catalog of confirmed Safety Manager series modules, organized by functional category. All SKUs listed are genuine Honeywell Safety Manager platform components.

Controllers & Processor Modules

• SC-UCNN11: Universal Controller Node, UCN interface, Hot Standby redundancy support
• SC-UCNN01: Universal Controller Node, single UCN port, base controller variant
• SC-UCMN01: Universal Controller Module, FTE (Fault Tolerant Ethernet) network interface
• SC-UCMN11: Universal Controller Module, dual FTE ports, enhanced redundancy configuration
• SC-PPCN01: Power supply and processor combination node, integrated cabinet power management

Digital Input (DI) Modules

• SC-DI16A: 16-channel 24 VDC digital input, SIL 2 rated, field-side isolated
• SC-DI16B: 16-channel 120 VAC digital input module, high-voltage field interface
• SC-DI08A: 8-channel digital input, high-density SIL 3 configuration
• SC-DIOL01: Digital I/O link module, backplane bus extension for remote I/O racks

Digital Output (DO) Modules

• SC-DO16A: 16-channel 24 VDC digital output, solid-state, SIL 2 rated
• SC-DO08A: 8-channel digital output, high-current capacity, relay-compatible

Analog Input (AI) Modules

• SC-AI16A: 16-channel 4–20 mA analog input, HART pass-through capable
• SC-AI08A: 8-channel analog input, high-resolution 16-bit ADC, SIL 2

Communication & Network Modules

• SC-FTEB01: FTE (Fault Tolerant Ethernet) bridge module, SM-to-Experion PKS integration
• SC-NMEC01: Modbus/TCP communication module, third-party system interface
• SC-UCNN21: Dual UCN controller node, extended network redundancy for large safety systems

Power Supply Modules

• SC-PSSU01: 24 VDC redundant power supply unit, cabinet-level power distribution
• SC-PSSU11: Enhanced power supply with diagnostics output, hot-swap capable

Quality Control for the Safety Manager Range

Safety Manager modules — particularly controller nodes and communication modules — contain complex backplane connectors, FPGA-based logic, and battery-backed memory that require systematic verification before deployment as spares. DriveKNMS applies a structured inspection and functional test protocol to all SM hardware:

• Step 1 – Physical Inspection: Full visual examination of PCB, backplane connector pins, and housing for mechanical damage, corrosion, or evidence of field repair.
• Step 2 – Electrolytic Capacitor Assessment: Capacitance and ESR measurement on all electrolytic capacitors. Units with out-of-spec capacitors are flagged for component-level refurbishment before further testing.
• Step 3 – Firmware Version Verification: Firmware revision is read and documented. Compatibility with target SM system revision is confirmed against Honeywell's SM compatibility matrix.
• Step 4 – Backplane Bus Communication Test: Module is installed in a reference SM rack and bus communication integrity is verified under simulated load conditions.
• Step 5 – Functional Logic Test: For controller nodes, redundancy switchover behavior is tested. For I/O modules, channel-by-channel signal integrity is verified against factory specification tolerances.

Units that pass all five stages are documented with a test record and shipped with full traceability. Units that fail any stage are either refurbished to specification or quarantined — they are never sold as functional spares.
