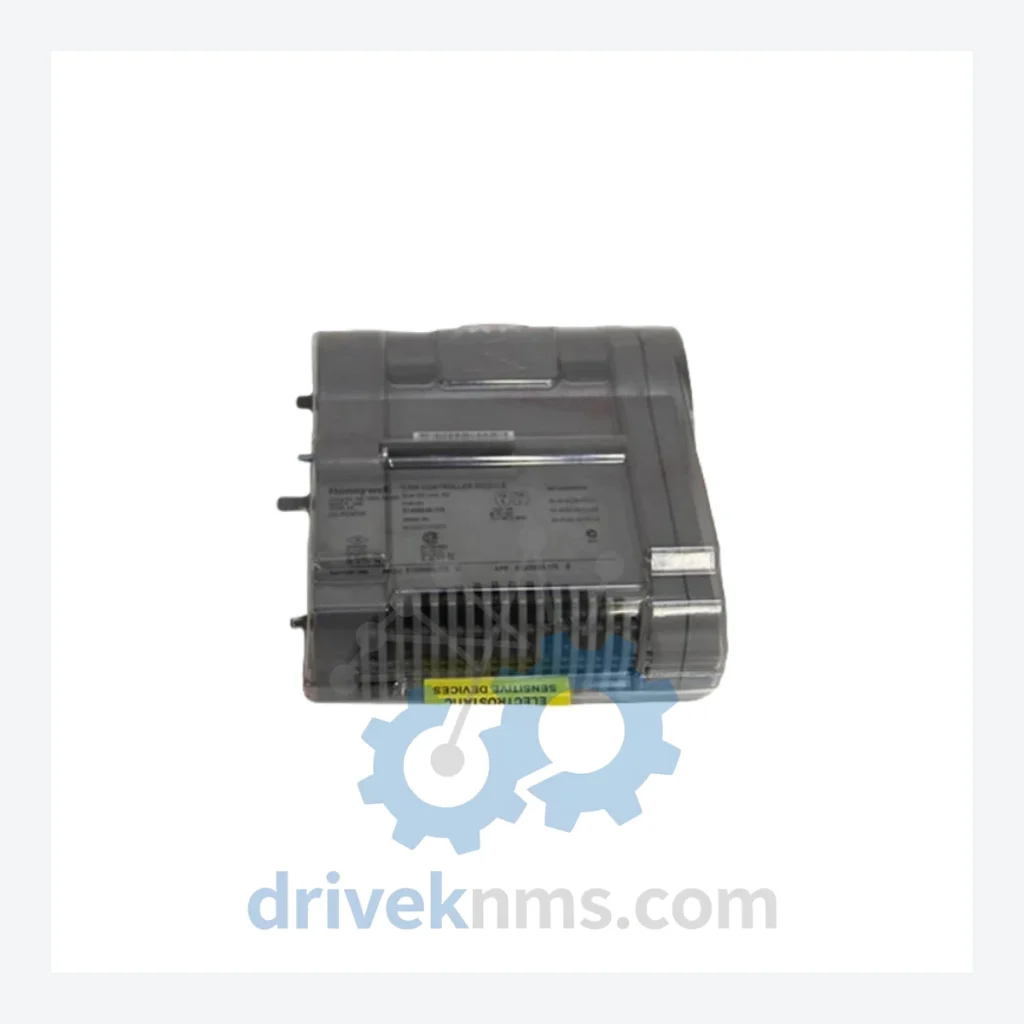

Honeywell SP-EMD174-ESD Safety Manager FSC Series Modules

Technical Dossier

Product Details And Specifications

Honeywell Safety Manager (FSC) Series Technical Notes

The Honeywell Safety Manager (SM) series — commercially designated as the Fail Safe Controller (FSC) platform — is one of the most widely deployed safety instrumented system (SIS) architectures in global heavy industry. Installed across petrochemical complexes, LNG terminals, nuclear power stations, offshore platforms, and refinery process units, the FSC/SM platform holds IEC 61508 SIL 2 and SIL 3 certifications and has accumulated decades of field-proven reliability in environments where functional safety is non-negotiable. The SP-EMD174-ESD is a non-redundant controller module within this platform, designed for emergency shutdown (ESD) applications where a single-channel safety logic solver is sufficient per the site's safety requirements specification (SRS).

The Evolution of Safety Manager (FSC) Architecture

The FSC platform originated in the early 1990s under Honeywell's industrial safety division, initially marketed under the TotalPlant Safety Manager (TPSM) brand before consolidation into the unified Safety Manager nomenclature. The architecture is built around a triple modular redundancy (TMR) backplane bus with deterministic scan cycles, supporting both redundant and non-redundant controller configurations. Early hardware generations used proprietary EEPROM-based logic execution; later revisions introduced flash-based firmware with online download capability. The SP-EMD series represents the embedded controller module family, with the SP-EMD174-ESD variant specifically optimized for non-redundant ESD logic execution. As the platform has matured into its end-of-life and limited-support phase, migration paths to Honeywell's Safety Manager SC (SMSC) platform have been formally documented, though the installed base of legacy FSC hardware remains extensive and active across long-lifecycle facilities. Compatibility between FSC generations is constrained by backplane revision, firmware version, and I/O bus protocol — cross-generation substitution requires engineering validation.

Safety Manager FSC Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced modules within the Honeywell Safety Manager / FSC platform. Modules are classified by functional category.

Controllers & Processors

• SP-EMD174-ESD: Non-redundant ESD controller module, single-channel safety logic execution
• SP-EMD174-ESD-R: Redundant ESD controller module, dual-channel hot-standby configuration
• SP-EMD172: Standard FSC processor module, general-purpose safety logic controller
• SP-EMD172-R: Redundant FSC processor, dual-processor hot-standby with bumpless transfer
• SP-EMD176: High-capacity controller module, extended memory and scan rate for large I/O counts

Digital Input (DI) Modules

• SP-DI8H: 8-channel 24VDC digital input module, high-density, SIL 2 rated
• SP-DI16H: 16-channel 24VDC digital input, field-proven in ESD voting logic applications
• SP-DI8-120VAC: 8-channel 120VAC digital input module for legacy field wiring compatibility
• SP-DI8-230VAC: 8-channel 230VAC digital input, used in European-standard installations

Digital Output (DO) Modules

• SP-DO8H: 8-channel 24VDC digital output, relay-driven, SIL 2 certified
• SP-DO4R: 4-channel relay output module, used for final element actuation in ESD loops
• SP-DO8-120VAC: 8-channel 120VAC digital output for solenoid valve and actuator control

Analog Input (AI) Modules

• SP-AI8H: 8-channel 4–20mA analog input, HART-capable, used for pressure and temperature SIS loops
• SP-AI4H: 4-channel analog input module, high-accuracy, SIL 2 rated for critical measurement

Communication & Network Adapters

• SP-COMM-MOD: FSC communication module, Modbus RTU/TCP gateway for DCS integration
• SP-NET-ETH: Ethernet network adapter for Safety Manager supervisory connectivity

Power Supply Modules

• SP-PS24VDC: 24VDC redundant power supply module for FSC chassis
• SP-PS-UPS: Uninterruptible power supply interface module, battery-backed operation
