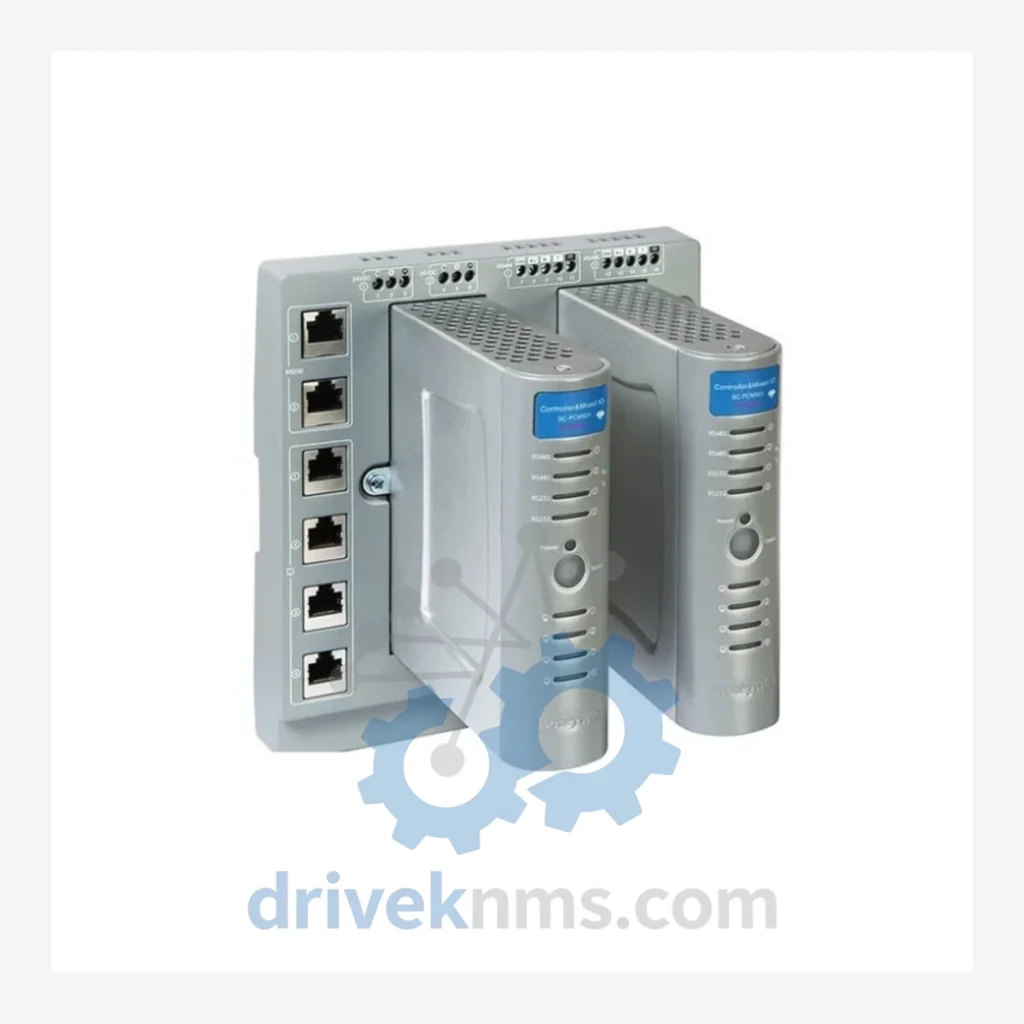

Honeywell Safety Manager FSC Series Modules: SP-EMD174 Non-Redundant Controller

Technical Dossier

Product Details And Specifications

Honeywell Safety Manager FSC Series Technical Notes

The Honeywell Safety Manager (SM) / Fail Safe Controller (FSC) series is one of the most widely deployed safety instrumented system (SIS) platforms in global heavy industry. Certified to IEC 61508 SIL 3 and IEC 61511, FSC installations are documented across petrochemical complexes, LNG terminals, nuclear power stations, offshore platforms, and refinery process units on every inhabited continent. The platform's modular backplane architecture — supporting both simplex and redundant CPU configurations — has made it the reference standard for safety logic solvers in facilities where process uptime and functional safety certification are non-negotiable requirements. The SP-EMD174 is the non-redundant controller module within this architecture, providing the core logic execution function in simplex safety loop configurations.

The Evolution of Safety Manager FSC Architecture

The FSC platform originated in the early 1990s under Fail Safe Controls Ltd before Honeywell's acquisition integrated it into the Safety Manager product line. The first-generation FSC hardware used a VME-based backplane with discrete I/O modules communicating over a proprietary serial bus. By the mid-1990s, the architecture transitioned to the current rack-and-module format with standardized SP-prefix part numbers, enabling field-replaceable modules without full system reconfiguration.

The second-generation FSC introduced redundant CPU pairing (SP-EMD174 simplex vs. SP-EMD174R redundant configurations), dual-channel I/O voting logic, and expanded communication adapter support for MODBUS RTU, PROFIBUS DP, and Ethernet-based supervisory links. The third-generation Safety Manager platform (post-2010) introduced the Safety Manager SC (SMSC) variant with updated processor cards and expanded memory, while maintaining backward compatibility with legacy FSC I/O modules at the rack level — a critical design decision that extended the operational life of installed bases by over a decade.

As of 2026, the FSC hardware line is in the mature/end-of-life phase. Honeywell has transitioned new project specifications to the Safety Manager SC and Safety Manager MC platforms. However, the installed base of FSC systems in operating facilities remains substantial, and replacement modules — particularly controllers, power supplies, and communication adapters — are in active demand for maintenance, repair, and overhaul (MRO) programs.

Safety Manager FSC Full Catalog & Functionalities (SKU List)

Controllers & CPUs

• SP-EMD174: Non-redundant FSC controller module; primary logic solver for simplex SIS configurations.
• SP-EMD174R: Redundant FSC controller module; paired CPU for hot-standby redundant safety loop execution.
• SP-EMD175: Enhanced FSC controller with expanded program memory; supports larger safety application databases.
• SP-EMD176: High-speed FSC controller variant; reduced scan cycle time for fast-response process applications.

Digital Input (DI) Modules

• SP-DI8X1: 8-channel 24 VDC digital input module; single-channel, non-voting.
• SP-DI8X2: 8-channel 24 VDC digital input module; dual-channel voting configuration.
• SP-DI16X1: 16-channel 24 VDC digital input; high-density simplex I/O for field device monitoring.
• SP-DI8X3: 8-channel 120 VAC digital input module; for legacy field wiring at higher voltage levels.

Digital Output (DO) Modules

• SP-DO8X1: 8-channel 24 VDC digital output; de-energize-to-trip (DETT) relay driver.
• SP-DO8X2: 8-channel dual-channel digital output; 1oo2 voting output for SIL 2/3 final elements.
• SP-DO4X1: 4-channel high-current digital output; for solenoid valve and actuator drive applications.

Analog Input (AI) Modules

• SP-AI8X1: 8-channel 4–20 mA analog input; HART-transparent, single-channel.
• SP-AI8X2: 8-channel dual-channel analog input; supports 2oo3 voting with paired modules.
• SP-AI4X1: 4-channel high-accuracy analog input; ±0.1% full-scale accuracy for precision measurement loops.

Communication Adapters

• SP-CAN001: MODBUS RTU communication adapter; RS-485 interface for DCS/SCADA supervisory link.
• SP-CAN002: PROFIBUS DP communication adapter; for integration with Siemens and ABB DCS platforms.
• SP-CAN003: Ethernet TCP/IP communication adapter; OPC-DA gateway for historian and HMI connectivity.

Power Supply Modules

• SP-PSU24: 24 VDC rack power supply; 10 A output, redundant-capable with load-sharing diode assembly.
• SP-PSU48: 48 VDC rack power supply; for extended-voltage backplane configurations in offshore applications.

Sourcing Hard-to-Find & Obsolete Safety Manager FSC Parts

Customers requiring cross-reference to Safety Manager SC equivalents for upgrade planning can request a module-by-module compatibility assessment. DriveKNMS technical staff maintain mapping tables between legacy FSC part numbers and current SM SC hardware for common I/O and controller configurations.

Quality Control for the Safety Manager FSC Range

FSC modules present specific test challenges due to their safety-rated backplane communication protocol and dual-channel I/O voting architecture. Standard functional test benches used for commercial PLC modules are not adequate for FSC hardware verification.

DriveKNMS applies the following test protocol to all FSC modules prior to dispatch:

• Backplane communication verification: Each module is seated in a live FSC rack and polled by an FSC controller running a diagnostic application. Module address assignment, communication handshake, and error flag status are confirmed.
• I/O channel functional test: All input channels are stimulated with calibrated signals (4–20 mA for analog, 24 VDC for digital). Output channels are loaded and switching verified. Dual-channel modules are tested for correct voting logic behavior.
• Controller execution test (SP-EMD174 specific): The SP-EMD174 is loaded with a reference safety application and executed through a minimum of 500 scan cycles. Watchdog timer function, memory integrity check, and communication adapter polling are verified.
• Thermal soak: Modules are operated at 45°C ambient for 4 hours to screen for latent component failures.
• Documentation: Each unit ships with a test record including serial number, test date, technician ID, and pass/fail results for each test step.
