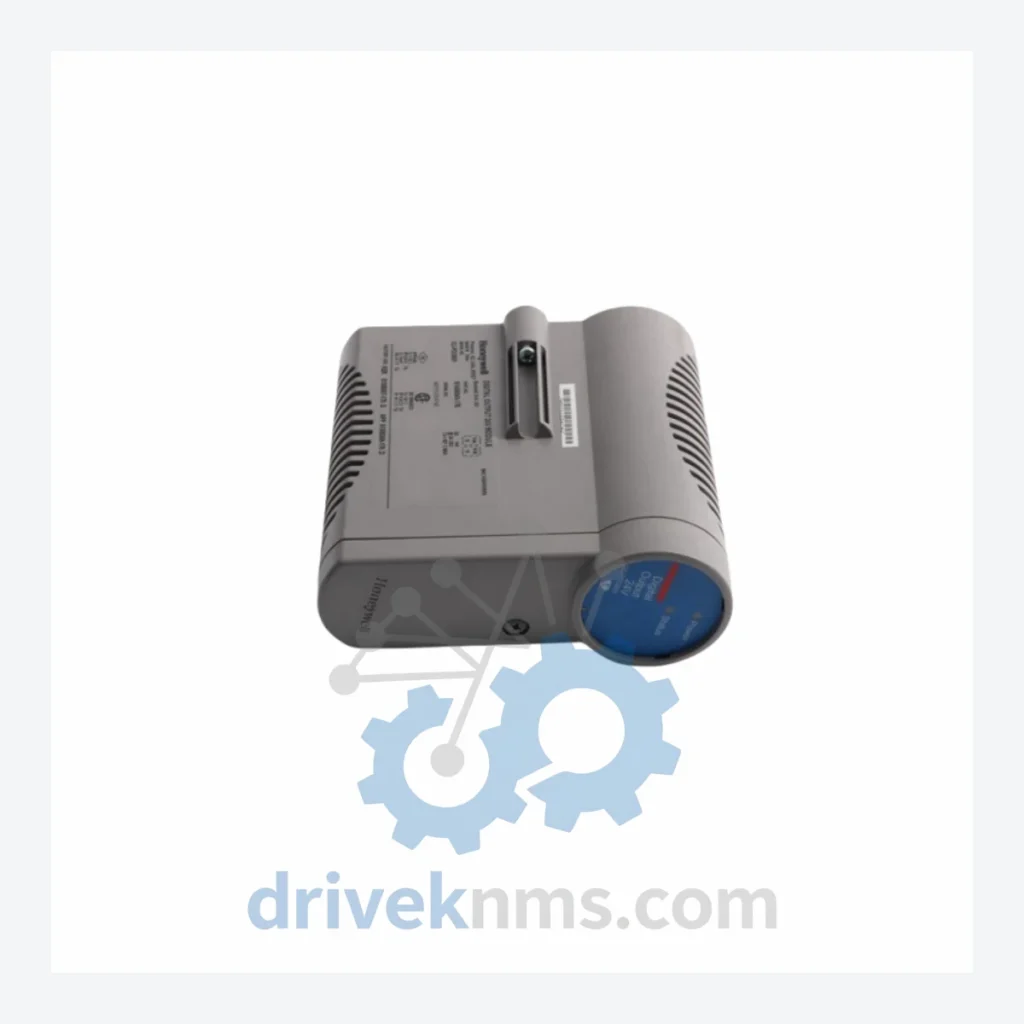

Honeywell TC-FFC010: TotalPlant Solution (TPS) Redundant Power Supply Module

Technical Dossier

Product Details And Specifications

Honeywell TC-FF Series Technical Notes

The Honeywell TC-FF series is a core hardware family within the TotalPlant Solution (TPS) and TDC 3000 Distributed Control System (DCS) platform — one of the most widely deployed process automation architectures in global heavy industry. Installations span petrochemical complexes, crude oil refineries, nuclear power generation facilities, LNG terminals, and large-scale chemical manufacturing plants across North America, Europe, the Middle East, and Asia-Pacific. The TC-FFC010, a redundant power supply module, is a critical infrastructure component within this ecosystem, providing fault-tolerant DC power distribution to Field Control Processor (FCP) and High-Performance Process Manager (HPPM) node assemblies. The TC-FF series remains in active service at thousands of sites where full DCS migration is not economically viable, making reliable spare parts sourcing a primary operational concern for plant engineers and reliability teams.

The Evolution of TC-FF Series Architecture

The TC-FF hardware lineage originates from Honeywell's TDC 3000 platform, introduced in the early 1980s as one of the first commercially successful distributed control architectures for continuous process industries. The original TDC 3000 used a proprietary Local Control Network (LCN) and Universal Control Network (UCN) topology. As the platform evolved into the TPS (TotalPlant Solution) branding through the 1990s and 2000s, the TC-FF module family was standardized to support the Field Control Processor (FCP) and its successor, the High-Performance Field Control Processor (HPFCP).

Key architectural milestones include the transition from single-redundancy to full dual-redundancy power supply configurations (addressed by modules such as the TC-FFC010), the introduction of enhanced diagnostics via the Universal Station (US) and Application Module (AM), and the gradual integration of Ethernet-based supervisory connectivity. Compatibility between early TDC 3000 I/O termination assemblies and later TPS controller nodes is a known engineering constraint — field wiring and termination panels from legacy installations are generally retained, while controller and power modules are upgraded selectively. The TC-FF series bridges this compatibility gap, allowing sites to extend asset life without full rewiring campaigns.

As of 2026, the TPS/TDC 3000 platform is classified by Honeywell as a mature/end-of-life product line. Honeywell's Experion PKS (Process Knowledge System) is the designated migration target. However, the installed base remains substantial, and many operators have elected to maintain TPS infrastructure under long-term service agreements or through third-party spare parts suppliers rather than undertake capital-intensive migration projects.

TC-FF Series Full Catalog & Functionalities (SKU List)

Power Supply Modules

• TC-FFC010: Redundant DC power supply module for FCP/HPPM node; provides fault-tolerant power distribution with automatic switchover.
• TC-FFC020: Enhanced redundant power supply; supports higher current draw configurations for expanded I/O node assemblies.
• TC-FFPS01: Primary power supply unit for standard FCP node; non-redundant single-rail configuration.

Field Control Processor (FCP) Modules

• TC-FCP270: Field Control Processor 270; primary controller node for TPS process control loops, supports UCN communication.
• TC-FCP280: Field Control Processor 280; enhanced FCP with expanded memory and faster scan rates.
• TC-FFCPU01: CPU board assembly for FCP node; direct replacement for processor card failures.

Analog Input (AI) Modules

• TC-IAH161: 16-channel analog input module; 4–20 mA HART-compatible, for process variable acquisition.
• TC-IAH081: 8-channel analog input; high-density configuration for temperature and pressure transmitter inputs.
• TC-IAD081: 8-channel analog input, non-HART; standard 4–20 mA signal conditioning.

Analog Output (AO) Modules

• TC-OAH081: 8-channel analog output; 4–20 mA HART, for control valve and positioner interfaces.
• TC-OAD081: 8-channel analog output, non-HART; standard current loop output for final control elements.

Digital Input (DI) Modules

• TC-IDG161: 16-channel digital input; 24 VDC discrete signal acquisition for limit switches and contact closures.
• TC-IDG081: 8-channel digital input; isolated discrete input for safety interlock monitoring.

Digital Output (DO) Modules

• TC-ODG161: 16-channel digital output; 24 VDC sourcing output for solenoid valves and relay coils.
• TC-ODG081: 8-channel digital output; isolated discrete output for motor starter and actuator control.

Communication & Network Modules

• TC-FPCN01: UCN (Universal Control Network) interface card; provides node-level network connectivity within TPS architecture.
• TC-FFNI01: Network interface module; supports redundant UCN cabling configurations.

Quality Control for the TC-FF Series Range

TC-FF series modules — particularly power supply and controller assemblies — incorporate multi-layer backplane bus interfaces and proprietary communication protocols that require specialized test procedures beyond standard bench power-on verification. DriveKNMS applies the following quality control protocol to all TC-FF series inventory:

• Visual inspection for PCB damage, capacitor condition, and connector integrity on all backplane and field wiring interfaces.
• Functional power-on test under rated load conditions, verifying output voltage stability and redundancy switchover response for power supply modules such as the TC-FFC010.
• UCN communication verification using Honeywell-compatible network test equipment to confirm node-level protocol compliance for FCP and network interface modules.
• Burn-in cycle (minimum 48 hours) for controller and CPU modules to screen for early-life component failures.
• Firmware revision documentation and cross-reference against known hardware compatibility matrices for the target TPS system version.
