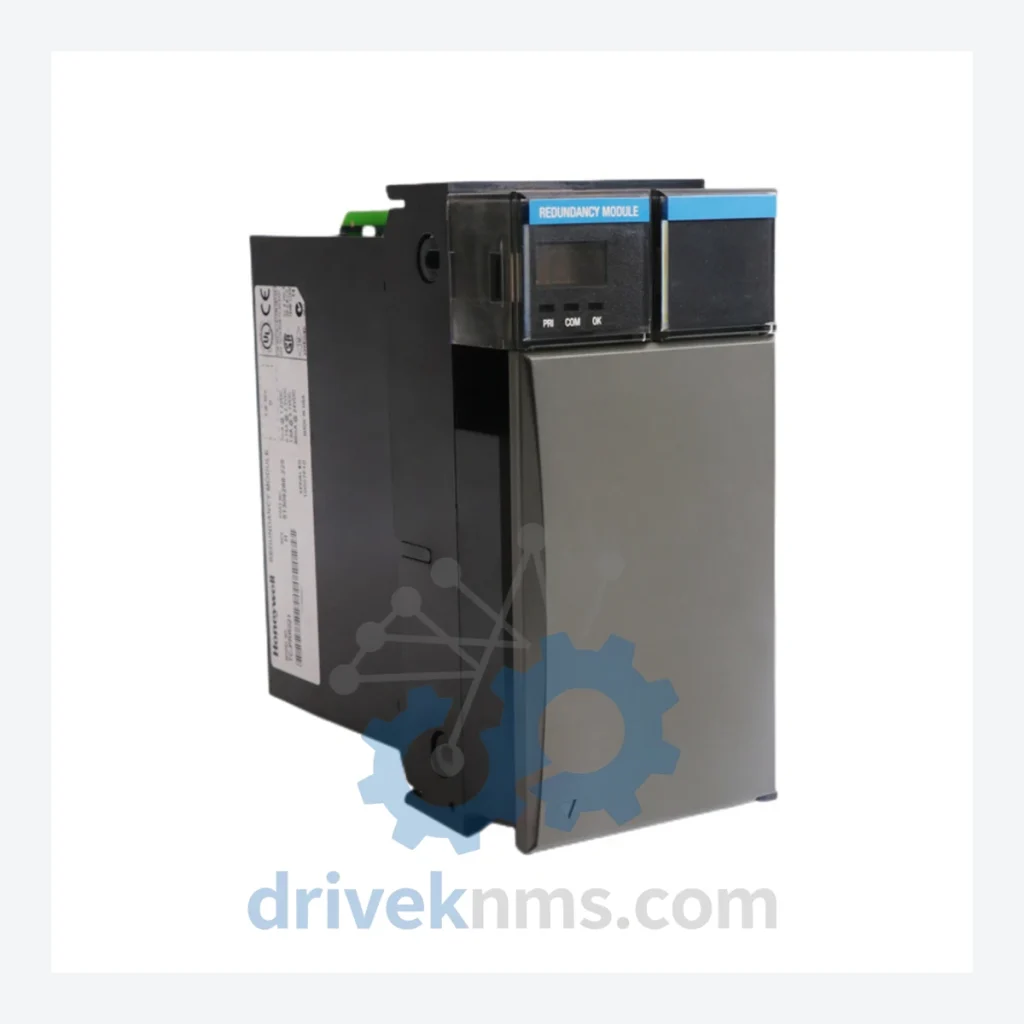

Honeywell TC-PRR021 51309288-225 Redundancy Module

Technical Dossier

Product Details And Specifications

Honeywell TC Series Technical Notes

The Honeywell TC Series — anchored within the Experion Process Knowledge System (PKS) and TotalPlant Solution (TPS) distributed control architecture — represents one of the most widely deployed DCS module families in global heavy industry. Installations span petrochemical complexes, nuclear power stations, offshore platforms, crude oil refineries, and large-scale chemical processing facilities across North America, Europe, the Middle East, and Asia-Pacific. The TC Series designation covers a broad range of I/O modules, controller cards, redundancy modules, communication adapters, and power supply units engineered for continuous 24/7 operation in Safety Integrity Level (SIL)-rated environments. The TC-PRR021 (P/N 51309288-225) is a process redundancy module designed to maintain controller availability through automatic failover, a critical function in any uninterruptible process control loop.

The Evolution of TC Series Architecture

The Honeywell TC Series traces its lineage to the TDC 3000 platform introduced in the 1980s, which established the foundational bus-based DCS architecture that subsequent generations inherited. The transition to the TotalPlant Solution (TPS) in the 1990s introduced the Universal Control Network (UCN) and the High-Performance Process Manager (HPPM), with TC-designated modules serving as the primary I/O and control layer. The Experion PKS platform, launched in the early 2000s, unified the TC Series hardware under a modern OPC-based supervisory layer while maintaining backward compatibility with legacy TPS racks and cabling — a deliberate design decision that extended the operational life of installed TC hardware by over two decades. The C300 Controller, introduced mid-2000s, became the dominant CPU in new TC Series installations, supported by CHARM (Characterization Module) I/O for flexible field wiring. As of 2026, the TC Series occupies a mature-to-legacy lifecycle phase: Honeywell continues to supply select modules under long-term support agreements, but many sub-variants — including the TC-PRR021 — are no longer in active production, making certified aftermarket sourcing essential for plant maintenance teams.

TC Series Full Catalog & Functionalities (SKU List)

The following represents a cross-functional index of verified TC Series module part numbers, organized by functional category:

Redundancy & Controller Modules

TC-PRR021 (51309288-225): Process redundancy module; enables automatic controller failover in Experion PKS C300 clusters.
TC-CCR014: C300 Controller Card; primary CPU for Experion PKS process control loops, dual-redundancy capable.
TC-CCR013: C300 Controller Card variant; earlier revision with reduced memory allocation, compatible with legacy CEEC racks.
TC-FPCXX02: Fault-tolerant process controller; used in high-availability SIL 2 process segments.
TC-PRR011: Earlier-generation redundancy module; compatible with PM/APM processor pairs in TPS environments.

Analog Input (AI) Modules

TC-IAH161: 16-channel analog input, HART-enabled; 4–20 mA field signal acquisition for transmitter loops.
TC-IAH081: 8-channel analog input with HART; used in space-constrained marshalling cabinets.
TC-IAS081: 8-channel analog input, non-HART; standard 4–20 mA process variable acquisition.
TC-IAD081: 8-channel differential analog input; suited for thermocouple and RTD signal conditioning.

Analog Output (AO) Modules

TC-OAH081: 8-channel analog output, HART-enabled; 4–20 mA control signal to final control elements.
TC-OAS081: 8-channel analog output, non-HART; standard valve positioner and actuator control.

Digital Input (DI) Modules

TC-IDJ161: 16-channel 24 VDC digital input; discrete field device status acquisition.
TC-IDK161: 16-channel 120 VAC digital input; motor starter and breaker status monitoring.
TC-IDD161: 16-channel dry contact digital input; used with relay output field devices.

Digital Output (DO) Modules

TC-ODJ081: 8-channel 24 VDC digital output; solenoid valve and relay coil actuation.
TC-ODK081: 8-channel 120 VAC digital output; motor control center interface.

Communication & Network Adapters

TC-FPCXX01: FTE (Fault Tolerant Ethernet) network interface card; dual-port redundant Ethernet for Experion server communication.
TC-RPCXX02: Remote I/O controller; extends TC Series I/O to remote process areas via FTE backbone.

Power Supply Modules

TC-PPCXX02: 24 VDC redundant power supply module; dual-feed input for uninterrupted rack power.
TC-PPCXX01: Standard rack power supply; single-feed 24 VDC, used in non-redundant auxiliary racks.
