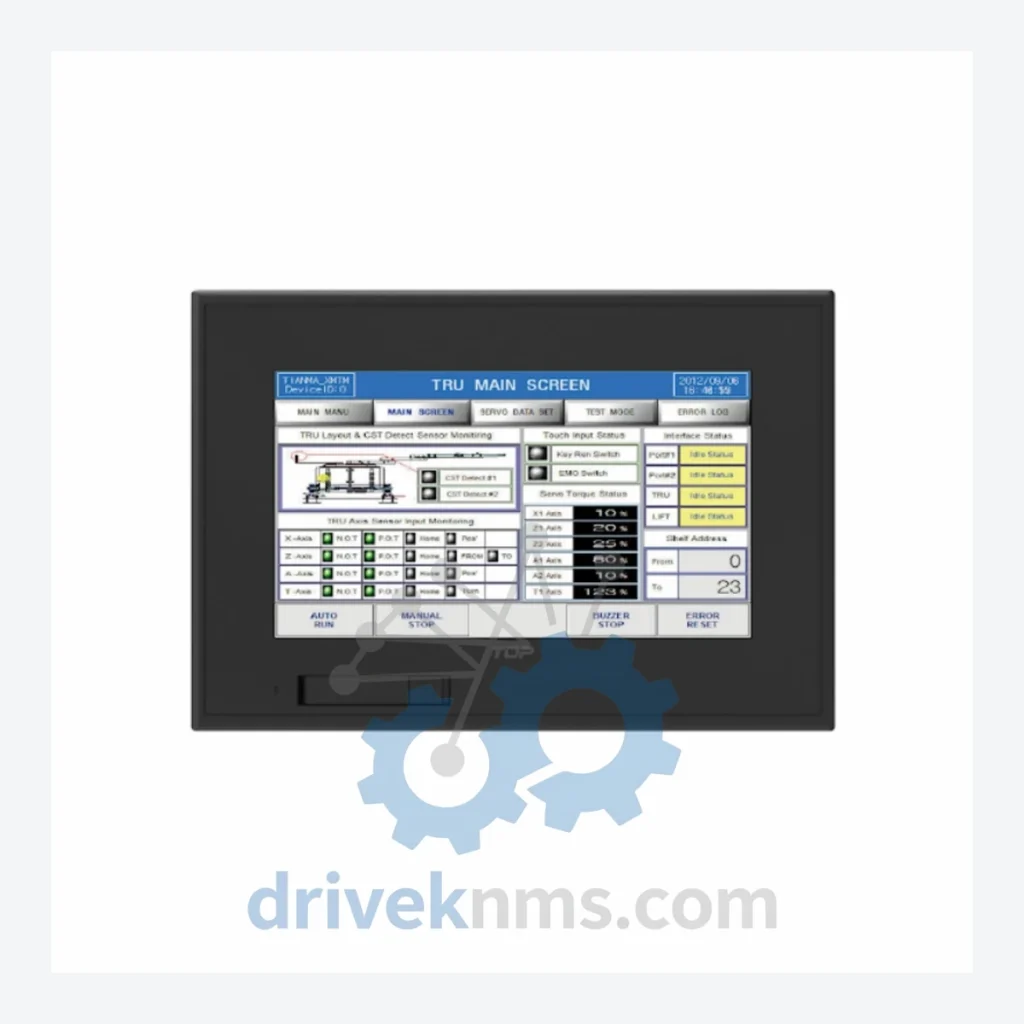

Model: TOPRE0700WD
Product Overview
Commercial availability is handled through direct RFQ, model verification and export-oriented follow-up rather than public cart checkout.
Datasheet Preview
Use attached product manuals when available. If the manual is not public yet, request the full file directly through RFQ.
Commercial Path
Product pages on DRIVEKNMS are designed to verify model, brand and series first, then move the buyer into one clean quotation path.
Technical Dossier
The Honeywell TOPRE series represents a standardized line of operator interface (HMI) touch screen panels engineered for deployment in continuous-process heavy industries including petrochemical refining, nuclear power generation, pulp and paper manufacturing, and offshore oil and gas platforms. These panels serve as the primary human-machine interface layer within Honeywell's distributed control system (DCS) architectures, most notably the TotalPlant Solution (TPS) and Experion PKS environments. Installed base counts for the TOPRE family span tens of thousands of units globally, with significant concentrations in facilities operating 24/7 under IEC 61511 functional safety requirements. The series is characterized by its ruggedized enclosure ratings, resistive or capacitive touch overlays, and compatibility with Honeywell's proprietary LCN (Local Control Network) and UCN (Universal Control Network) backplane communication protocols.
The TOPRE product line originated as a replacement and upgrade path for earlier Honeywell operator stations, including the US and GUS (Global User Station) terminals used in TDC 3000 and TPS systems. Early TOPRE units (circa late 1990s–early 2000s) were designed around CRT-based display technology with serial RS-232/RS-485 communication interfaces. The transition to flat-panel LCD technology occurred progressively through the mid-2000s, with panel sizes standardizing at 7-inch, 10-inch, 12-inch, and 15-inch diagonal formats. Subsequent hardware revisions introduced resistive touch overlays rated for gloved-hand operation, a critical requirement in chemical plant environments where operators wear PPE. Later generations incorporated USB host ports for configuration download, Ethernet 10/100 connectivity for integration with Experion PKS supervisory layers, and NEMA 4/4X front-panel ratings for washdown environments. The TOPRE0700WD specifically denotes a 7-inch wide-format display variant with washdown-rated (WD) enclosure construction. As the broader TPS/Experion ecosystem has matured, many TOPRE variants have transitioned to end-of-sale status, making third-party lifecycle support the primary procurement channel for maintenance and capital spares.
The following SKUs represent verified models within the Honeywell TOPRE operator interface panel family, organized by display size and enclosure variant. Each entry reflects a distinct hardware configuration available as a spare or replacement unit.
TOPRE0700WD: 7-inch widescreen LCD touch panel, NEMA 4X washdown-rated front bezel, resistive touch overlay, LCN/UCN compatible.
TOPRE0700: 7-inch standard LCD touch panel, NEMA 12 rated, resistive touch, panel-mount configuration.
TOPRE1000: 10-inch LCD operator panel, NEMA 12, resistive touch, 800×600 resolution, RS-232 and Ethernet ports.
TOPRE1000WD: 10-inch widescreen LCD, NEMA 4X washdown, resistive touch overlay, suitable for food/beverage and chemical environments.
TOPRE1200: 12-inch LCD touch panel, NEMA 12, 1024×768 resolution, dual serial ports, panel-mount.
TOPRE1200WD: 12-inch widescreen, NEMA 4X washdown-rated, 1024×768, resistive touch, stainless steel bezel option.
TOPRE1500: 15-inch LCD operator interface, NEMA 12, 1024×768, USB host, Ethernet 10/100, LCN-compatible firmware.
TOPRE1500WD: 15-inch widescreen, NEMA 4X washdown, 1024×768, USB and Ethernet, chemical-resistant front panel.
TOPRE0700-E: 7-inch panel, Ethernet-only communication variant, no serial ports, Experion PKS direct integration.
TOPRE1000-E: 10-inch Ethernet-only variant, Experion PKS compatible, 800×600, panel-mount.
TOPRE1200-E: 12-inch Ethernet-only, 1024×768, Experion PKS integration, USB configuration port.
TOPRE1500-E: 15-inch Ethernet-only, 1024×768, full Experion PKS supervisory layer compatibility.
TOPRE0700-R: 7-inch panel, rack-mount variant, 19-inch rack compatible, NEMA 12.
TOPRE1000-R: 10-inch rack-mount, 19-inch rack, NEMA 12, dual serial and Ethernet.
TOPRE1500-R: 15-inch rack-mount, 19-inch rack, 1024×768, USB host, Ethernet, LCN/UCN firmware.
TOPRE1200-R: 12-inch rack-mount, NEMA 12, 1024×768, serial and Ethernet, panel configuration via USB.
TOPRE0700WD-S: 7-inch washdown panel with stainless steel front bezel, IP69K rated, for hygienic process environments.
