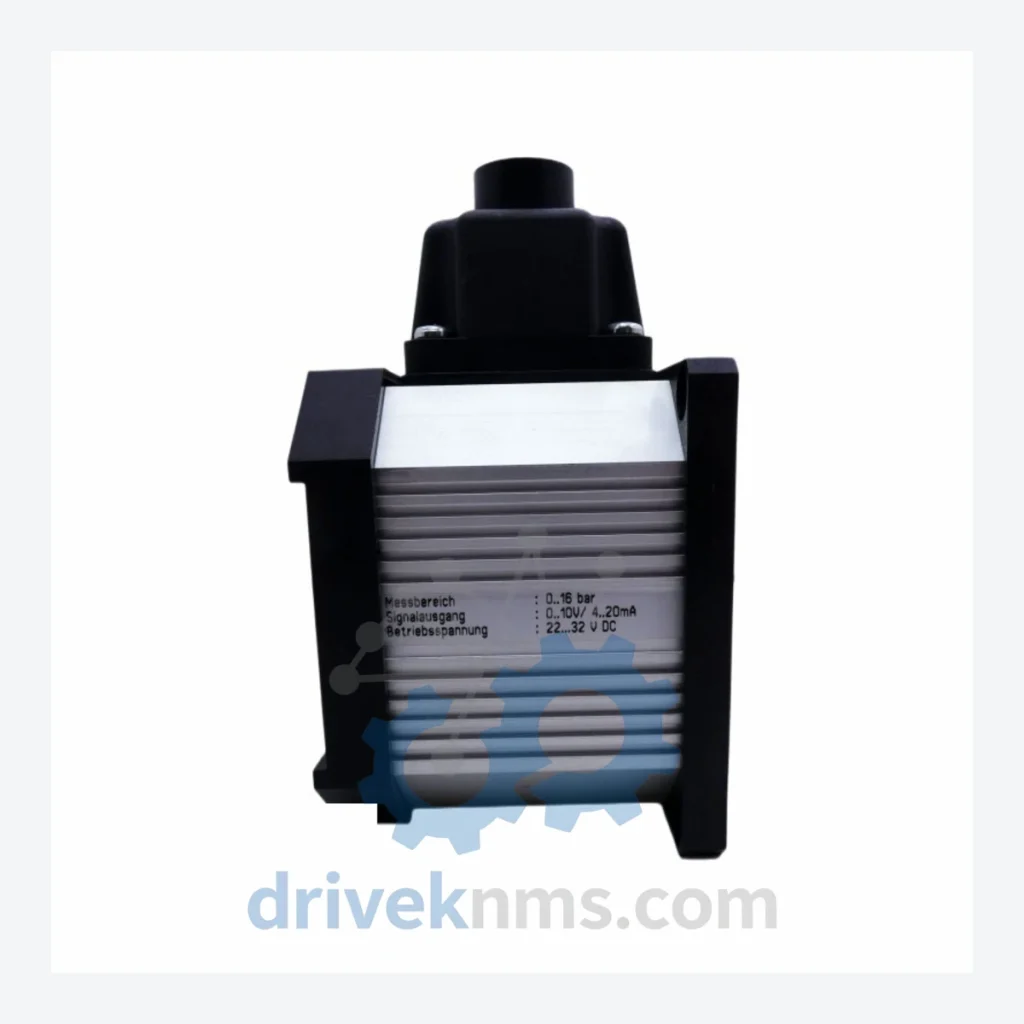

HYDAC EDS1791-N-016-000 Pressure Sensor – Obsolete EDS Series Spare Part

When a pressure sensor fails on a legacy hydraulic system, the instinct is to call the OEM — only to be told the part is discontinued, lead time is 6–9 months, or the replacement requires a full system re-engineering. For plant managers running HYDAC-integrated hydraulic circuits, that conversation carries a price tag that can reach hundreds of thousands of dollars in downtime, engineering hours, and forced capital expenditure. The HYDAC EDS1791-N-016-000 is no longer in active production. DriveKNMS holds verified physical stock of this unit, sourced through authorized industrial channels, and can ship within 48 hours of order confirmation.

Technical Specifications

Note: Additional electrical parameters (output signal type, supply voltage, connector type) are not confirmed from verified documentation and are intentionally omitted. Buyers requiring full datasheet confirmation should contact us directly before ordering.

Solving the Discontinued Hardware Crisis

The EDS 1700 series was widely deployed across industrial hydraulic systems throughout the 2000s and early 2010s — integrated into press lines, injection molding machines, mobile crane hydraulics, and centralized lubrication monitoring circuits. These systems were engineered around the specific signal behavior and mechanical interface of the EDS1791-N-016-000. Substituting a modern replacement sensor is rarely a direct swap: connector pinouts differ, output signal ranges may not match the PLC input card's expectations, and recalibration of pressure thresholds requires engineering time that most maintenance teams cannot absorb during an unplanned shutdown.

The practical reality for plant managers is this: a single unplanned line stoppage caused by a failed pressure sensor — combined with the engineering cost of retrofitting a non-compatible replacement — routinely exceeds the cost of maintaining a 2–3 unit buffer stock of the original part by a factor of 50 or more. Sourcing the EDS1791-N-016-000 as a direct replacement eliminates that risk entirely.

How to extend the service life of automation assets by 5–10 years through strategic spare parts management:

• Identify your single points of failure. Pressure sensors, flow switches, and proximity sensors are high-wear items. Map every EDS-series sensor in your facility and cross-reference against current availability.
• Establish a minimum buffer stock policy. For discontinued sensors on critical circuits, a minimum of 2 units on-shelf is a defensible maintenance standard. The carrying cost is negligible against the cost of a production halt.
• Negotiate long-term supply agreements with specialist distributors. Spot-market sourcing of obsolete parts becomes progressively more expensive and unreliable as global stock depletes. Locking in supply now, while stock exists, is a straightforward asset protection measure.
• Document firmware and calibration baselines. For systems where the sensor interfaces with a digital controller, record the current calibration parameters before any replacement. This eliminates re-commissioning uncertainty.
• Defer system retirement decisions. A full hydraulic system replacement or PLC migration project carries capital costs that are rarely justified when the underlying failure is a single sensor. Maintaining original-spec spare parts is the lowest-cost path to extending asset life by a full operational cycle — typically 5 to 10 years.

Condition & Reliability Assurance

Obsolete parts sourced outside the OEM channel require a structured inspection protocol. DriveKNMS applies a 5-step quality assurance process to every EDS1791-N-016-000 unit before shipment:

1. Visual and mechanical inspection: Housing integrity, connector condition, and thread/port condition are checked against OEM dimensional references. Units with corrosion, impact damage, or connector pin deformation are rejected.
2. Electrolytic capacitor assessment: Internal capacitor aging is a primary failure mode in stored electronic sensors. Units are assessed for signs of capacitor degradation that would affect long-term reliability.
3. Firmware and configuration verification: Where applicable, factory configuration states are verified against known baseline records for the EDS 1700 series.
4. Pin and contact integrity check: Connector pins are inspected for oxidation, micro-corrosion, and mechanical deformation. Contact resistance is verified where test access permits.
5. Functional pressure response test: Units are bench-tested under controlled pressure conditions to confirm output signal behavior prior to packaging.

Units that do not pass all five stages are not offered for sale. Stock condition (new surplus or certified refurbished) is disclosed on the order confirmation.

Key Features for System Maintenance

• Drop-in replacement: The EDS1791-N-016-000 installs directly into the original mounting position with no mechanical modification required.
• No reprogramming required: The sensor operates on the same signal and configuration baseline as the original factory-installed unit. PLC parameters do not require adjustment.
• Avoids engineering retrofit costs: Using the original-spec part eliminates the need for signal conditioning hardware, wiring modifications, or PLC input card reconfiguration that a non-equivalent replacement would require.
• Immediate availability: Stock is held in-warehouse. Lead time from order confirmation to dispatch is 48 hours for standard shipments.
• Global shipping: DriveKNMS ships to all major industrial markets. Export documentation and customs support are available on request.

FAQ

What warranty applies to discontinued parts?
DriveKNMS provides a 90-day functional warranty on all EDS1791-N-016-000 units. The warranty covers failure under normal operating conditions and excludes damage caused by installation error, overpressure events, or incompatible system voltage.

How do I confirm the unit is new surplus or certified refurbished?
Condition is disclosed in writing on the order confirmation and packing documentation. New surplus units are original factory-packaged stock that has never been installed. Certified refurbished units have completed the full 5-step QA process described above. We do not mix condition grades within a single order without explicit buyer agreement.

Should I purchase more than one unit?
For any system where the EDS1791-N-016-000 is installed on a critical circuit — press, injection mold, crane, or centralized lubrication — maintaining a minimum of two units on-shelf is a standard risk management practice. Global stock of this part is finite and will not be replenished by the OEM. Current pricing reflects available inventory; future sourcing will be progressively more difficult and expensive.

Can you source other HYDAC EDS-series parts?
Yes. DriveKNMS specializes in obsolete and hard-to-find HYDAC components across the EDS, HDA, and DS series. Contact us with your full part number for a stock check.
