ICS Triplex TC-304 Series: Comprehensive Module Range and Technical Overview

The ICS Triplex TC-304 series is a fault-tolerant, triple-modular-redundancy (TMR) platform engineered for safety-critical continuous process industries. Deployed across petrochemical complexes, offshore oil & gas platforms, nuclear power generation facilities, and refinery control systems, the TC-304 architecture provides 2oo3 (two-out-of-three) voting logic at the hardware level, ensuring SIL 3 compliance under IEC 61508. Its installed base spans facilities in the North Sea, Middle East, and Southeast Asia, where unplanned downtime carries operational costs measured in millions per hour. The platform interfaces natively with DCS environments including Honeywell TDC 3000, Yokogawa CENTUM, and legacy HART field device networks. The TC-304 series remains one of the most widely maintained TMR safety systems in the global spare parts market, with active demand for both operational replacements and long-term maintenance stock.

The Evolution of TC-304 Architecture

ICS Triplex introduced the TC-300 platform family in the late 1980s as a dedicated TMR safety system, succeeding earlier relay-based emergency shutdown (ESD) architectures. The TC-304 sub-series represented a significant revision, introducing modular backplane design that allowed field replacement of individual I/O and processor cards without full system shutdown — a critical operational requirement for continuous-process plants with no scheduled maintenance windows.

Early TC-304 deployments used proprietary Triplex Bus communication between chassis, with data rates suited to the scan cycles of 1990s-era safety logic. As fieldbus standards matured, ICS Triplex introduced gateway modules enabling PROFIBUS DP and Modbus RTU integration, extending the platform's service life into the 2000s. The TC-304 series entered its end-of-active-production phase in the mid-2010s, with ICS Triplex (subsequently acquired by Rockwell Automation) transitioning customers toward the Trusted TMR platform. However, the installed base of TC-304 systems remains substantial, and the aftermarket for spare modules, maintenance cables, and diagnostic tools continues to be commercially active. Compatibility between TC-304 sub-variants requires careful verification: backplane revisions, firmware versions, and chassis generations are not universally interchangeable.

TC-304 Full Catalog & Functionalities (SKU List)

The following represents the core TC-304 series module range, organized by functional category. All models listed are genuine ICS Triplex part numbers with documented field deployment history.

Maintenance & Diagnostic Cables

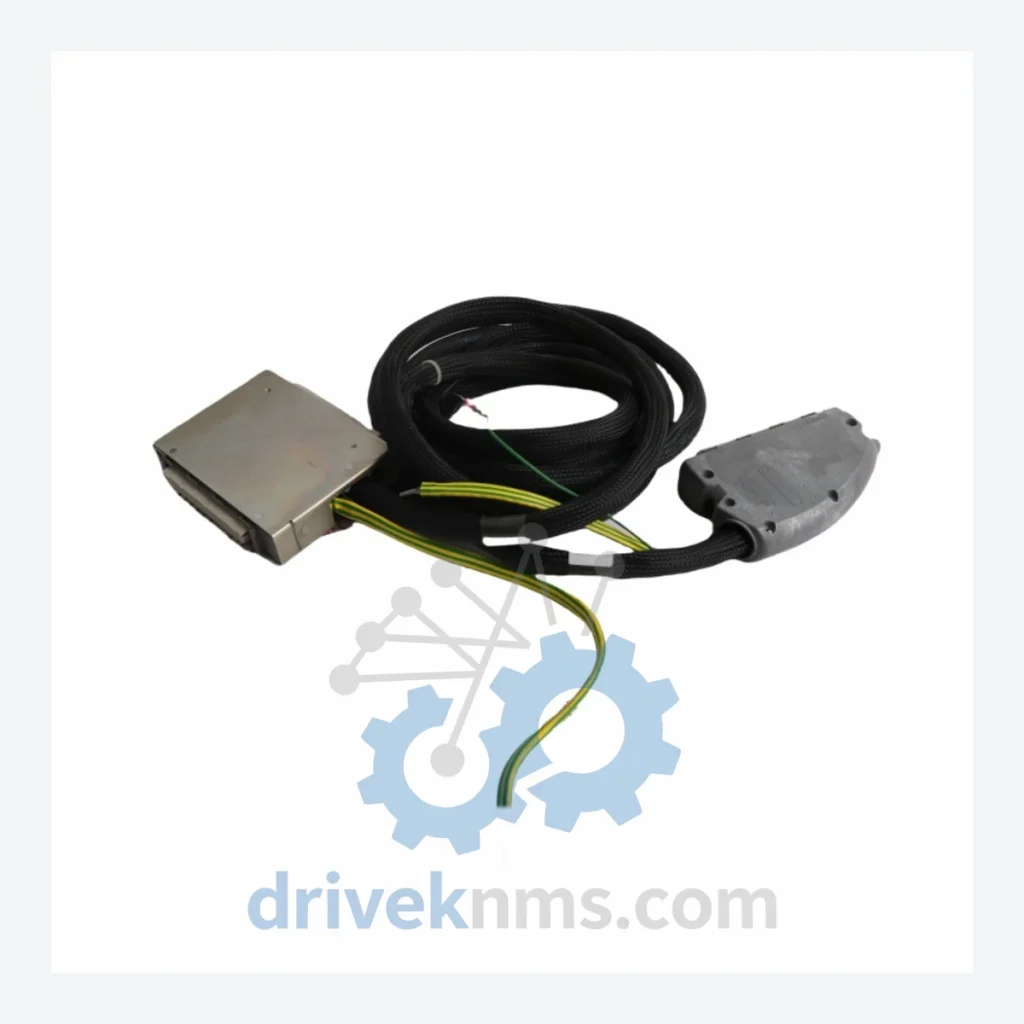

TC-304-01: Maintenance cable assembly for TC-304 chassis diagnostic port access and field programming interface.

Processor & Controller Modules

T8110: TMR main processor module; executes safety logic with triple-redundant CPU voting.
T8111: Enhanced processor module with extended memory for large-scale safety programs.
T8112: Processor module, revision B; improved cycle time and diagnostics over T8110.
T8115: Communication processor module; manages inter-chassis Triplex Bus data exchange.

Digital Input (DI) Modules

T8120: 24 VDC digital input module, 16-channel, TMR voting, field-side isolated.
T8121: 48 VDC digital input module, 16-channel, for legacy field device compatibility.
T8123: High-density digital input module, 32-channel, 24 VDC, TMR architecture.
T8124: Digital input module with HART pass-through capability for smart field devices.

Digital Output (DO) Modules

T8130: 24 VDC digital output module, 8-channel, solid-state relay, TMR voted output.
T8131: High-current digital output module, 8-channel, for solenoid valve and actuator drive.
T8133: Digital output module with output readback diagnostics for SIL 3 loop verification.

Analog Input (AI) Modules

T8150: 4–20 mA analog input module, 8-channel, TMR, for pressure and flow transmitters.
T8151: Thermocouple/RTD analog input module, 8-channel, for temperature measurement loops.
T8153: High-accuracy analog input module, 16-bit resolution, 8-channel, 4–20 mA.

Power Supply Modules

T8191: Maintenance cable; supports direct connection to TC-304 chassis for diagnostic and configuration tasks. (Current SKU on this listing.)
T8800: Redundant power supply module, 24 VDC input, for TC-304 main chassis.
T8801: Power supply module, 110/220 VAC input, with internal redundancy switching.

Communication & Gateway Modules

T8160: Modbus RTU gateway module; bridges TC-304 safety bus to DCS Modbus network.
T8161: PROFIBUS DP gateway module; enables integration with Siemens and ABB DCS platforms.

Sourcing Hard-to-Find & Obsolete TC-304 Parts

The TC-304 series has been in end-of-active-production status since the mid-2010s. OEM new-stock availability for most modules is exhausted through standard distribution channels. DriveKNMS maintains a dedicated inventory program for TC-304 lifecycle support, sourcing modules through certified industrial surplus channels, decommissioned plant asset recovery, and verified third-party refurbishment pipelines.

Quality Control for the TC-304 Range

TC-304 modules present specific quality verification challenges due to their TMR backplane architecture. A module that passes basic power-on self-test may still exhibit degraded voting logic performance that is only detectable under loaded backplane conditions. DriveKNMS applies the following verification steps to all TC-304 inventory:

Backplane bus integrity testing is performed using a reference TC-304 chassis to verify correct Triplex Bus communication handshake between the module under test and adjacent slots. Processor modules (T8110, T8111, T8112) are tested for full logic execution cycle completion and memory integrity. I/O modules are tested for channel-level accuracy: analog modules are verified against calibrated signal sources at 4 mA, 12 mA, and 20 mA reference points; digital modules are tested for correct switching thresholds and output readback. Power supply modules are load-tested at 80% rated capacity for a minimum burn-in period. Maintenance cables such as the TC-304-01 are tested for continuity, shielding integrity, and connector pin-out against OEM wiring diagrams. All tested units are labeled with test date, technician ID, and pass/fail result prior to packaging.
