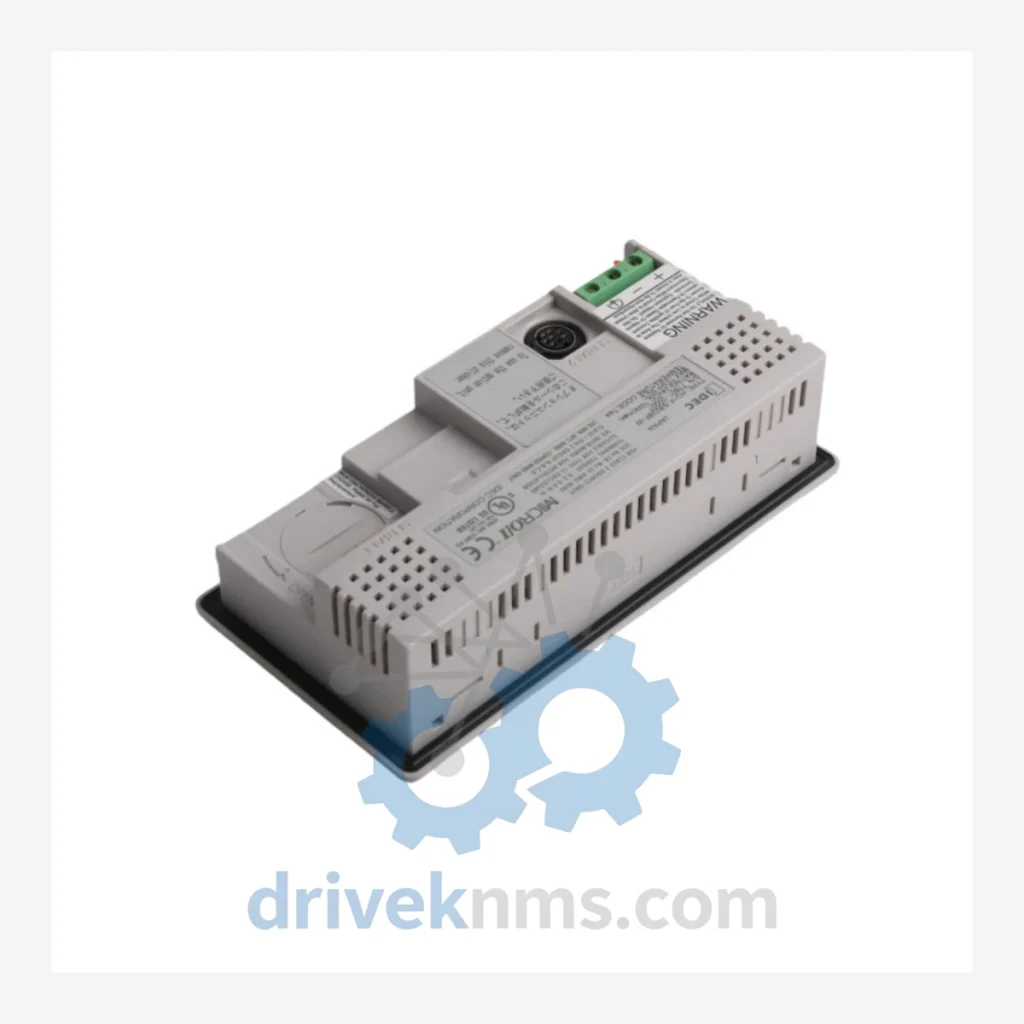

IDEC HG1F-SB22BF-W Display Module – Obsolete HG1F Series Spare Part

Technical Dossier

Product Details And Specifications

IDEC HG1F-SB22BF-W Display Module – Obsolete HG1F Series Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters such as supply voltage, display resolution, and communication protocol are not listed here to avoid inaccuracy. Please contact us with your system documentation for full compatibility verification before ordering.

Solving the Discontinued Hardware Crisis

The IDEC HG1F series was widely deployed across manufacturing facilities in Asia, Europe, and North America throughout the 1990s and early 2000s. These panels were integrated into machine tools, packaging lines, and process control stations where the operator interface was tightly coupled to the underlying PLC logic — often IDEC FC series or compatible third-party controllers. Because the HG1F-SB22BF-W display module communicates via a proprietary backplane connection, there is no modern off-the-shelf substitute that installs without engineering intervention.

For plant managers facing this situation, the calculus is straightforward: sourcing a verified spare part at a fraction of the cost of a system upgrade preserves capital, avoids production disruption, and extends the operational life of equipment that continues to perform its intended function. The argument for premature system retirement is rarely technical — it is almost always driven by parts unavailability. Resolving that availability problem is precisely what DriveKNMS exists to do.

Condition & Reliability Assurance

Every HG1F-SB22BF-W unit processed by DriveKNMS passes a structured five-stage quality protocol before it is offered for sale:

• Stage 1 – Visual and Mechanical Inspection: Full examination of housing integrity, connector pins, and panel mounting points. Units with physical damage that could affect field reliability are rejected at this stage.
• Stage 2 – Electrolytic Capacitor Assessment: Age-related capacitor degradation is the primary failure mode in display modules of this era. Each unit is evaluated for capacitor bulging, leakage, and ESR deviation. Suspect capacitors are replaced with rated equivalents before the unit proceeds.
• Stage 3 – Firmware and Configuration Verification: Where accessible, firmware version is recorded and cross-referenced against known stable releases for the HG1F series. Units with corrupted or unverifiable firmware states are flagged and handled separately.
• Stage 4 – Pin and Contact Integrity Check: Backplane connectors and I/O terminals are inspected under magnification for oxidation, corrosion, and mechanical deformation. Contact surfaces are cleaned and treated as required.
• Stage 5 – Functional Power-On Test: Units are powered and tested for display initialization and basic communication response prior to packaging.

Units that do not pass all five stages are not sold as functional spares. Condition grade is disclosed transparently at the time of quotation.

Key Features for System Maintenance

Should I buy more than one unit?
For any facility operating more than one HG1F panel, holding a minimum of two spare display modules is a defensible maintenance strategy. The HG1F-SB22BF-W is no longer manufactured, and secondary market availability will decrease over time. Procurement cost today is substantially lower than emergency sourcing cost in three to five years.

Can you source other IDEC HG1F series components?
Yes. DriveKNMS specializes in obsolete industrial components across multiple product families. Contact us with your full bill of materials for a consolidated sourcing assessment.
