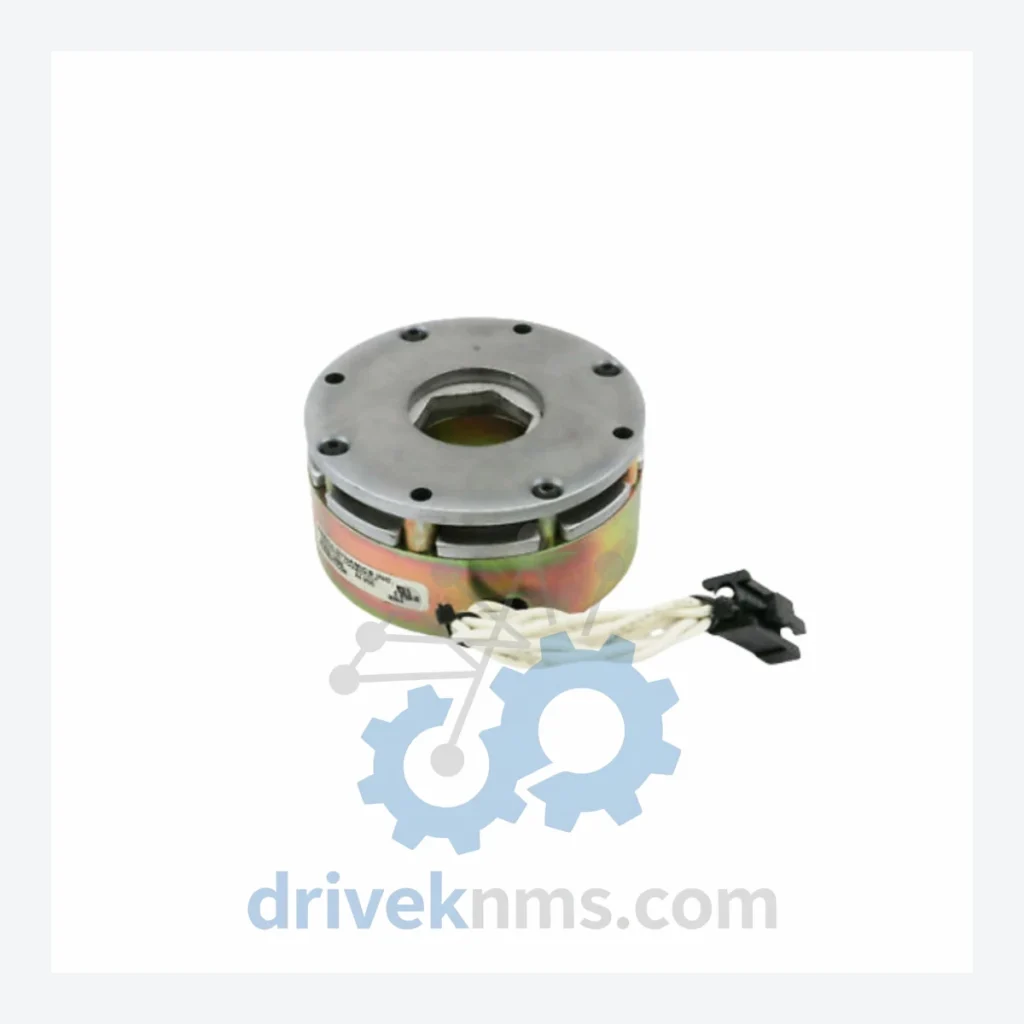

Inertia Dynamics M1819-0002 MQDB011AAD03 Electromagnetic Brake – Obsolete DDM Series Spare Part

Technical Dossier

Product Details And Specifications

Inertia Dynamics M1819-0002 MQDB011AAD03 Electromagnetic Brake – Obsolete DDM Series Spare Part

When a spring-applied electromagnetic brake fails on a production line, the clock starts immediately. For facilities still operating machinery built around Inertia Dynamics' DDM Series braking components, the M1819-0002 (cross-reference: MQDB011AAD03 / 9101-1999 / DDM-005X-DN-AM3) is not a commodity item — it is a load-bearing element of your machine's safety and motion control architecture. Sourcing a direct replacement on the open market has become progressively harder as Inertia Dynamics consolidated its product lines under Altra Industrial Motion. A single unplanned downtime event caused by this component can cost a mid-size facility tens of thousands of dollars per shift. A forced system-wide retrofit — new motor drives, new control panels, new commissioning — routinely runs into the hundreds of thousands. DriveKNMS maintains verified stock of this obsolete brake unit specifically to prevent that outcome.

Technical Specifications

Note: Electrical parameters (coil voltage, torque rating, bore size) vary by sub-configuration. Confirm your exact application requirements before ordering. DriveKNMS will cross-verify against your machine documentation upon inquiry.

Solving the Discontinued Hardware Crisis

The DDM Series spring-applied brake was widely deployed in servo-driven axes across CNC machining centers, automated assembly lines, and material handling systems throughout the 1990s and 2000s. Its fail-safe design — engaging mechanically upon power loss — made it a preferred choice for vertical axis and safety-critical applications. Many of these machines remain in productive service today, running on control architectures that were never designed to accommodate modern brake alternatives without significant re-engineering.

When Inertia Dynamics consolidated its catalog, the M1819-0002 was among the units phased out without a direct modern equivalent that offers identical mounting geometry and electrical interface. Facilities that did not build a strategic spare inventory at the time of discontinuation now face a binary choice: locate genuine old-stock units, or commit to a full axis retrofit. The retrofit path is rarely straightforward. It typically requires new motor selection, drive parameter reconfiguration, mechanical adapter fabrication, and safety re-certification — a process that can idle a critical machine for weeks and consume engineering resources that most maintenance departments cannot spare.

Extending the operational life of a machine by 5 to 10 years through targeted spare part procurement is, in most cases, the lowest-cost asset protection strategy available to plant management. A single M1819-0002 unit held in reserve eliminates the retrofit risk entirely for the duration of that machine's planned service life. For facilities operating multiple identical axes, a small buffer stock of two to three units represents a fraction of the cost of one unplanned downtime event.

Condition & Reliability Assurance

Obsolete brake components sourced from secondary markets carry real risks. DriveKNMS applies a structured 5-step inspection protocol to every DDM Series unit before it is offered for sale:

• Step 1 – Visual and Mechanical Inspection: Housing integrity check, armature plate flatness verification, and rotor surface condition assessment. Units with visible corrosion on friction surfaces or deformed spring housings are rejected.
• Step 2 – Coil Resistance Measurement: Coil winding resistance is measured and compared against documented OEM specifications. Open circuits, shorts, and out-of-tolerance readings result in immediate rejection.
• Step 3 – Electrolytic Capacitor Assessment (where applicable): For units with integrated suppression or control circuitry, capacitor condition is evaluated. Aged or bulging capacitors are flagged and replaced before the unit is cleared.
• Step 4 – Pin and Connector Integrity: All electrical connection points are inspected for oxidation, pin recession, and contact resistance. Corroded pins are cleaned or the connector assembly is replaced.
• Step 5 – Functional Engagement Test: The brake is energized and de-energized under controlled conditions to verify correct spring engagement, full armature travel, and release response. Units that fail to meet engagement/release timing criteria are not sold.

Units that pass all five stages are classified as Verified Serviceable Stock. Condition grade (New Old Stock, Refurbished, or Tested Used) is disclosed explicitly on every order confirmation.

Key Features for System Maintenance

• Drop-in replacement: The M1819-0002 retains the original DDM Series mounting pattern and electrical interface. No mechanical adapter plates, no wiring harness modifications, no drive parameter changes required.
• No reprogramming required: The brake operates as a passive fail-safe device. Replacing the unit does not trigger any PLC or drive reconfiguration requirement.
• Avoids engineering retrofit costs: A verified replacement unit eliminates the need to engage a systems integrator for axis redesign. Maintenance staff familiar with the existing machine can complete the swap using standard procedures.
• Protects production schedules: Having a unit in stock converts a potential multi-week downtime event into a planned maintenance window measured in hours.
• Supports long-term asset planning: For facilities with a defined machine retirement horizon of 5 to 10 years, stocking one or two spare units is a straightforward risk mitigation measure with a calculable ROI.

FAQ

What warranty applies to an obsolete spare part?
DriveKNMS provides a 90-day warranty against defects in the unit as supplied, covering coil failure and mechanical engagement faults under normal operating conditions. Warranty does not cover damage resulting from incorrect installation or application outside the unit's rated parameters.

How do I confirm this is a genuine unit and not a counterfeit?
All units supplied by DriveKNMS are sourced from documented industrial surplus channels. Upon request, we provide photographs of the physical unit, including label, date codes, and condition details, prior to shipment. We do not sell units we cannot physically verify.

Should I buy more than one unit?
For any machine where this brake is installed on a critical axis, holding at least one spare unit on-site is standard practice. If you operate multiple machines with the same brake, a buffer of two to three units is a reasonable minimum. The cost of a second unit is negligible relative to the cost of a second sourcing effort under emergency conditions.

Can you source additional quantity if I need more than you have in stock?
DriveKNMS maintains active sourcing channels for obsolete industrial components. If current stock does not meet your quantity requirement, contact us with your timeline and we will advise on availability and lead time.
