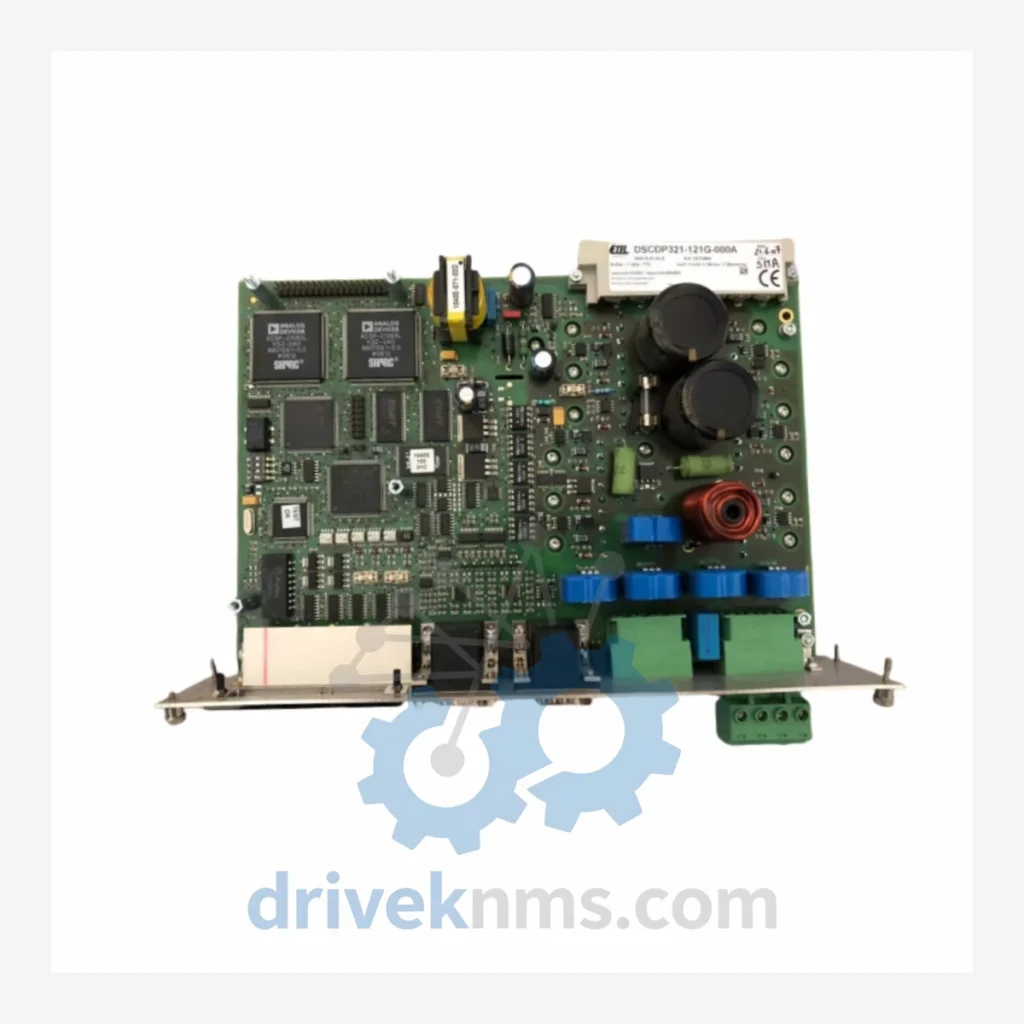

Ingeteam AK9499 Series Modules AS3179A7404001753 AK9499-J

Technical Dossier

Product Details And Specifications

Ingeteam AK9499 Series Technical Notes

The Evolution of AK9499 Architecture

The AK9499 architecture traces its lineage to Ingeteam's INGECON automation platforms developed in the late 1990s, which were designed for standalone CPU operation with proprietary backplane bus communication at 5 Mbps. The first-generation AK9499-A and AK9499-B modules (circa 1999–2003) used RS-232 and RS-485 serial interfaces and supported Modbus RTU as the primary fieldbus protocol. Program memory was limited to 256 KB, constraining application complexity in large-scale process loops.

The mid-generation expansion (2003–2010) introduced PROFIBUS-DP master/slave capability with the AK9499-K communication adapter, enabling integration with third-party SCADA platforms including Wonderware InTouch, Citect SCADA, and Siemens WinCC. The AK9499-C introduced an integrated 10/100 Mbps Ethernet port, supporting Modbus TCP and OPC DA server functionality. Rack bus bandwidth was upgraded to 12 Mbps in this generation. Compatibility constraints exist between pre-2003 backplanes and post-2005 high-density I/O modules; rack firmware version must be verified at or above v2.4 before module substitution to avoid bus arbitration conflicts.

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

AK9499 Full Catalog & Functionalities (SKU List)

Digital I/O Modules
AK9499-E: Digital input module, 32-channel, 24 VDC, IEC 61131-2 Type 1/3, sink/source configurable
AK9499-F: Digital output module, 32-channel, 24 VDC, 0.5 A per channel, short-circuit protected
AK9499-S: Relay output module, 16-channel, SPDT contacts, 2 A at 250 VAC, mechanical life 10M ops

Analog I/O Modules
AK9499-G: Analog input module, 16-channel, 4–20 mA / 0–10 V selectable, 12-bit resolution, ±0.1% accuracy
AK9499-H: Analog output module, 8-channel, 4–20 mA, 12-bit resolution, loop-powered
AK9499-R: RTD/thermocouple input module, 8-channel, PT100/PT1000/Type J/K, 0.1°C resolution
AK9499-P: High-speed counter module, 4-channel, 500 kHz max input frequency, quadrature encoder support

Communication Adapter Modules
AK9499-K: PROFIBUS-DP slave communication adapter, 12 Mbps, GSD file configurable
AK9499-L: DeviceNet communication module, scanner/adapter mode, 500 kbps, 64-node support

Power Supply Modules
AK9499-M: Power supply module, 85–264 VAC input, 24 VDC / 5 A rack bus output, >90% efficiency
AK9499-N: Redundant power supply module, load-sharing configuration, N+1 redundancy, hot-swap capable

Infrastructure / Backplane Modules
AK9499-T: Backplane bus extender module, rack-to-rack fiber optic link, up to 1 km distance, multimode fiber

Quality Control for the AK9499 Range

AK9499 modules incorporate a proprietary backplane bus protocol and multi-layer PCB construction that requires specialized test procedures beyond standard bench power-on verification. DriveKNMS applies the following QC protocol to all AK9499 units processed through its facility:
