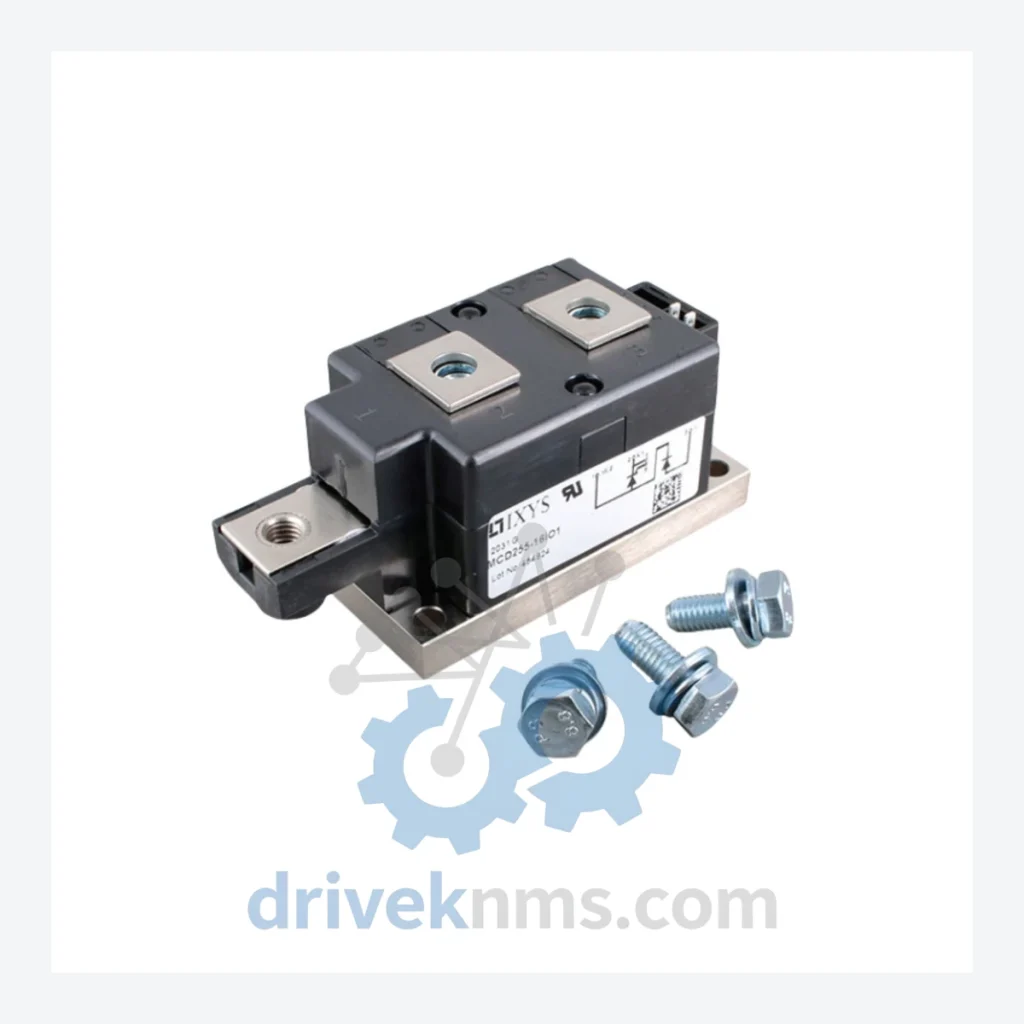

IXYX MCD255-16IO1 Thyristor Diode Module – Obsolete Power Semiconductor Spare Part

Technical Dossier

Product Details And Specifications

IXYX MCD255-16IO1 Thyristor Diode Module – Obsolete Power Semiconductor Spare Part

When the MCD255-16IO1 fails in a legacy DC drive or rectifier system, the consequences are not limited to a single module replacement. For plants still operating IXYX-based power conversion stacks — common in steel mills, paper lines, mining hoists, and heavy chemical processing — the failure of this thyristor/diode module can trigger a forced system-wide upgrade. Conservative estimates place the cost of migrating an aging DC drive system to a modern AC vector platform at USD 200,000 to over USD 1,000,000 per line, once engineering, rewiring, motor replacement, and production downtime are factored in. A single verified spare part, sourced before the failure occurs, eliminates that exposure entirely.

DriveKNMS maintains physical stock of hard-to-source power semiconductor modules including the MCD255-16IO1. Inventory is finite and not replenishable from the original manufacturer.

Technical Specifications

Note: Electrical parameters listed above are sourced from published IXYX/IXYS datasheets. No parameters have been estimated or extrapolated. Confirm compatibility against your specific system schematic before installation.

Solving the Discontinued Hardware Crisis

The MCD255-16IO1 occupies a specific position in the power stack of phase-controlled DC drive systems. In a six-pulse or twelve-pulse rectifier bridge, each thyristor and diode position is matched to a defined voltage class and current rating. Substituting a module of a different voltage class — even within the same physical footprint — introduces asymmetric blocking characteristics that can cause commutation failures, nuisance trips, or catastrophic bridge failure under load transients.

IXYX ceased production of this module series as part of a broader consolidation of the IXYS power module portfolio. Authorized distributors exhausted their buffer stock years ago. What remains in circulation exists only in the secondary market — and not all of it is reliable.

For plant engineers managing DC drive assets installed in the 1990s through early 2000s, the practical options are narrow: locate a verified spare, or begin the capital justification process for a full drive replacement. The former costs a fraction of the latter. The MCD255-16IO1 remains the correct, drop-in solution for systems designed around this module — no firmware changes, no control board modifications, no re-commissioning of the speed loop.

Extending the operational life of a proven DC drive system by five to ten years through strategic spare parts procurement is a defensible asset management decision. The engineering risk of a like-for-like module replacement is low. The financial risk of an unplanned line stoppage while sourcing a replacement is not.

Condition & Reliability Assurance

All MCD255-16IO1 units processed by DriveKNMS pass a five-stage inspection protocol before dispatch:

• Visual and mechanical inspection: Housing integrity, terminal condition, and base plate flatness are checked. Units with cracked housings, deformed terminals, or corroded copper bases are rejected.
• Pin and contact inspection: Gate, anode, and cathode terminals are examined under magnification for oxidation, pitting, and mechanical deformation. Contact resistance is verified.
• Electrolytic component assessment: Where applicable, internal passive components are evaluated for signs of electrolyte leakage or thermal stress damage — a common failure mode in modules stored in humid or thermally cycled environments.
• Blocking voltage verification: Off-state blocking capability is tested against the rated VRRM to confirm the thyristor junction has not degraded.
• Firmware and marking verification: Date codes, lot markings, and manufacturer identifiers are cross-referenced against known authentic IXYX production records to screen for counterfeit units.

Units that pass all five stages are classified as Grade A serviceable stock. Units with minor cosmetic issues but full electrical integrity are classified as Grade B and disclosed as such at point of sale.

Key Features for System Maintenance

• Drop-in replacement: The MCD255-16IO1 is a direct physical and electrical substitute for the original module position. No mechanical adaptation is required.
• No reprogramming required: Thyristor modules are passive power devices. Replacement does not affect drive firmware, parameter sets, or control loop tuning.
• No engineering redesign: Unlike a drive platform migration, a module-level replacement preserves the existing control architecture, field wiring, and operator interface — eliminating the engineering hours associated with system re-engineering.
• Immediate operational restoration: A verified spare on the shelf converts an unplanned multi-week outage into a planned maintenance window measured in hours.
• Long-term asset protection: Holding two to three spare modules per drive system is a low-cost insurance policy against supply chain disruption. The cost of three spare modules is typically less than four hours of unplanned production downtime.

FAQ

What warranty applies to obsolete parts?
DriveKNMS provides a 90-day warranty against electrical failure under normal operating conditions for all Grade A units. Grade B units carry a 30-day warranty. Warranty claims require return of the failed unit for inspection.

How do I confirm the unit is genuine and not counterfeit?
Each unit is inspected against known IXYX production markings and date code formats. We provide inspection documentation upon request. We do not sell units that fail our authenticity screening.

Are these new or refurbished?
Stock condition varies. We clearly disclose whether a unit is new old stock (NOS), tested surplus, or professionally refurbished at point of quotation. We do not represent refurbished units as new.

Can I order multiple units for long-term storage?
Yes. For customers managing multiple drive systems or planning a multi-year maintenance program, we recommend securing a minimum of two units per critical drive position. Contact us to discuss volume availability and storage recommendations.

What if my system uses a slightly different module variant?
Contact us with your full system model and existing module markings. We can advise on cross-reference compatibility and identify alternative modules where a direct replacement is not available.
