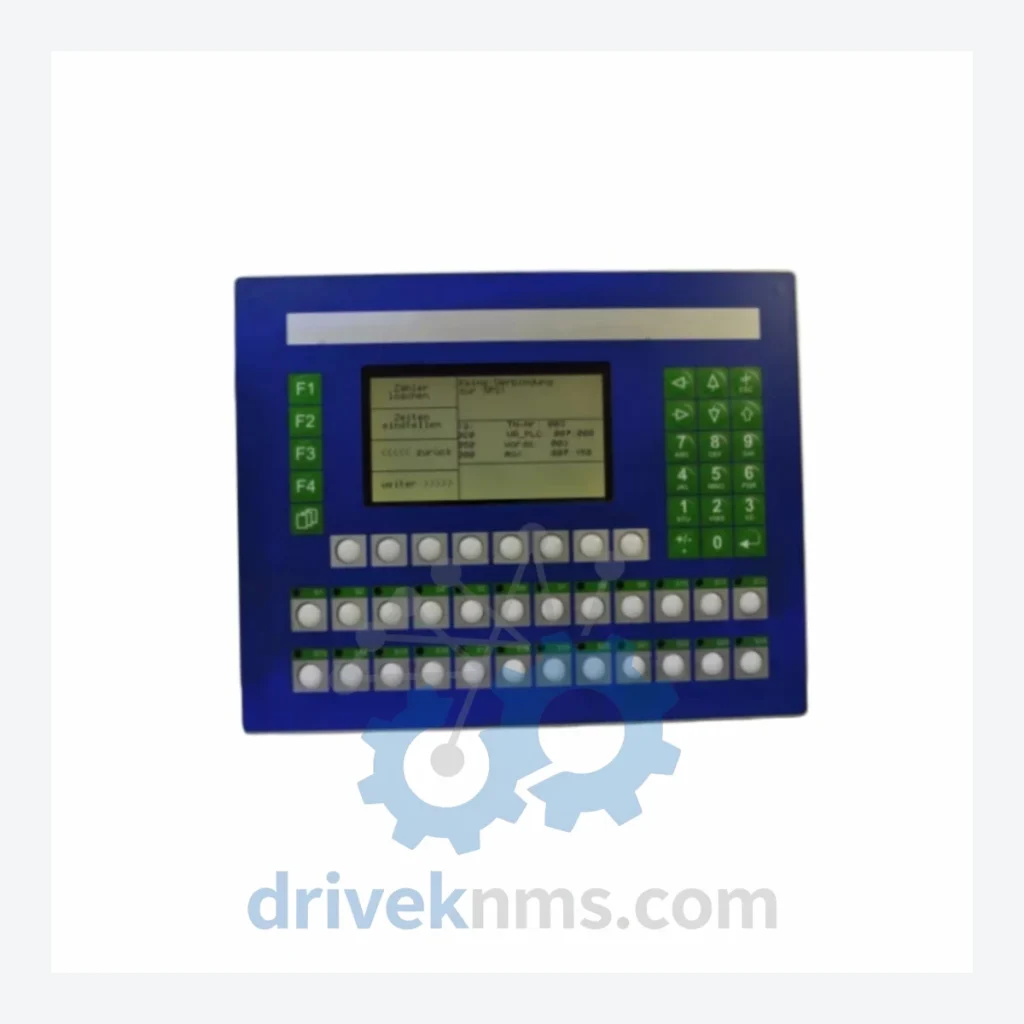

Jetter BT20-24-Z-CFL HMI Display – Obsolete Jetter Series Spare Part

Technical Dossier

Product Details And Specifications

Jetter BT20-24-Z-CFL HMI Display – Obsolete Jetter Series Spare Part

When a Jetter BT20-24-Z-CFL HMI display fails on the production floor, the consequences extend far beyond a single panel replacement. This unit is a core operator interface in Jetter-based control architectures — systems that, in many facilities, have been running reliably for over a decade. Replacing the entire control platform to accommodate a modern HMI is not a maintenance decision; it is a capital project. Engineering assessments, new PLC programming, panel redesign, operator retraining, and production downtime during cutover routinely push such upgrades past the USD $500,000 threshold — and that figure does not account for lost output during transition. A single verified spare BT20-24-Z-CFL eliminates that exposure entirely. DriveKNMS holds physical stock of this discontinued unit. This is not a broker listing or a lead-time estimate. Inventory is finite and allocated on a first-confirmed basis.

Technical Specifications

Note: Electrical parameters beyond those listed above are not published here to avoid inaccuracy. Verified datasheets are available upon request.

Solving the Discontinued Hardware Crisis

The Jetter BT20-24-Z-CFL belongs to a generation of industrial HMI hardware that was engineered for deterministic, long-cycle industrial environments — not the rapid product refresh cycles of consumer electronics. Facilities that integrated Jetter control systems in the 2000s and early 2010s built their processes around the specific communication protocols, screen layouts, and operator workflows tied to this hardware. Swapping to a modern panel is not plug-and-play. It requires re-mapping I/O, rewriting HMI project files, and in many cases, updating the underlying PLC firmware — a chain of changes that introduces new failure modes into a previously stable system.

The practical strategy adopted by maintenance engineers who understand this risk is straightforward: source and hold verified spare units while they are still obtainable. A single BT20-24-Z-CFL on the shelf converts an unplanned multi-week shutdown into a two-hour swap. For plant managers facing pressure to defer capital expenditure, this approach delivers a measurable return: the cost of one spare unit versus the cost of one day of unplanned downtime is not a close comparison.

Extending the service life of a Jetter-based line by five to ten years through strategic spare parts management is a defensible, low-risk maintenance posture. It preserves institutional knowledge embedded in the existing control logic, avoids the project risk of a full platform migration, and keeps the maintenance burden within the competency of the existing engineering team. The BT20-24-Z-CFL is a critical node in that strategy.

Condition & Reliability Assurance

Discontinued hardware sourced from secondary markets carries inherent risk. DriveKNMS applies a five-step inspection protocol to every BT20-24-Z-CFL unit before it is offered for sale:

• Step 1 – Visual and Mechanical Inspection: Housing integrity, connector condition, and pin corrosion assessment. Units with oxidized or bent pins are rejected at this stage.
• Step 2 – Electrolytic Capacitor Assessment: CFL-backlit displays of this era are particularly susceptible to capacitor aging. Each unit is inspected for bulging, leakage, or ESR deviation on the power supply board.
• Step 3 – Backlight Verification: CFL tube output is tested for uniform illumination and absence of flicker. Dimming or cold-start failure results in unit rejection or documented disclosure.
• Step 4 – Firmware Version Verification: Where accessible, firmware revision is recorded and disclosed to the buyer prior to shipment. Compatibility with the target system is the buyer's responsibility to confirm, but we provide the data to make that assessment possible.
• Step 5 – Functional Power-On Test: Units are powered at rated 24 V DC and observed for display initialization, absence of error codes, and stable operation over a defined soak period.

Units that pass all five stages are classified as Tested Surplus. Units with documented minor cosmetic defects but full functional integrity are classified as Refurbished – Functionally Verified and priced accordingly. Classification is disclosed on every invoice.

Key Features for System Maintenance

• Drop-in Replacement: The BT20-24-Z-CFL is a direct hardware replacement for the same part number. No panel cutout modification, no new mounting hardware, no wiring changes.
• No Reprogramming Required: HMI project files resident on the connected PLC or memory card are not affected by a panel swap. Operator screens, alarm pages, and recipe data remain intact.
• Avoids Engineering Reconstruction Costs: A platform migration project to replace a Jetter HMI with a current-generation panel from another manufacturer involves HMI software licensing, project conversion, and commissioning time. A like-for-like spare eliminates all of that cost.
• Maintains System Certification Integrity: In regulated industries, replacing a certified control component with a different model may trigger re-validation requirements. A same-part-number replacement does not.
• Supports Long-Term Spare Parts Strategy: Facilities managing aging Jetter installations should consider holding a minimum of two BT20-24-Z-CFL units given the scarcity of remaining stock globally. The cost of a second unit is negligible relative to the downtime risk it mitigates.

FAQ

Q: What warranty applies to a discontinued part?
A: DriveKNMS provides a 90-day functional warranty on all Tested Surplus units and a 30-day warranty on Refurbished – Functionally Verified units. Warranty covers failure under normal operating conditions and excludes physical damage after delivery.

Q: How do I know the unit is genuine and not counterfeit?
A: All units are sourced from decommissioned OEM installations or authorized surplus channels. Inspection records and, where available, original packaging documentation are retained. We do not source from unverified brokers.

Q: Can you supply multiple units?
A: Available quantity is disclosed at time of inquiry. We recommend confirming your requirement promptly — stock of obsolete Jetter HMI panels is not replenishable once depleted.

Q: Should we hold long-term stock of this part?
A: For any facility running more than two Jetter BT20-24-Z-CFL panels, holding at least one cold spare is standard risk management practice. For critical lines with no redundancy, two spares is the defensible minimum. The alternative — sourcing under emergency conditions — typically involves premium pricing, extended lead times, and unverified condition.

Q: Do you provide documentation with the unit?
A: Inspection reports and firmware version records (where applicable) are included with every shipment. Datasheet copies can be provided upon request where publicly available documentation exists.
