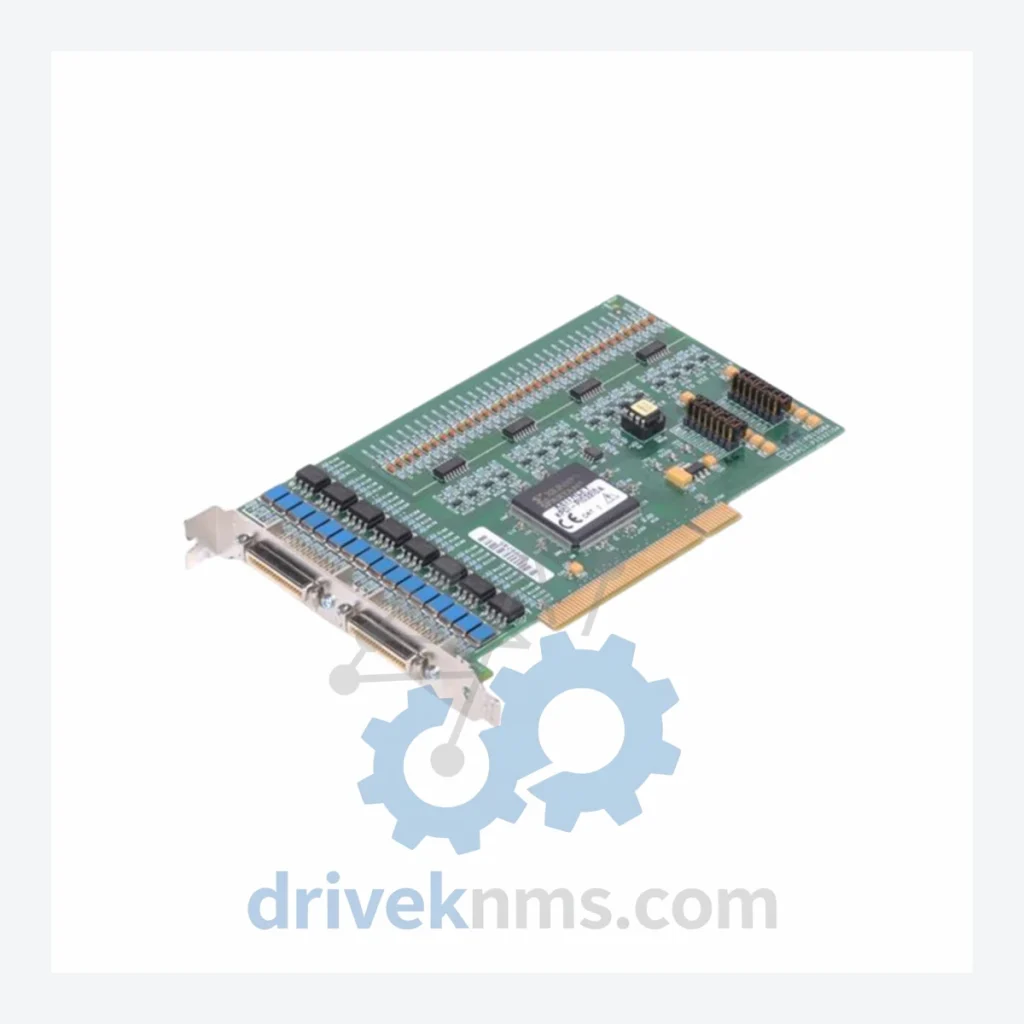

Keithley KPCI-PIO32IOA Interface Card – Obsolete PCI Digital I/O Spare Part

When a Keithley KPCI-PIO32IOA fails in a production test environment, the consequences extend far beyond a single card replacement. Legacy PCI-bus data acquisition systems built around Keithley's KPCI series are deeply embedded in automated test and measurement lines across semiconductor, aerospace, and industrial manufacturing facilities. Replacing the entire system — including software re-qualification, rack redesign, and operator retraining — routinely costs hundreds of thousands of dollars and months of downtime. A single verified spare card, sourced now, eliminates that risk entirely. DriveKNMS maintains limited stock of the KPCI-PIO32IOA for exactly this scenario.

Technical Specifications

Note: Electrical parameters not listed here are not confirmed from verified datasheets. DriveKNMS does not publish unverified specifications. Contact us for datasheet documentation.

Solving the Discontinued Hardware Crisis

The KPCI-PIO32IOA belongs to Keithley's legacy KPCI data acquisition family — a line of PCI-bus cards that powered automated test stations throughout the 2000s and early 2010s. These cards interfaced directly with Keithley's DriverLINX and KPCI driver stacks, which are tightly coupled to specific Windows OS versions and application software. There is no modern drop-in equivalent that preserves this software stack without a full system re-architecture.

For plant managers and test engineering teams operating these stations, the calculus is straightforward: the cost of sourcing a verified spare KPCI-PIO32IOA is a fraction of the cost of a forced system migration. A migration project of this type — covering hardware, software re-qualification, validation testing, and production downtime — typically runs into six figures. The card itself is the lowest-cost insurance policy available.

Facilities that have standardized on Keithley KPCI-based test stations should treat every operational card as a depreciating asset with a finite failure probability. Proactive spare procurement, rather than reactive emergency sourcing, is the only strategy that avoids unplanned production halts.

How to Extend Your Automated Test Asset Life by 5–10 Years

The KPCI-PIO32IOA is a PCI-bus card operating in a controlled rack environment. With proper maintenance discipline, the surrounding system can remain operational well beyond its nominal design life. The following practices are used by facilities that have successfully extended legacy Keithley test station life by a decade or more:

• Spare card inventory: Maintain a minimum of one verified spare KPCI-PIO32IOA per test station cluster. Card-level failures are the most common single point of failure in these systems.
• OS environment preservation: Keep the host workstation OS image archived and isolated from network updates. Driver compatibility is the binding constraint — a forced OS upgrade will break the DriverLINX stack.
• Connector and backplane inspection: PCI slot contacts and I/O connector pins should be inspected annually for oxidation, particularly in humid or industrial environments. Contact degradation is a leading cause of intermittent I/O faults that are misdiagnosed as card failure.
• Thermal management: Ensure chassis airflow is maintained. PCI cards in poorly ventilated racks experience accelerated electrolytic capacitor aging, which shortens card life significantly.
• Documented configuration baseline: Maintain a written record of IRQ assignments, DMA settings, and channel mapping. This documentation is critical for rapid card swap without re-commissioning delays.

These measures, applied consistently, protect the capital investment in the test station and defer the cost of system replacement by years.

Condition & Reliability Assurance

DriveKNMS applies a 5-step inspection protocol to all discontinued interface cards before shipment:

1. Visual and mechanical inspection: PCB surface, component seating, and PCI edge connector examined for physical damage, corrosion, and pin deformation.
2. Electrolytic capacitor assessment: Capacitors inspected for bulging, leakage, and ESR degradation — the primary aging failure mode in cards of this vintage.
3. Pin and connector integrity check: All I/O connector pins checked for oxidation, bending, and contact resistance. Corroded contacts are cleaned or the unit is rejected.
4. Firmware and label verification: Board revision markings and any firmware identifiers are recorded and cross-referenced against known production revisions.
5. Functional continuity test: Where test fixtures are available, basic electrical continuity across I/O channels is verified prior to packaging.

Units that do not pass all five stages are not offered for sale. Condition is disclosed accurately — new old stock (NOS), tested surplus, or refurbished — at the time of quotation.

Key Features for System Maintenance

• Drop-in replacement: The KPCI-PIO32IOA installs directly into the existing PCI slot with no hardware modification to the host system.
• No reprogramming required: Existing DriverLINX or KPCI driver configurations remain valid. Channel mapping and application software do not require reconfiguration after card swap.
• Avoids engineering re-architecture: Sourcing a verified spare eliminates the need to engage a systems integrator for a platform migration project.
• Preserves validation status: In regulated industries (aerospace, medical device testing), replacing a like-for-like card avoids triggering a full re-validation cycle that a system change would require.

FAQ

What warranty applies to a discontinued card?
DriveKNMS provides a 90-day warranty against defects in materials and workmanship on all tested surplus and refurbished units. New old stock units are sold as-is with inspection documentation. Warranty terms are confirmed in writing at the time of order.

How do I know the card is genuine and not counterfeit?
All units are sourced from documented industrial surplus channels. Board markings, revision labels, and component profiles are cross-checked against known authentic units. We do not source from unverified secondary markets. Inspection photos are available on request.

Should I buy more than one unit?
For any system where the KPCI-PIO32IOA is a single point of failure, holding at least one cold spare is the minimum prudent position. For multi-station facilities, a ratio of one spare per three to five operational cards is a reasonable starting point. Stock of discontinued parts is finite and does not replenish — availability today does not guarantee availability at the time of next failure.

Can you source other Keithley KPCI series cards?
Yes. Contact us with your specific part number. DriveKNMS maintains sourcing relationships for the broader KPCI family and related legacy Keithley data acquisition hardware.
