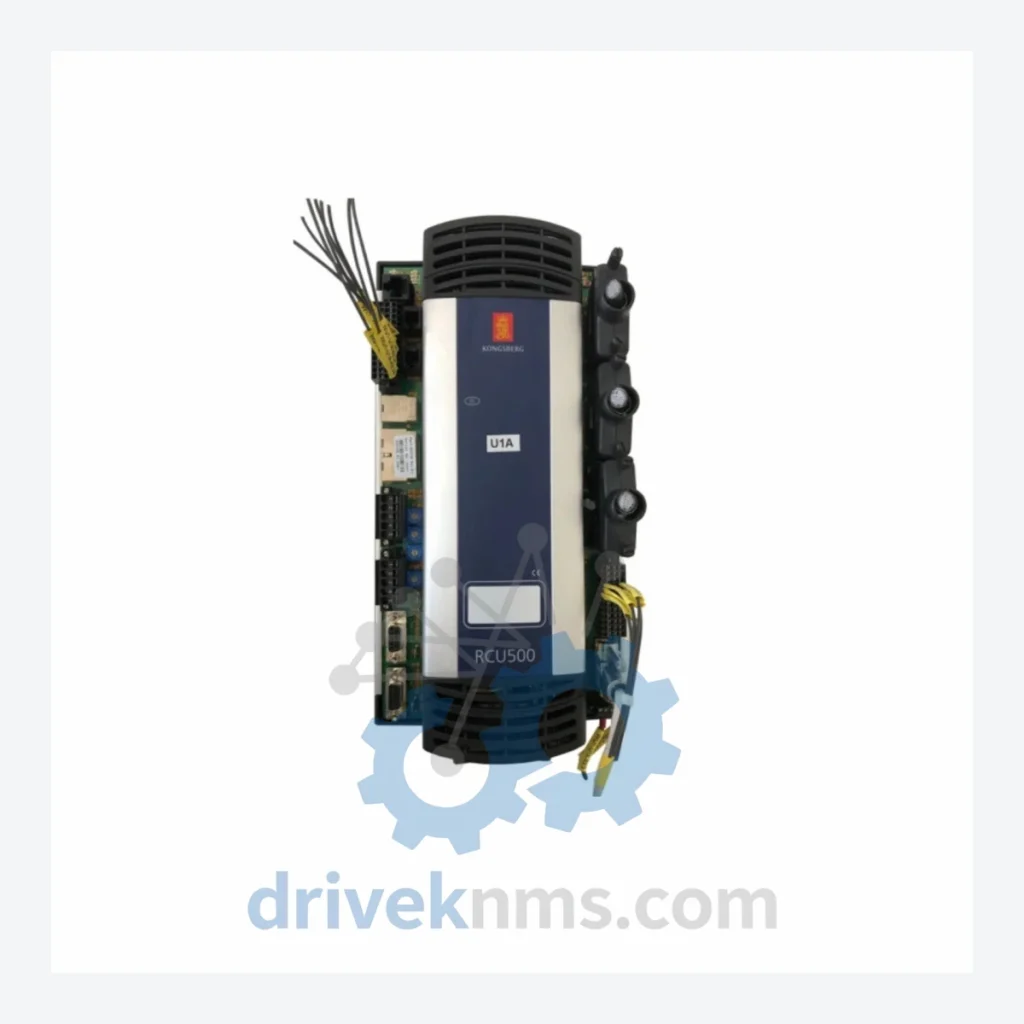

KONGSBERG RCU500 Modules - RCU500 603108

Technical Dossier

Product Details And Specifications

KONGSBERG RCU500 Series Technical Notes

The RCU500 architecture is characterized by modular backplane construction, deterministic real-time processing, and compatibility with legacy KONGSBERG K-Chief and SDP (Ship Dynamic Positioning) control frameworks. Installations of this series remain active across hundreds of vessels and fixed platforms worldwide, many of which face the compounding challenge of sourcing replacement modules as the series enters its end-of-life phase. RCU500 603108 is one of the core controller units within this platform — a module whose failure can render an entire control node inoperable.

The Evolution of RCU500 Architecture

The RCU500 series emerged from KONGSBERG's broader Remote Control Unit (RCU) lineage, which traces back to the RCU200 and RCU300 platforms used in 1980s–1990s marine automation. The RCU500 introduced a 32-bit processing backbone, expanded I/O density, and improved fieldbus communication — primarily supporting KONGSBERG's proprietary K-Bus protocol alongside RS-422 and RS-485 serial interfaces.

Early RCU500 deployments (circa 1995–2005) relied on EPROM-based firmware with manual version management. Later revisions introduced flash-upgradeable firmware and improved EMI shielding for harsh offshore environments. The series was progressively integrated into KONGSBERG's K-Chief 500 and K-Chief 600 vessel management systems, creating deep interdependencies that make module-level replacement — rather than full system migration — the only cost-viable maintenance path for most operators.

As KONGSBERG has transitioned its product roadmap toward the K-Chief 700 and cloud-integrated K-IMS platforms, the RCU500 series has entered a formal end-of-life trajectory. Spare parts are no longer manufactured to order. Operators maintaining RCU500-based systems must now source from secondary market specialists or face the capital expenditure of full system replacement — typically ranging from USD 500,000 to USD 3,000,000 per vessel or platform node.

RCU500 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the KONGSBERG RCU500 ecosystem, categorized by functional role. Each entry reflects the module's primary operational function within the RCU500 backplane architecture.

Controller & CPU Modules

• RCU500 603108: Core controller unit; primary processing node for RCU500 remote control stations
• RCU500 603100: Base CPU module; handles real-time task scheduling and K-Bus arbitration
• RCU500 603101: Enhanced CPU variant with expanded RAM buffer for high-I/O configurations
• RCU500 603102: Redundant controller module; hot-standby failover for safety-critical nodes

Digital Input (DI) Modules

• RCU500 603110: 16-channel DI module; 24VDC logic-level discrete input acquisition
• RCU500 603111: 32-channel DI module; high-density input for alarm and status monitoring
• RCU500 603112: Isolated DI module; galvanic isolation for high-voltage field signal environments

Digital Output (DO) Modules

• RCU500 603120: 16-channel DO module; relay output for actuator and valve control
• RCU500 603121: 32-channel DO module; transistor output for high-speed switching applications

Analog Input (AI) Modules

• RCU500 603130: 8-channel AI module; 4–20mA current loop signal acquisition
• RCU500 603131: 16-channel AI module; supports PT100 RTD and thermocouple inputs
• RCU500 603132: High-resolution AI module; 16-bit ADC for precision measurement applications

Communication & Fieldbus Adapters

• RCU500 603140: K-Bus communication adapter; primary backplane bus interface module
• RCU500 603141: RS-422/RS-485 serial communication module; legacy device integration
• RCU500 603142: Ethernet gateway module; bridges RCU500 nodes to modern TCP/IP supervisory networks

Power Supply Modules

• RCU500 603150: 24VDC power supply module; primary rail for backplane and I/O modules
• RCU500 603151: Redundant power supply module; dual-feed configuration for uninterrupted operation

Note: All SKUs listed above are based on documented RCU500 platform architecture. Availability varies. Contact DriveKNMS to confirm current sourcing status for any specific model number.

Sourcing Hard-to-Find & Obsolete RCU500 Parts

DriveKNMS maintains an active sourcing network across decommissioned vessel inventories, authorized refurbishment partners, and global industrial surplus channels. Our procurement team cross-references serial number ranges and firmware revision histories to ensure that sourced RCU500 modules are compatible with the target system's backplane revision and software version.

Quality Control for the RCU500 Range

RCU500 modules sourced from secondary markets carry inherent risks: electrolytic capacitor degradation, firmware version mismatches, backplane connector wear, and corrosion from marine environment exposure. DriveKNMS applies a structured inspection protocol specifically adapted to the RCU500's known failure modes:
