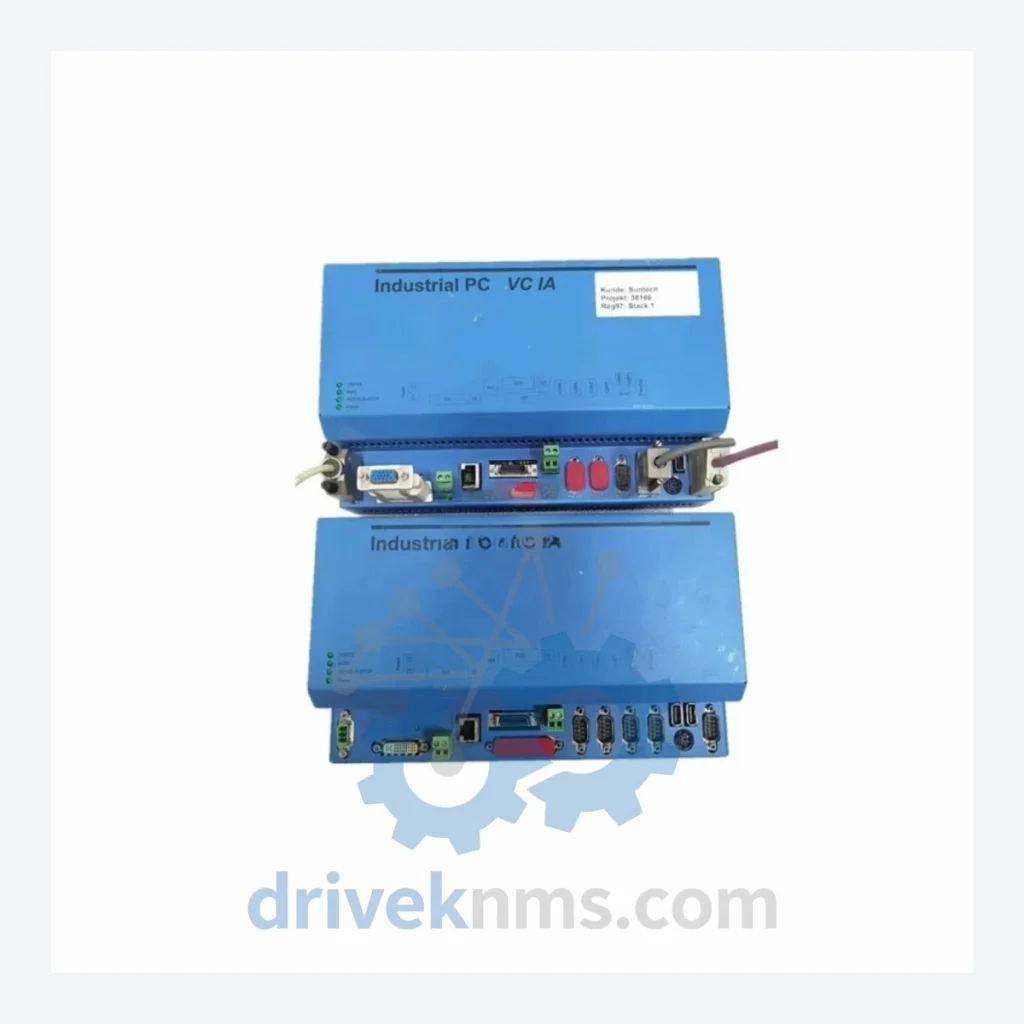

Kontron VC1A Modules VC1A-REG97

Technical Dossier

Product Details And Specifications

Kontron VC1A Series Technical Notes

The Evolution of VC1A Architecture

The VC1A architecture is rooted in the VME (Versa Module Europa) bus standard, IEEE 1014-1987, which defined the electrical and mechanical interface for modular industrial computing from the mid-1980s onward. Kontron's VC1A implementation extended the base VMEbus specification with proprietary backplane enhancements targeting real-time determinism for process I/O scanning cycles below 10 ms. Early VC1A variants operated on single-width 6U VME form factors with passive backplanes; subsequent revisions introduced active backplane management, redundant power arbitration, and enhanced EMI shielding to comply with EN 61000-4 immunity levels required in heavy industrial environments.

The REG97 sub-designation within the VC1A family identifies a register-level control accessory module, typically interfacing between the CPU carrier and peripheral I/O racks via a defined register map. As the VC1A platform matured through the 1990s and 2000s, Kontron introduced incremental silicon revisions to address field-reported issues with bus arbitration under high-interrupt-load conditions. Compatibility between early and late VC1A revisions is generally maintained at the backplane connector level, though firmware dependencies between CPU modules and register accessories such as the VC1A-REG97 must be validated against the applicable Kontron compatibility matrix prior to substitution. The VC1A series has entered the mature/end-of-life phase of its product lifecycle; Kontron has transitioned new design wins to the VX3000 and COMExpress-based platforms. Long-term maintenance support for installed VC1A systems is now primarily served by specialist distributors and MRO suppliers rather than OEM channels.

VC1A Full Catalog & Functionalities (SKU List)

The following SKUs represent verified members of the Kontron VC1A platform and associated VMEbus control accessories. Each entry reflects a distinct functional role within the system architecture.

VC1A-REG97: VMEbus register-level control accessory module for VC1A CPU carrier interfacing.
VC1A-CPU01: Single-board CPU module, VME 6U, primary process controller for VC1A rack.
VC1A-CPU02: Dual-redundant CPU module variant with hot-standby failover support.
VC1A-DIO16: 16-channel digital I/O module, configurable input/output per channel pair.
VC1A-DIO32: 32-channel digital I/O expansion module for high-density discrete signal termination.
VC1A-AIO08: 8-channel analog I/O module, 4–20 mA / 0–10 V configurable per channel.
VC1A-AIO16: 16-channel analog input module, 16-bit resolution, HART protocol pass-through capable.
VC1A-COM01: Serial communications adapter, RS-232/RS-485 dual-port, Modbus RTU master/slave.
VC1A-COM02: Ethernet communications module, 10/100BASE-T, Modbus TCP and EtherNet/IP support.
VC1A-PSU01: Primary power supply module, 24 VDC input, VMEbus P1/P2 rail regulation.
VC1A-PSU02: Redundant power supply module for N+1 power architecture in critical rack configurations.
VC1A-BPL06: 6-slot passive VME backplane, J1/J2 connectors, DIN 41612 compliant.
VC1A-BPL12: 12-slot passive VME backplane for expanded I/O rack configurations.
VC1A-MEM01: Shared memory module, VMEbus A32/D32 addressing, battery-backed SRAM.
VC1A-INT01: VMEbus interrupt controller module, 7-level priority interrupt management.
VC1A-TIM01: Real-time clock and timer module, GPS-synchronizable, microsecond resolution.
VC1A-FBR01: Fiber-optic repeater module for rack-to-rack communication in electrically noisy environments.
VC1A-WDT01: Hardware watchdog timer module, independent of CPU, configurable timeout 1–255 s.

Quality Control for the VC1A Range

VMEbus modules such as the VC1A series present specific test challenges due to their reliance on passive backplane bus arbitration, multi-master DMA transactions, and battery-backed memory subsystems. DriveKNMS applies a structured test protocol to all VC1A modules prior to shipment.

Each module undergoes visual inspection under 10× magnification for PCB delamination, capacitor bulge, solder joint fatigue, and connector pin deformation. Functional testing is performed on a live VMEbus test rack configured to replicate the target system's slot addressing and interrupt topology. CPU modules are exercised through a full boot sequence including POST, memory self-test, and I/O scan cycle verification. Register accessory modules such as the VC1A-REG97 are tested against their defined register map using automated read/write verification scripts. Analog I/O modules are calibrated against NIST-traceable reference standards with calibration certificates issued on request. Battery-backed SRAM modules are tested for data retention across a simulated power-loss cycle. All modules are burned in at operating temperature for a minimum of 24 hours before final inspection and packaging.
