Krauss Maffei IO 502/5088020 PC Board – Obsolete MC5 / MC6 Spare Part

Technical Dossier

Product Details And Specifications

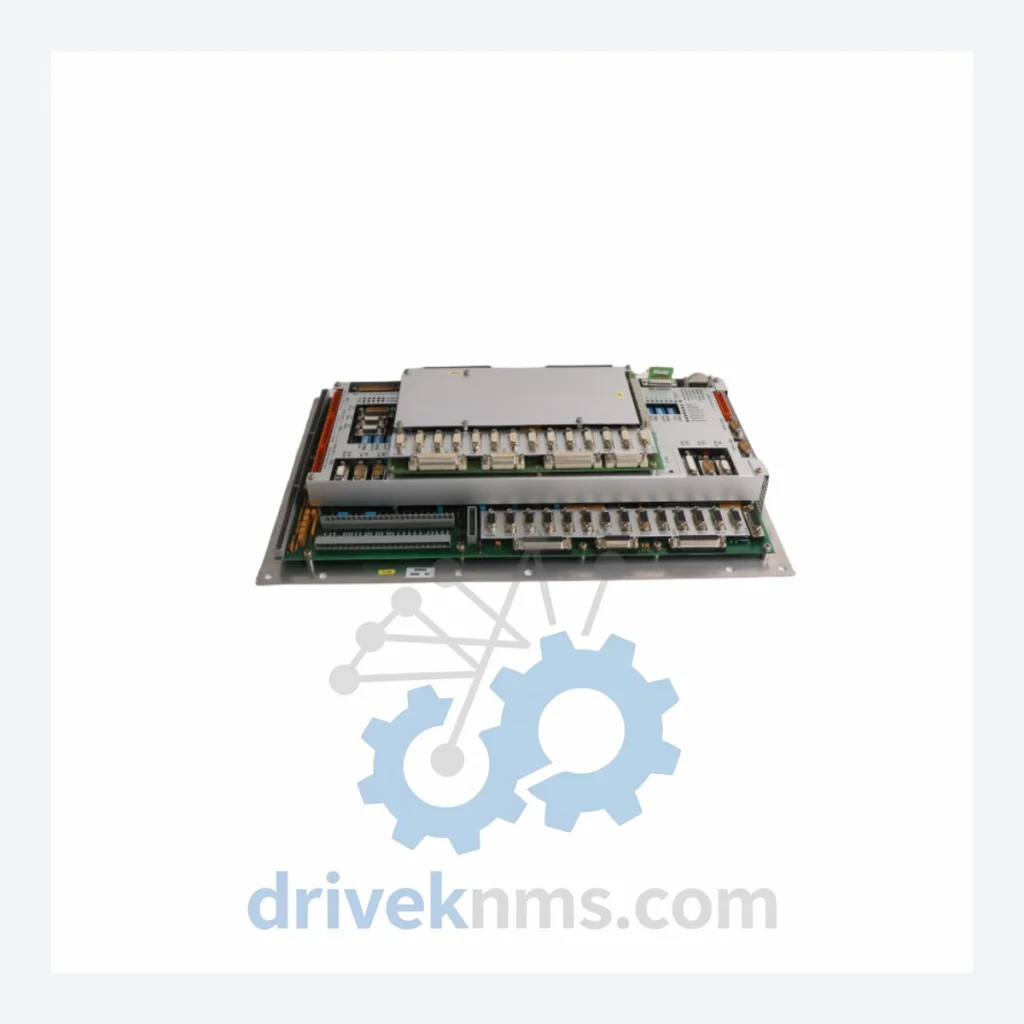

Krauss Maffei IO 502/5088020 PC Board – Obsolete MC5/MC6 Spare Part

The Krauss Maffei IO 502/5088020 is a printed circuit board (PC Board) used in Krauss Maffei injection molding machine control systems, primarily associated with the MC5 and MC6 control generations. When this board fails, the machine halts. There is no partial workaround: the I/O communication path between the control unit and the machine's peripheral actuators is severed.

Replacing an MC5 or MC6 control system with a current-generation platform requires not only new hardware but full re-engineering of the machine's control logic, HMI interfaces, and safety interlocks. Conservative estimates for a full control system retrofit on a large injection molding machine range from USD 80,000 to USD 250,000, excluding production downtime. A single verified spare board at a fraction of that cost is not a purchasing decision — it is a risk management decision.

DriveKNMS maintains sourced inventory of the IO 502/5088020 for facilities that operate legacy Krauss Maffei equipment and require immediate or planned maintenance support.

Technical Specifications

Note: Electrical parameters (voltage rails, bus timing, connector pinout) are board-specific and vary by machine configuration. DriveKNMS does not publish unverified specifications. Contact us with your machine serial number for compatibility confirmation.

Solving the Discontinued Hardware Crisis

Krauss Maffei's MC5 and MC6 control platforms were deployed extensively across European and Asian injection molding facilities from the 1990s through the mid-2000s. These machines — particularly large-tonnage models used in automotive, aerospace, and consumer goods manufacturing — were engineered for 20–30 year operational lifespans. The control hardware, however, was not designed with that same longevity in mind.

The IO 502/5088020 board sits at the intersection of the control CPU and the machine's physical I/O layer. It handles signal conditioning and routing for sensors, actuators, and safety circuits. A failure in this board does not produce a degraded operating mode — it produces a complete machine stop.

Facilities facing this failure have three options: source the original board, retrofit the control system, or decommission the machine. For machines with remaining mechanical life of 5–10 years, retrofitting is rarely cost-justified. Decommissioning eliminates a capital asset that may still carry significant production value. Sourcing the original board — when available — is the only option that preserves the existing investment without engineering disruption.

DriveKNMS specializes in locating and supplying exactly this category of component: boards that are no longer manufactured, no longer stocked by the OEM, and increasingly difficult to find through standard distribution channels.

Condition & Reliability Assurance

All IO 502/5088020 units processed by DriveKNMS undergo a structured 5-step inspection protocol before dispatch:

• Step 1 – Visual Inspection: Full board examination for physical damage, burn marks, cracked solder joints, and corrosion on connector pins and edge contacts.
• Step 2 – Electrolytic Capacitor Assessment: Identification and testing of all electrolytic capacitors for ESR (Equivalent Series Resistance) degradation — the primary failure mode in boards of this age. Aged capacitors are replaced with specification-matched components.
• Step 3 – Firmware / EPROM Verification: Where applicable, onboard firmware chips are read and verified against known-good reference images to confirm the correct version is present and uncorrupted.
• Step 4 – Connector and Pin Integrity Check: All edge connectors and board-to-board connectors are inspected for oxidation, bent pins, and contact resistance. Cleaning and re-tinning performed where required.
• Step 5 – Functional Bench Test: Where test fixtures are available for the IO 502/5088020, the board is powered and signal paths are verified prior to packaging.

Units that do not pass all five steps are not offered for sale. Condition grade (New Old Stock or Refurbished) is disclosed on the invoice.

Key Features for System Maintenance

• Drop-in replacement: The IO 502/5088020 installs directly into the existing board slot. No mechanical modification to the machine cabinet is required.
• No reprogramming required: Machine parameters, mold data, and process recipes stored in the MC5/MC6 control system are unaffected by a board swap. Production resumes from the existing configuration.
• No control system re-engineering: Unlike a full retrofit, replacing this board does not require PLC re-programming, HMI reconfiguration, or safety system re-validation — eliminating weeks of engineering labor and the associated costs.
• Extends asset life by 5–10 years: For machines with sound mechanical condition, a verified spare board can defer a capital replacement decision by a full operational cycle, preserving depreciation value and avoiding unplanned capital expenditure.
• Immediate dispatch available: For in-stock units, DriveKNMS can ship within 24–48 hours to minimize production downtime.

FAQ

Q: What warranty applies to an obsolete part like the IO 502/5088020?
A: DriveKNMS provides a 90-day warranty on all refurbished units covering functional failure under normal operating conditions. New Old Stock units carry a 30-day inspection warranty. Warranty terms are confirmed in writing at the time of order.

Q: How do I know the unit is genuine and not a counterfeit?
A: All boards are sourced from decommissioned OEM equipment or verified surplus channels. Board markings, PCB revision codes, and component date codes are checked for consistency. We do not source from unverified secondary markets.

Q: Should I purchase more than one unit as a long-term spare?
A: For facilities operating multiple Krauss Maffei MC5/MC6 machines, holding a minimum of one spare IO 502/5088020 per production line is a standard risk mitigation practice. As global inventory of this board continues to deplete, lead times for sourcing will increase. Procurement now, while stock exists, is the lower-cost option compared to emergency sourcing during a production stoppage.
