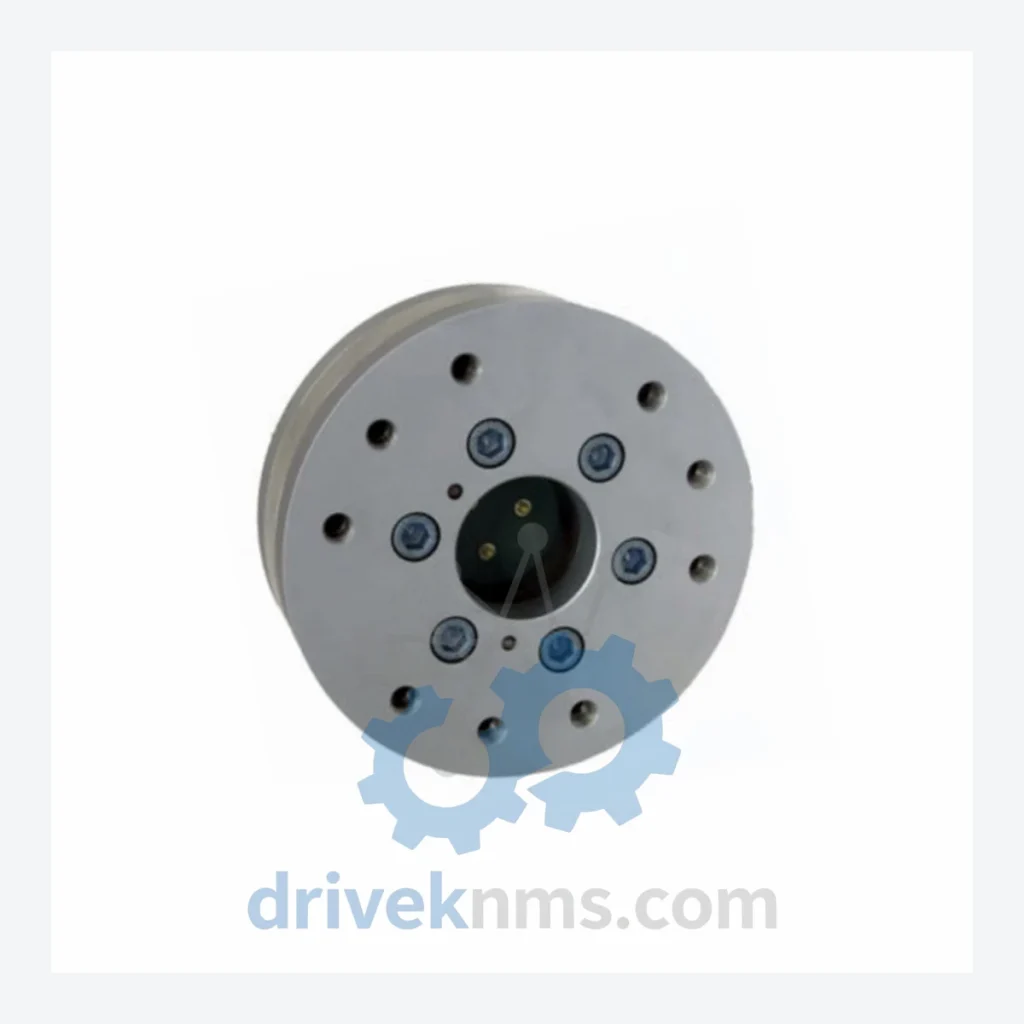

KUKA 00-287-202 9105-ECAT-AXlA80-ZD1 Gearbox – Obsolete KR C Series Spare Part

A single failed gearbox on a KUKA robot arm does not just halt one machine — it can shut down an entire automated production cell. For facilities running legacy KUKA KR C2 or KR C4 controller-based lines, the mechanical drivetrain components that were engineered into those systems are no longer manufactured to order. When the 00-287-202 / 9105-ECAT-AXlA80-ZD1 gearbox fails, the path of least resistance — a full robot replacement or line retrofit — carries a capital expenditure that routinely exceeds several hundred thousand USD per axis, before factoring in integration engineering, downtime, and revalidation costs. DriveKNMS holds verified physical stock of this unit. That stock is finite. Procurement teams that wait until failure occurs will negotiate from a position of zero leverage.

Technical Specifications

Note: Electrical and torque parameters are not published here to prevent misapplication. Verified specifications are provided upon confirmed inquiry with axis configuration details.

Solving the Discontinued Hardware Crisis

KUKA's KR C-series robots were deployed extensively across automotive body shops, foundry handling lines, and heavy-payload palletizing cells throughout the 2000s and 2010s. The mechanical gearboxes on these platforms — particularly the axis-specific units like the AXlA80-ZD1 configuration — are precision-machined components with no direct cross-manufacturer substitute. The gear ratio, mounting flange geometry, and encoder interface are all axis-specific. Substituting an incompatible unit requires mechanical re-engineering of the arm structure, controller parameter reconfiguration, and full safety re-certification — a process that typically takes 3 to 6 months and costs more than the original robot's residual book value.

For plant engineering teams managing 10- to 20-year-old KUKA installations, the calculus is straightforward: a verified OEM-equivalent gearbox spare, sourced and held on-site, converts a potential 6-month production crisis into a 2-day maintenance event. The 00-287-202 unit is the mechanical heart of the affected axis. There is no workaround that does not involve it.

How to Extend Automation Asset Life by 5–10 Years: A Maintenance Strategy for Plant Management

Facilities that have sustained KUKA KR C-series lines beyond their nominal service life share a common operational discipline. The following practices are drawn from industrial maintenance frameworks applicable to legacy robot fleets:

• Critical Spare Inventory (CSI) Protocol: Identify the 3–5 mechanical and electronic components with the longest lead time and lowest market availability. The 00-287-202 gearbox qualifies. Holding one unit per robot model variant eliminates the single largest unplanned downtime risk. The carrying cost of a spare gearbox is a fraction of one day of line stoppage.
• Condition-Based Gearbox Monitoring: Vibration signature analysis on the axis drive, combined with periodic backlash measurement, provides 6–18 months of advance warning before catastrophic gearbox failure. This window is sufficient to source obsolete parts through specialist distributors.
• Firmware and Controller Preservation: KR C2 controller firmware versions are no longer supported by KUKA. Maintaining a verified backup of the robot's controller image — including axis-specific mastering data — ensures that a gearbox replacement does not become a full controller recovery event.
• Scheduled Lubrication and Seal Inspection: The majority of premature gearbox failures in legacy KUKA arms are attributable to lubricant degradation and seal failure, not gear wear. A 2-year lubrication cycle using the OEM-specified grease type extends gearbox service life significantly.
• Vendor Qualification for Obsolete Parts: Not all aftermarket sources for discontinued KUKA components maintain traceability documentation. Require a test report, condition grading, and serial number verification before accepting any critical drivetrain component.

A plant that implements these five practices on a KUKA KR C-series fleet can realistically defer a capital replacement decision by 5 to 10 years — at a total maintenance cost that is 10 to 20 percent of a new robot procurement program.

Condition & Reliability Assurance

Every 00-287-202 / 9105-ECAT-AXlA80-ZD1 unit shipped by DriveKNMS passes a structured 5-step inspection protocol before dispatch:

1. Electrolytic Capacitor Assessment: Internal capacitors are inspected for bulging, leakage, and ESR deviation. Units with degraded capacitors are recapped with equivalent-rated components before release.
2. Firmware Version Verification: Where embedded firmware is present in associated drive electronics, version compatibility with KR C2 and KR C4 controller generations is confirmed.
3. Pin and Connector Corrosion Inspection: All interface connectors are inspected under magnification for oxidation, fretting corrosion, and contact deformation. Affected contacts are treated or replaced.
4. Mechanical Backlash and Rotation Test: The gearbox is rotated through its full range under load simulation to verify backlash is within OEM tolerance and rotation is smooth without binding or irregular resistance.
5. Final Documentation Package: Each unit ships with a condition report, inspection checklist, and available traceability data (serial number, manufacturing batch where legible).

Key Features for System Maintenance

• Drop-in Replacement: The 00-287-202 unit retains the original mounting geometry and interface specifications. Installation does not require mechanical modification of the robot arm structure.
• No Reprogramming Required: Axis mastering is required after any gearbox replacement as standard procedure, but no controller software changes or parameter reconfiguration are needed when replacing like-for-like.
• Avoids Engineering Retrofit Costs: Using the correct OEM-equivalent part eliminates the need for mechanical re-engineering, safety re-certification, and the associated 3–6 month project timeline that a non-equivalent substitution would trigger.
• Supports Extended Asset Life: A single verified spare unit, installed correctly, restores the axis to full rated performance and resets the mechanical service clock on that drivetrain.

FAQ

Q: What warranty applies to a discontinued gearbox unit?
A: DriveKNMS provides a 90-day functional warranty on all refurbished units and a 180-day warranty on verified New Old Stock (NOS) units. Warranty covers mechanical function under normal operating conditions and excludes damage from incorrect installation or operation outside rated parameters.

Q: How do I confirm the unit is genuine and not a counterfeit?
A: We provide serial number documentation, physical inspection photos, and a condition grading report with every shipment. For NOS units, original KUKA packaging is retained where available. We do not source from unverified secondary markets.

Q: Should I buy more than one unit as a long-term reserve?
A: For facilities operating multiple KUKA robots of the same model, holding 2–3 units of this gearbox is a defensible asset protection decision. Market availability of this part will not improve over time. Each unit that leaves the secondary market permanently reduces the pool available to all operators of this platform.

Q: Can this unit be used on a different KUKA robot model?
A: The 9105-ECAT-AXlA80-ZD1 designation is axis- and model-specific. Application to a different robot model requires engineering verification. Contact us with your robot serial number and we will confirm compatibility before shipment.

© 2026 DriveKNMS. All trademarks belong to their respective owners. Specifications are for reference only and subject to change without notice. Verify all parameters against official documentation before installation.
