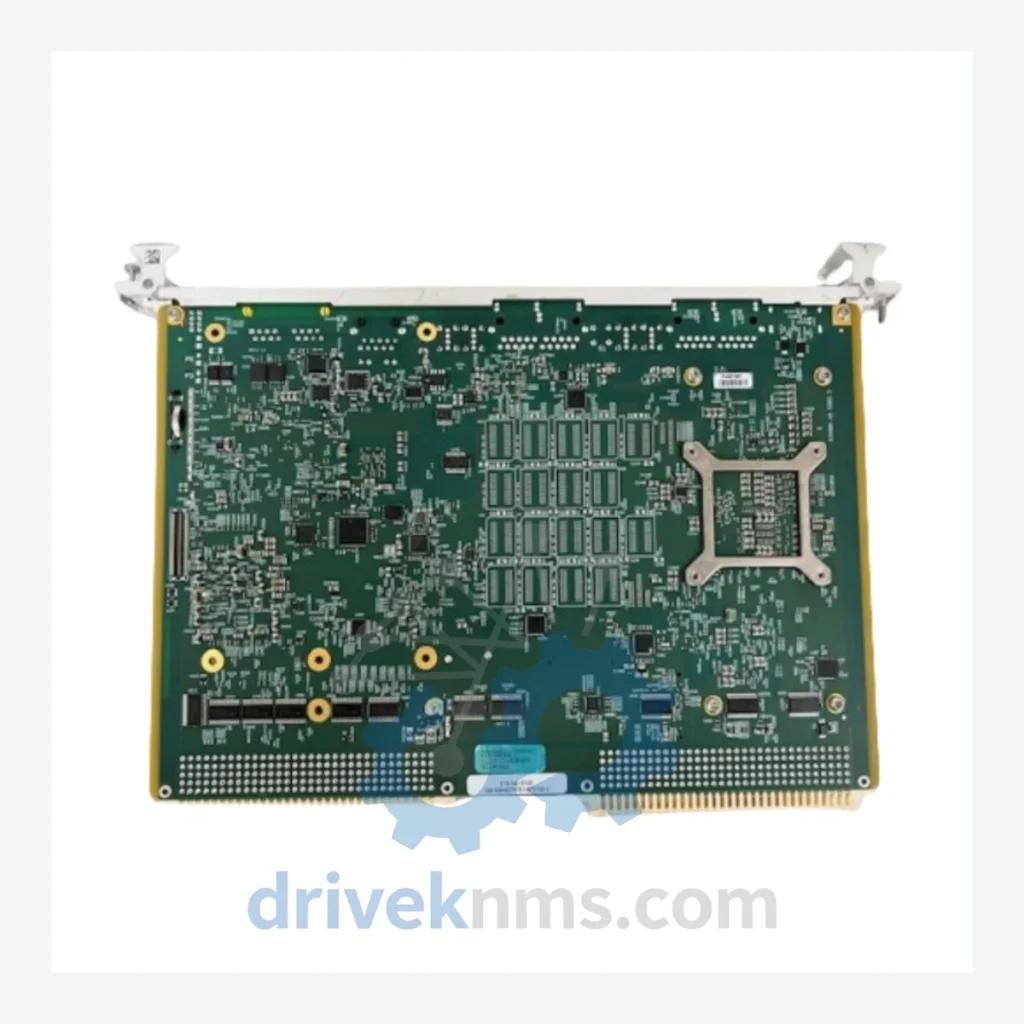

Lam Research 605-A02119-001 SBC Board – Obsolete Semiconductor Equipment Spare Part

Technical Dossier

Product Details And Specifications

Lam Research 605-A02119-001 SBC Board – Obsolete Semiconductor Equipment Spare Part

When a Single Board Computer (SBC) module fails inside a Lam Research etch or CVD platform, the consequences extend far beyond a line-item repair cost. A full system retirement triggered by one unavailable board can force capital expenditure in the range of $2–8 million USD for equivalent replacement equipment — not counting the engineering hours, process requalification, and production downtime that follow. The Lam Research 605-A02119-001 SBC Board has been discontinued by the OEM. DriveKNMS maintains verified stock of this module specifically to protect facilities that cannot afford an unplanned system retirement.

Technical Specifications

Note: Electrical parameters specific to this board are not published here to prevent misapplication. Contact our technical team for specification verification against your system configuration.

Solving the Discontinued Hardware Crisis

Lam Research semiconductor processing platforms built in the late 1990s through the 2010s remain in active production at fabs worldwide. The control architecture in these systems relies on proprietary SBC modules — boards that coordinate process recipes, chamber diagnostics, and real-time fault management. The 605-A02119-001 is one such module: purpose-built for a specific hardware generation, with no direct commercial off-the-shelf substitute.

When Lam Research discontinued this part, facilities running affected tools were left with three options: carry sufficient spare inventory, source from the secondary market, or retire the tool. For fabs operating on mature nodes — where the economics of running fully depreciated equipment are compelling — tool retirement is rarely the rational choice. A single 300mm etch chamber generating $15,000–$40,000 per day in wafer throughput cannot be idled because a $3,000 board is unavailable.

The secondary market for this module has tightened considerably. Facilities that did not build strategic spares inventory during the OEM's active production window are now competing for a finite pool of units. DriveKNMS sources, inspects, and holds verified stock of the 605-A02119-001 to serve facilities that need a reliable supply chain for this specific module.

How to extend your Lam Research system's productive life by 5–10 years through targeted spare parts strategy:

• Identify your single points of failure. Map every board and module in your system that is either discontinued or approaching end-of-life. The SBC layer is typically the highest-risk category because it integrates software, firmware, and hardware in a single replaceable unit.
• Establish a minimum two-unit buffer. One unit in service, one unit on the shelf. For high-utilization chambers running 24/7, a three-unit buffer is the industry standard among facilities with mature asset protection programs.
• Document firmware versions before any swap. SBC boards carry firmware that must match the system's recipe management software. Confirm version compatibility before installation to avoid process drift or system faults.
• Schedule proactive replacement, not reactive repair. A board that has been in service for 10+ years carries elevated failure risk regardless of current performance. Planned replacement during scheduled maintenance windows costs a fraction of an unplanned outage.
• Negotiate long-term supply agreements for critical obsolete parts. Spot-market pricing for discontinued modules increases as supply contracts. Locking in pricing and availability through a specialist distributor protects both budget and operational continuity.

Condition & Reliability Assurance

Obsolete boards sourced from the secondary market carry inherent risk if not properly evaluated. DriveKNMS applies a five-step inspection protocol to every 605-A02119-001 unit before it is offered for sale:

• Step 1 – Electrolytic Capacitor Assessment: Boards of this vintage are susceptible to capacitor aging, electrolyte evaporation, and ESR drift. Each unit undergoes capacitor-level testing. Units with degraded capacitors are either recapped with equivalent-specification components or removed from inventory.
• Step 2 – Firmware Version Verification: The firmware revision is read and documented. Customers receive the firmware version with their order to confirm compatibility with their system's software stack before installation.
• Step 3 – Pin and Connector Inspection: All edge connectors and board-mounted pins are inspected under magnification for oxidation, corrosion, and mechanical deformation. Affected contacts are cleaned or the unit is rejected.
• Step 4 – Functional Power-On Test (where applicable): Units are powered and checked for basic initialization and fault-free startup where test fixtures permit. Results are documented.
• Step 5 – ESD-Safe Packaging and Documentation: Every unit ships in anti-static packaging with a condition report. Traceability documentation is provided on request.

Key Features for System Maintenance

• Drop-in replacement: The 605-A02119-001 installs directly into the original board slot with no mechanical modification to the chassis or backplane.
• No reprogramming required: Provided firmware versions are matched, the board integrates with existing system software without requiring recipe re-entry or process requalification.
• Avoids engineering reconstruction costs: Substituting a non-OEM SBC solution in a Lam Research platform typically requires custom firmware development, hardware adaptation, and process revalidation — costs that routinely exceed $150,000 USD. A verified OEM replacement eliminates this entirely.
• Preserves process qualification status: Facilities operating under IATF 16949, ISO 9001, or semiconductor-specific quality frameworks benefit from maintaining OEM hardware configurations. Substituting non-OEM components can trigger requalification obligations.

FAQ

Q: What warranty applies to a discontinued part like the 605-A02119-001?
A: DriveKNMS provides a 90-day warranty covering functional defects identified under normal operating conditions. Extended warranty terms are available for volume orders — contact us to discuss.

Q: How do I confirm whether a unit is new old stock or refurbished?
A: Each unit's condition is disclosed in writing prior to order confirmation. New Old Stock (NOS) units are unused, original-packaging or equivalent. Refurbished units have completed our five-step inspection protocol and are sold with a condition report. We do not mix condition grades within a single order without explicit customer agreement.

Q: Should I purchase more than one unit?
A: For any system running this board in a production environment, holding at least one spare is the minimum prudent position. Given the contracting secondary market supply for this part number, facilities with multiple affected tools should consider securing a multi-unit reserve now. Availability cannot be guaranteed on future spot inquiries.

Q: Can you source this part if it is not currently in stock?
A: Yes. DriveKNMS maintains an active sourcing network for obsolete semiconductor equipment components. Submit your requirement and we will provide a sourcing timeline and pricing within 3–5 business days.
