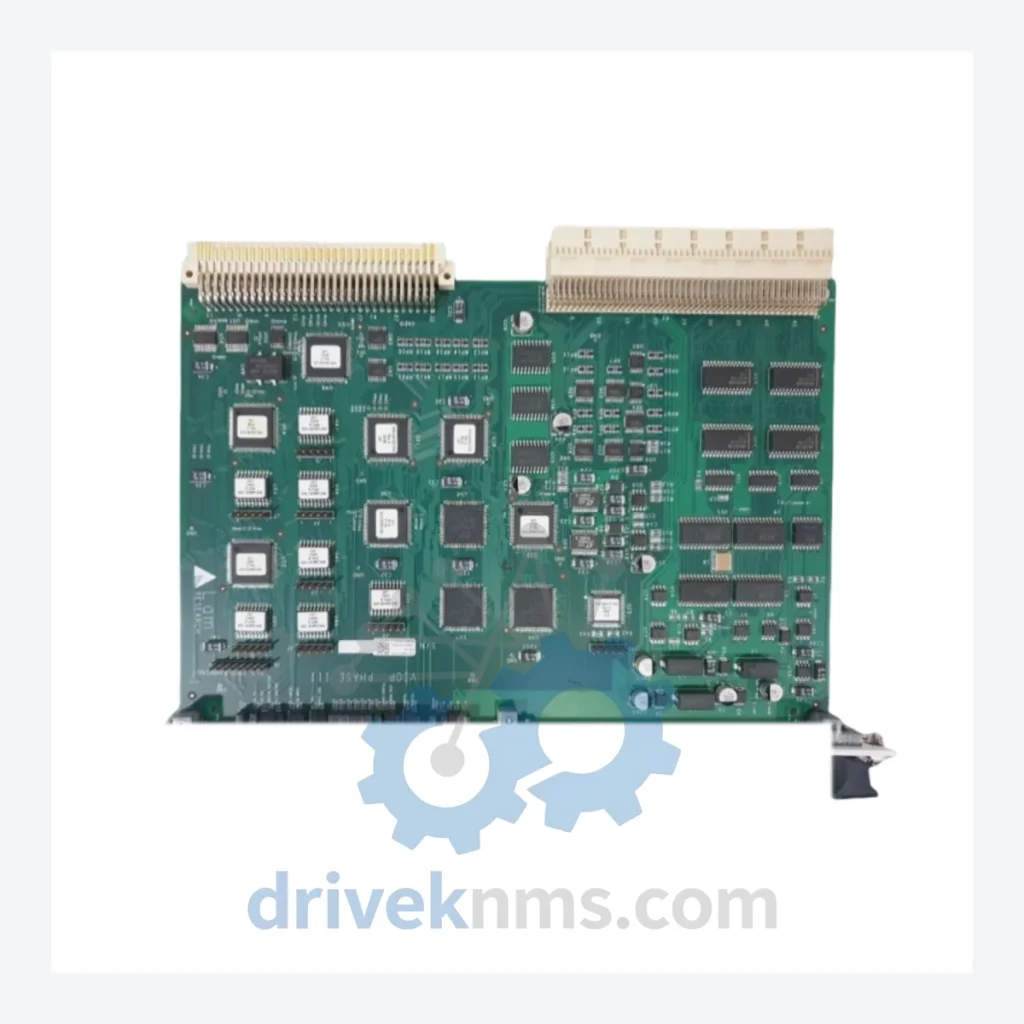

Lam Research 810-046015-009 Power Supply Module – Obsolete Semiconductor Spare Part

Technical Dossier

Product Details And Specifications

Lam Research 810-046015-009 Power Supply Module – Obsolete Semiconductor Spare Part

When a power supply module fails inside a Lam Research etch or CVD system, the clock starts immediately. Unscheduled downtime in a semiconductor fab does not cost hundreds of dollars per hour — it costs tens of thousands. A full platform upgrade triggered by a single discontinued module can run into the millions: new tooling qualifications, process re-certification, operator retraining, and months of reduced wafer output. The 810-046015-009 is no longer in active production. Finding a verified, functional unit from a reliable source is the only path that keeps your existing tool running without that capital exposure.

DriveKNMS maintains allocated stock of hard-to-source Lam Research spare parts specifically to serve fabs and equipment owners who cannot afford to gamble on unverified surplus channels.

Technical Specifications

Note: Electrical parameters are not published here to prevent misapplication. Contact our technical team for full datasheet and compatibility confirmation before ordering.

Solving the Discontinued Hardware Crisis

Lam Research tools installed in the 1990s and 2000s remain in active production at fabs worldwide — running mature nodes, MEMS, power devices, and compound semiconductors where process re-qualification on a new platform is prohibitively expensive. The 810-046015-009 power supply module sits in the power delivery chain of these systems. It is not a commodity component that can be substituted with a generic unit. The firmware handshake, form factor, and connector pinout are specific to the Lam platform architecture.

When OEM support ends, three options exist: (1) scrap the tool and absorb the capital cost of replacement, (2) attempt an unsupported third-party redesign that voids process qualifications, or (3) source verified OEM spare parts from a specialist distributor and extend the tool's productive life by 5 to 10 years at a fraction of the replacement cost. For most fab operators managing mature-node capacity, option three is the only financially defensible choice.

Extending asset life by a decade on a tool with a replacement value of $2–5M USD means the cost of a single verified spare part — even at a premium — represents a return on investment that no capital budget committee can reasonably reject. The constraint is supply, not economics. That is the problem DriveKNMS exists to solve.

Condition & Reliability Assurance

Obsolete parts sourced from the open market carry real risk. Age-related failure modes in power electronics are predictable and inspectable — if the inspection is actually performed. Our 5-step QA process for units in this category:

Step 1 – Electrolytic Capacitor Audit: Capacitors are the primary age-related failure point in power supply modules. Each unit is inspected for bulging, leakage, and ESR deviation. Units with suspect capacitors are recapped with equivalent-spec components before leaving our facility.

Step 2 – Firmware Version Verification: Where applicable, firmware revision is confirmed against known-compatible versions for the target platform. Mismatched firmware is a common cause of intermittent faults that are difficult to diagnose in the field.

Step 3 – Pin and Connector Inspection: All connectors are inspected under magnification for corrosion, fretting wear, and mechanical damage. Corroded contacts are cleaned or the connector assembly is replaced.

Step 4 – Functional Bench Test: The module is powered and tested under load conditions representative of normal operation. Output voltages, ripple, and protection circuit response are verified.

Step 5 – Documentation and Traceability: Each unit ships with an inspection record. Serial number, test results, and condition grade are documented for your maintenance records.

Key Features for System Maintenance

The 810-046015-009 is a direct OEM replacement. It installs into the existing tool without mechanical modification, wiring changes, or software reconfiguration. There is no engineering rework cost. There is no process re-qualification triggered by a hardware substitution. The tool returns to its validated operating state.

For maintenance engineers managing aging Lam Research assets, this matters: every non-OEM substitution in a power delivery path introduces variables that must be characterized and documented. An OEM replacement eliminates that burden entirely. The tool runs. The process stays qualified. The fab stays productive.

For plant managers evaluating the cost of keeping legacy tools in service versus retiring them, the calculation is straightforward. A verified spare part at a few thousand dollars versus a tool replacement at several million — with all the associated qualification downtime — is not a close decision. The constraint has always been finding the part, not justifying the purchase.

FAQ

Q: What warranty applies to an obsolete part like this?
A: We provide a 90-day functional warranty on all refurbished units and a 30-day warranty on New Old Stock units. Warranty covers failure under normal operating conditions and excludes damage from installation error or system faults external to the module.

Q: How do I know the unit is genuine OEM and not a counterfeit?
A: All units are sourced through traceable channels — decommissioned tools, authorized surplus, and verified distributor stock. Physical markings, PCB revision, and component population are cross-referenced against known-authentic references. We do not source from anonymous brokers.

Q: Should I buy more than one unit as a long-term reserve?
A: For any tool where this module is a single point of failure and no alternative sourcing exists, holding at least one cold spare is standard practice. For high-utilization tools or multi-tool fabs running the same platform, a reserve of two to three units is a reasonable asset protection position. Stock of this part number is finite and will not be replenished by the OEM.

Q: Can you confirm compatibility with my specific tool configuration before I order?
A: Yes. Provide your tool serial number and BOM revision and our technical team will confirm compatibility before you commit to a purchase.
