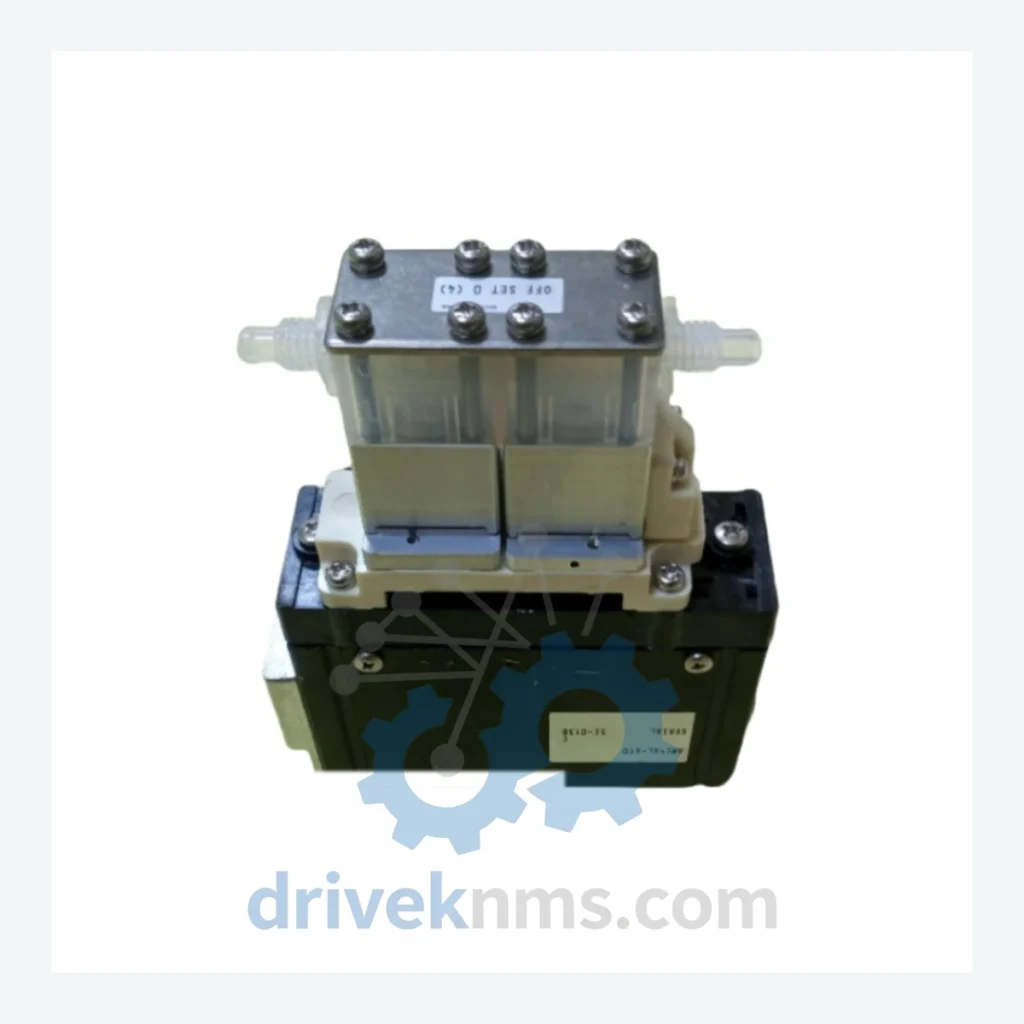

LAM Research X10-14210100 Power Supply Module – Obsolete X10 Series Spare Part

Technical Dossier

Product Details And Specifications

LAM Research X10-14210100 Power Supply Module – Obsolete X10 Series Spare Part

DriveKNMS maintains sourced inventory of the X10-14210100 for fabs and equipment owners who cannot afford to treat a discontinued module as a reason to retire a productive tool prematurely.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Specific electrical parameters (voltage rails, current ratings, connector pinout) vary by tool configuration. DriveKNMS will provide verified datasheet excerpts upon request. No parameters are published here that cannot be confirmed against original LAM documentation.

Solving the Discontinued Hardware Crisis

LAM Research's X10-series tools were deployed extensively in 200mm and early 300mm fabs during a period when process stability and throughput were the primary engineering priorities. Many of these tools remain in production today — running mature nodes for MEMS, power devices, analog ICs, and compound semiconductors — precisely because the process recipes they run have been qualified over years and are not easily transferred to newer platforms.

The X10-14210100 power supply module sits in the power distribution architecture of these tools. Its failure mode is not gradual degradation visible in process data; it tends to manifest as an abrupt interlock trip or an unrecoverable fault state. At that point, the fab faces a binary choice: source a replacement module or begin the expensive, disruptive process of tool retirement and platform migration.

LAM Research discontinued the X10 series, and OEM support channels for this part number are closed. The secondary market — specifically, suppliers who have invested in locating, testing, and holding RFQ-reviewed sourcing status — is the only remaining supply path. Fabs that have not pre-positioned spare modules are entirely dependent on spot availability at the time of failure.

Extending Automation Asset Life by 5–10 Years: A Maintenance Strategy for Legacy Semiconductor Tools

The decision to retire a process tool is rarely driven by the tool's inability to perform its core function. It is almost always driven by the inability to source a specific failed component. This is the maintenance trap that legacy tool owners must plan around deliberately.

Condition & Reliability Assurance

DriveKNMS applies a 5-step qualification process to all power supply modules sourced for the secondary market. This process is designed specifically for the failure modes that accumulate in modules that have been in storage or removed from service.

Step 1 – Electrolytic Capacitor Assessment: Electrolytic capacitors are the primary aging component in power supply modules. Each unit is inspected for physical signs of capacitor stress (bulging, electrolyte leakage) and, where test access permits, capacitance and ESR are measured against original specification tolerances.

Step 2 – Firmware and Configuration Verification: Where the module contains programmable elements, firmware version is confirmed against the revision history applicable to X10-series tool configurations. Mismatched firmware versions are a known source of compatibility failures in the field.

Step 3 – Connector and Pin Integrity Inspection: All connector interfaces are inspected under magnification for pin corrosion, fretting damage, and mechanical deformation. Corroded contacts are the second most common cause of intermittent faults in stored modules.

Step 4 – Functional Power-On Test: Modules are powered and output parameters are verified under controlled conditions prior to shipment.

Step 5 – Documentation and Traceability: Each unit is shipped with an inspection record. Lot traceability is maintained for all sourced inventory.

Key Features for System Maintenance

The X10-14210100 is a direct form-fit-function replacement for the original module position in X10-series tools. Installation does not require modification of the tool's electrical architecture, control software, or process recipes. There is no re-programming requirement and no engineering change order process triggered by a like-for-like module swap.
